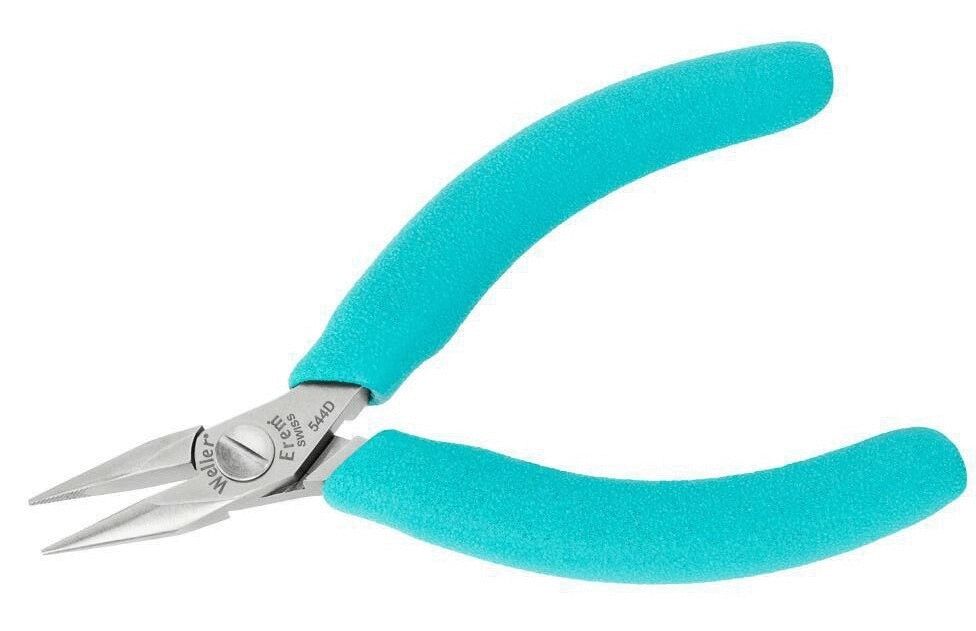

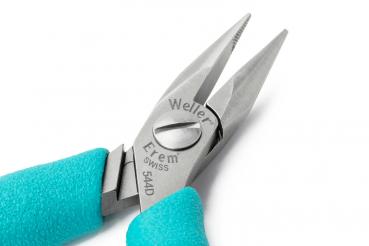

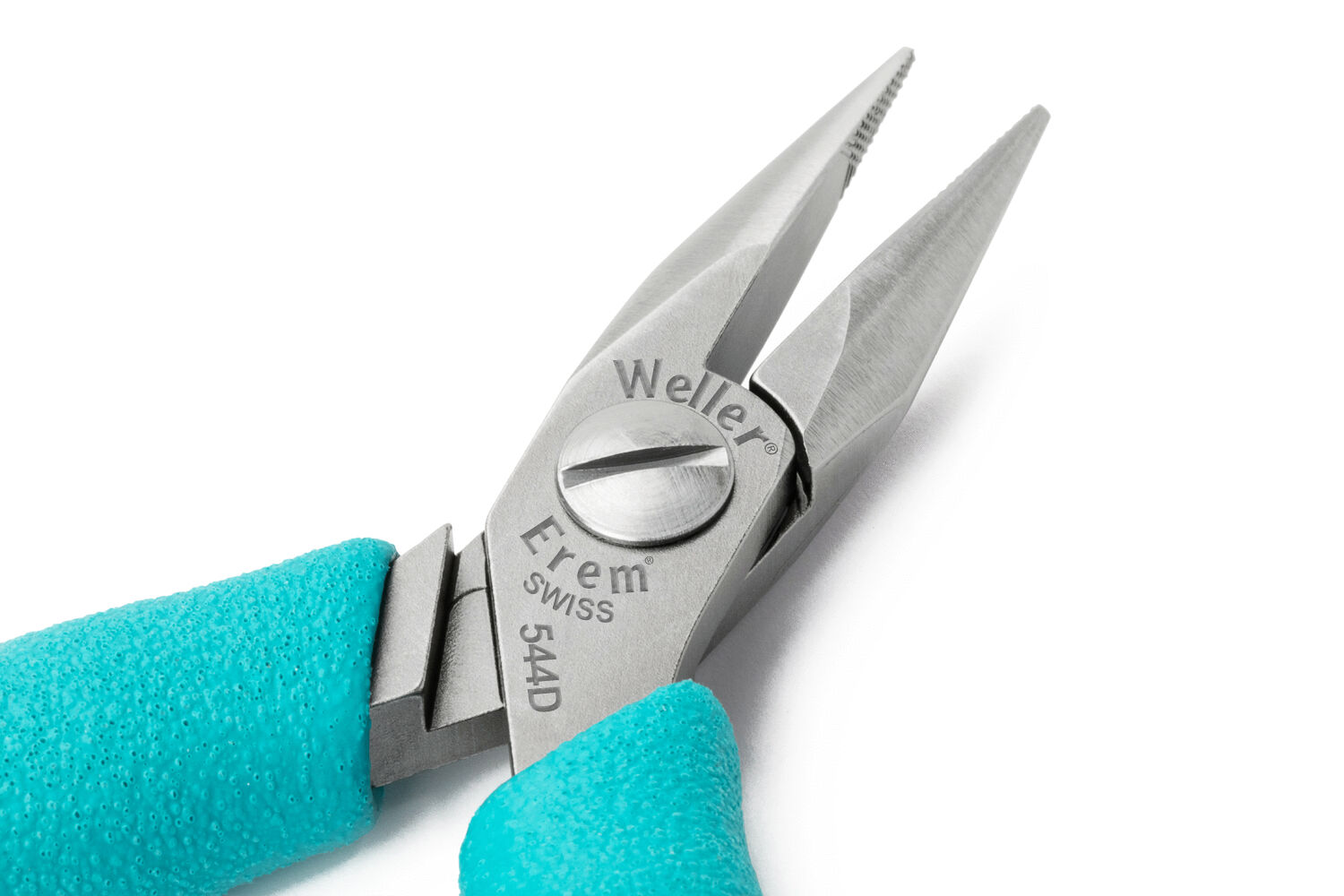

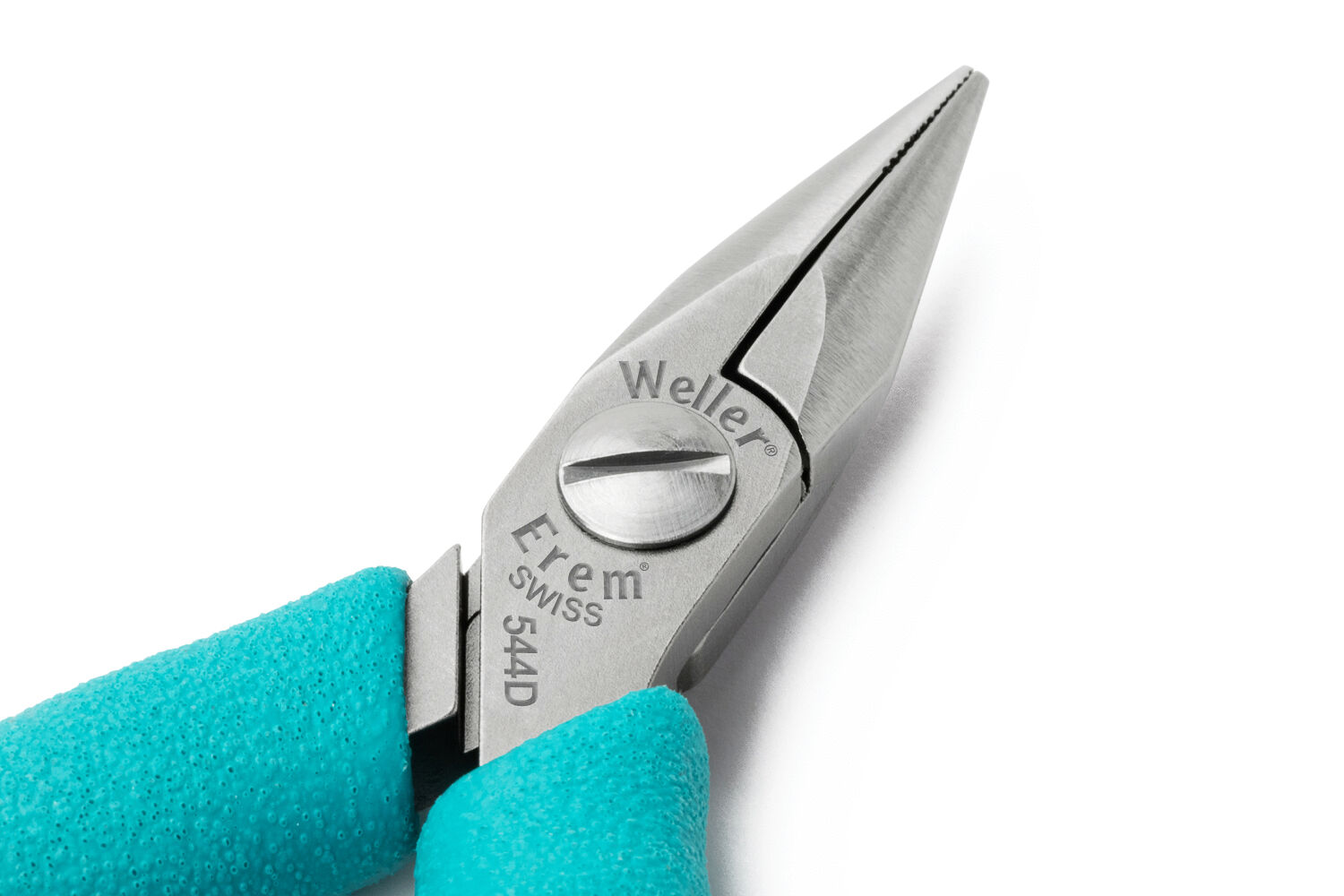

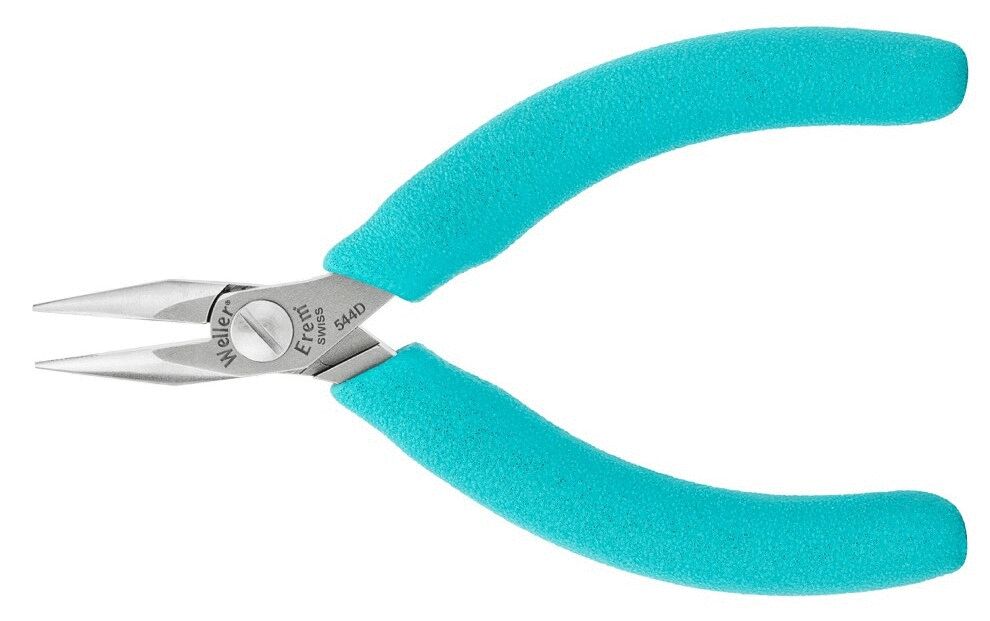

The 544D bending pliers from Weller Erem™ represent Swiss precision manufacturing and are specifically designed for demanding gripping and bending applications in electronics assembly and healthcare. This tool combines durable materials with advanced technology to ensure a long service life and optimal functionality. The pliers feature a patented opening system with invisibly integrated springs, which minimizes injury risks and enhances durability. Additionally, the double self-locking screw joint provides an extended range of motion and effectively reduces wear. The ESD-safe standard handles meet MIL-Standard with a transition resistance between 10^5 and 10^9 Ohm. Another feature is the "Stop! Limit system" that prevents the crossing of the blades. An optional wire holder is available, which reduces the risk of eye injuries and assembly damage from uncontrolled cutting debris.
Technical Specifications:
- Plier Type: Bending Pliers
- Length: 120 mm
- A: 23 mm
- C: 6.0 mm
- B: 11.0 mm
- Gripping Surface: serrated
- Cut: with cut
The pliers are ideal for use in fine and standard electronics and offer a non-reflective surface for precise work.
Details
- Type of pliers Type of pliers
- Bending pliers
- Length [mm] Length [mm]
- 120
- A [mm] A [mm]
- 23
- C [mm] C [mm]
- 6.0
- B [mm] B [mm]
- 11.0
- Gripping surface Gripping surface
- serrated
- Cut Cut
- with cut
High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
