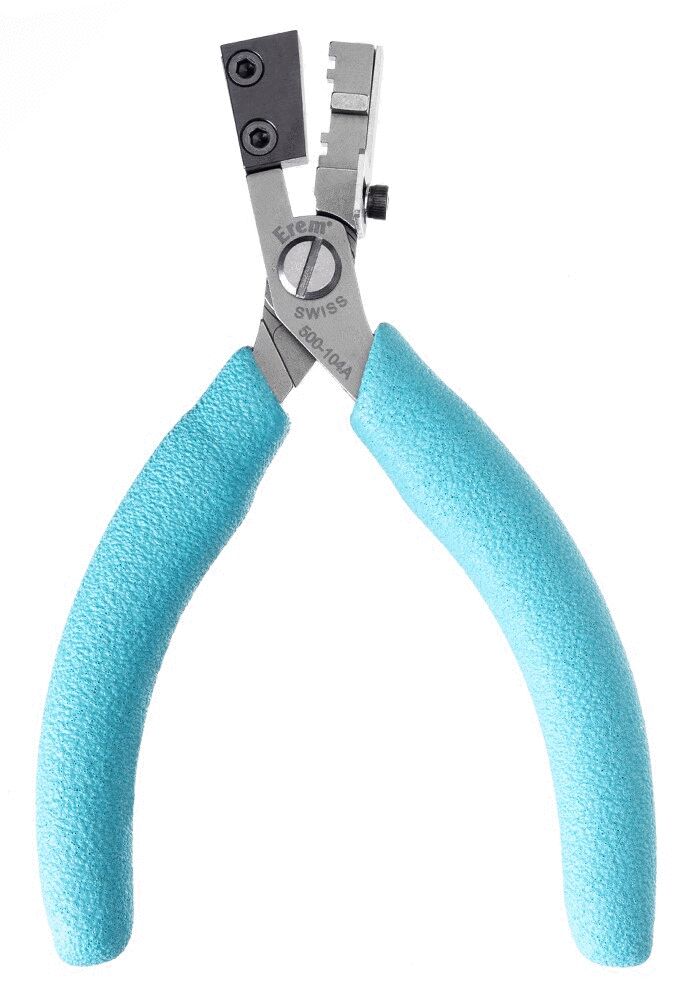

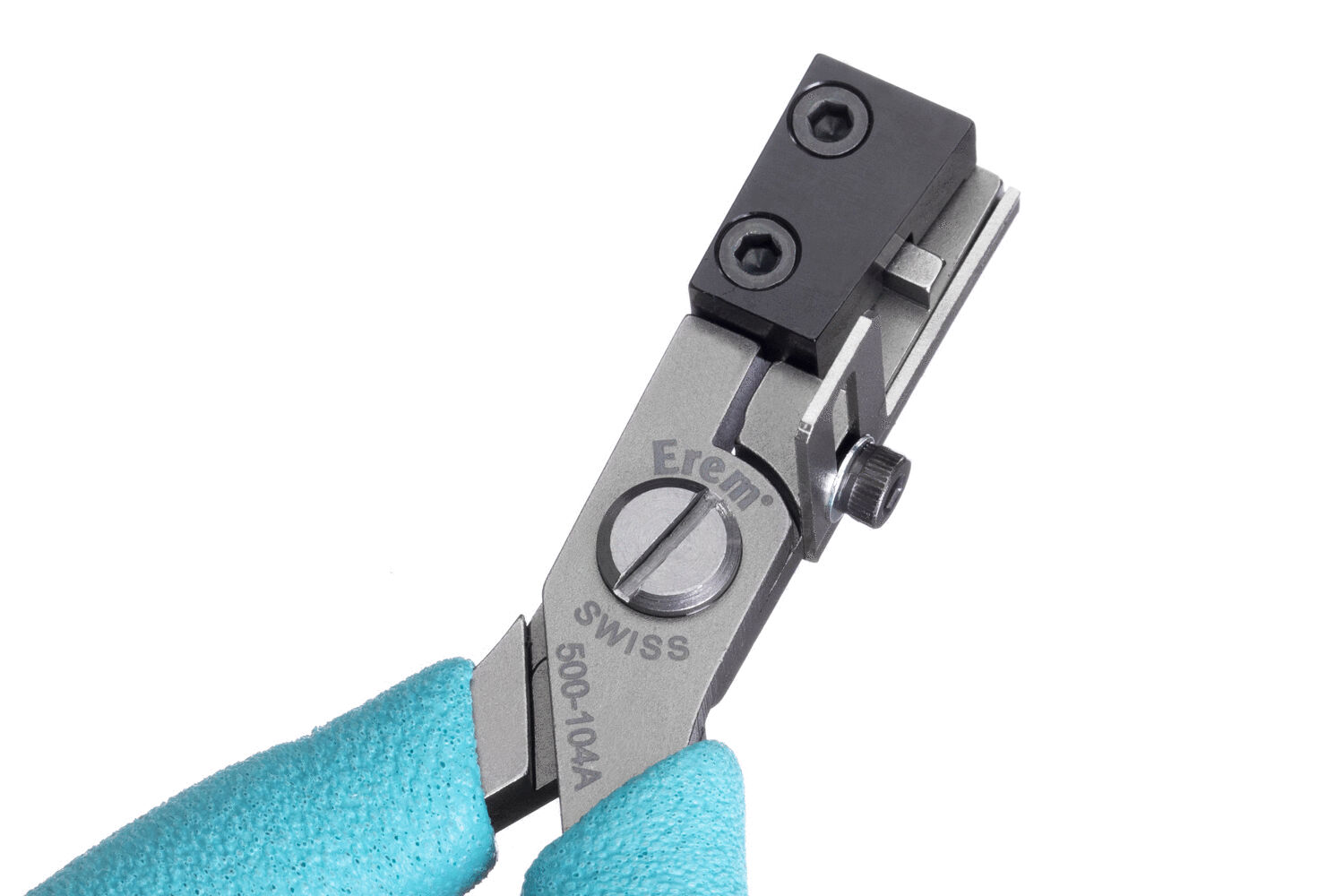

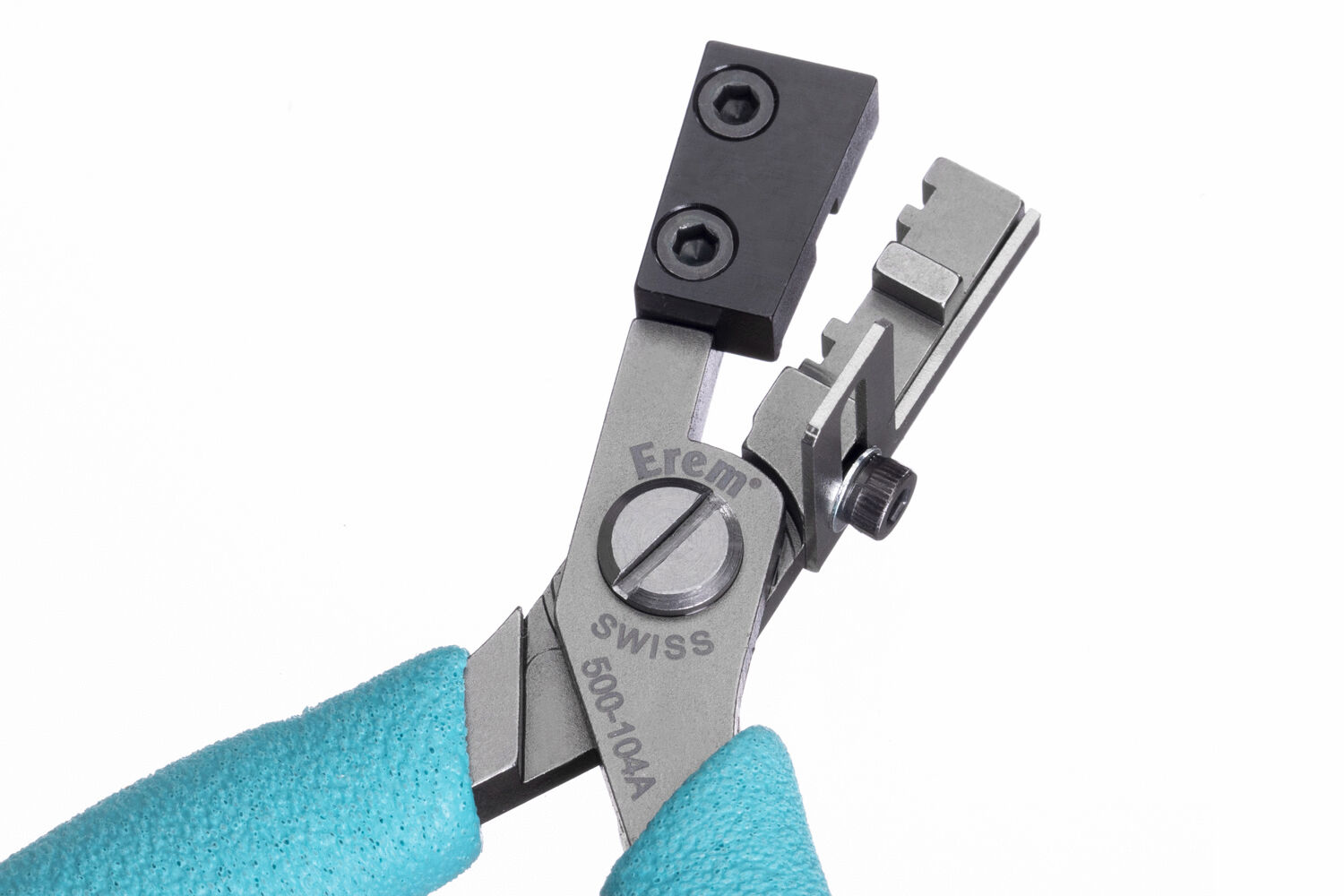

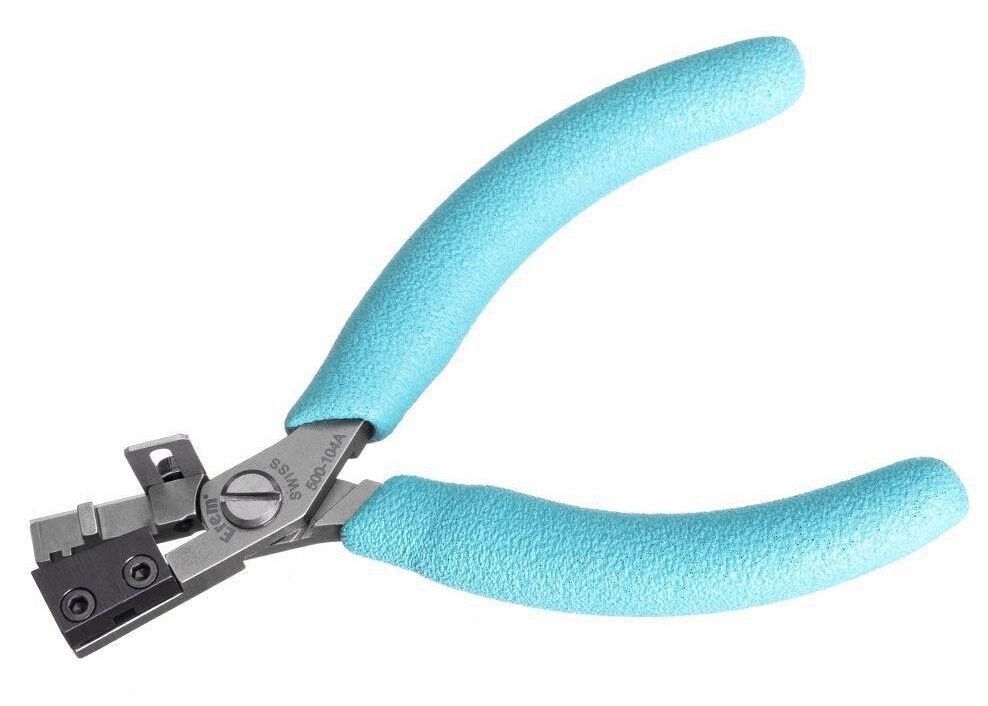

This high-precision forming pliers, model 500-104A, is excellent for bending at 90° on two rows of components from the TO 126, 218, 220 series and power transistors with three terminals. It ensures safe bending, shaping, and preparing of component terminals, specifically for integrated components and power transistors. The pliers feature a non-reflective surface and are ESD-safe, with a transition resistance between 105 and 109 Ohm according to MIL standard.
The adjustment is easily done via a screw, allowing for optimal adaptation to various component sizes. A double self-locking screw joint with a large motion area minimizes wear, while the patented opening system integrates the springs invisibly, thus presenting no risk of injury and simultaneously ensuring durability. The Stop! limit system prevents the crossing of the blades.
Technical Specifications:
- Length: 120 mm
- Width: 13.0 mm
- Span: 3.5-15.0 mm
- Thickness: 2.54 mm
- Material: ESD-safe design
- Surface finish: Non-reflective
- Adjustability: Via screw.
Details
- Type of pliers Type of pliers
- Forming pliers
- Length [mm] Length [mm]
- 120
- B [mm] B [mm]
- 13.0
- A [mm] A [mm]
- 3.5-15.0
- E (mm] E (mm]
- 2.54
High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
