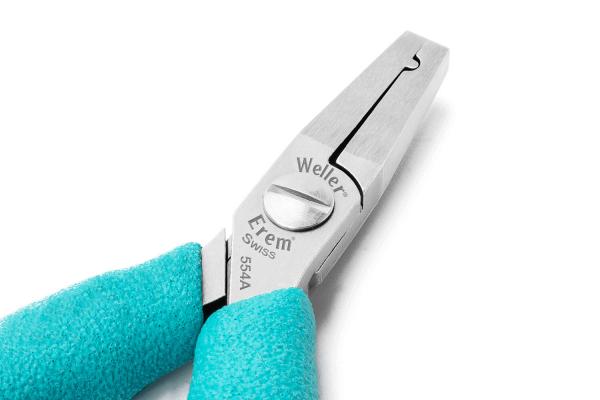

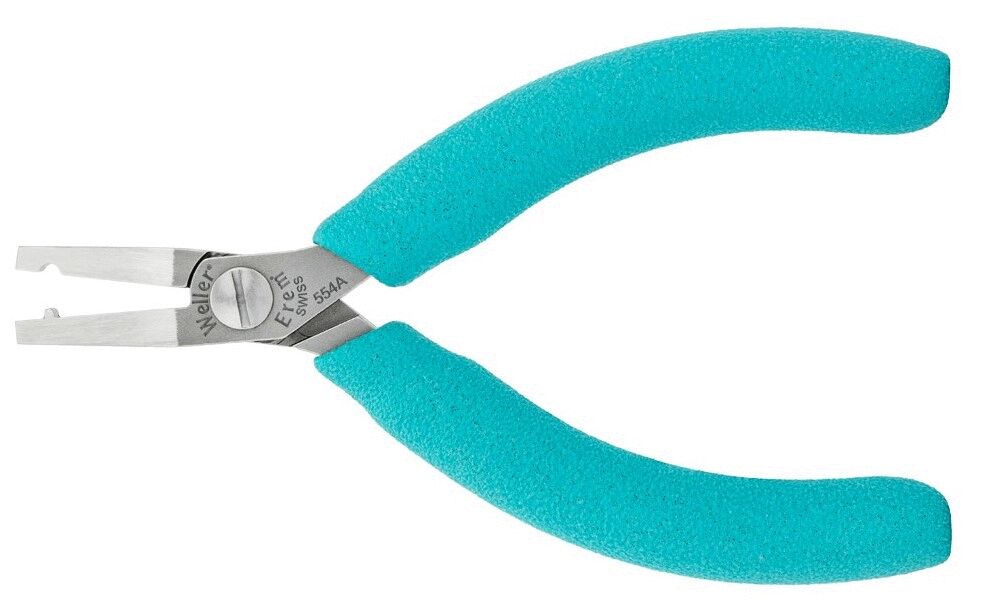

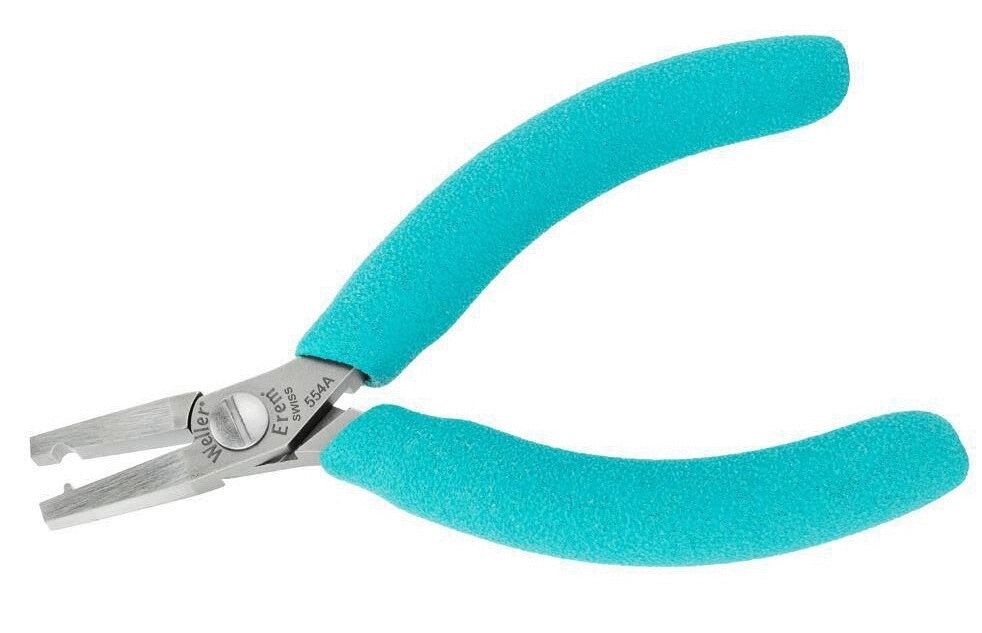

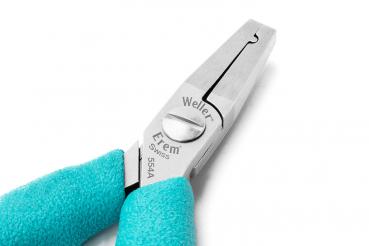

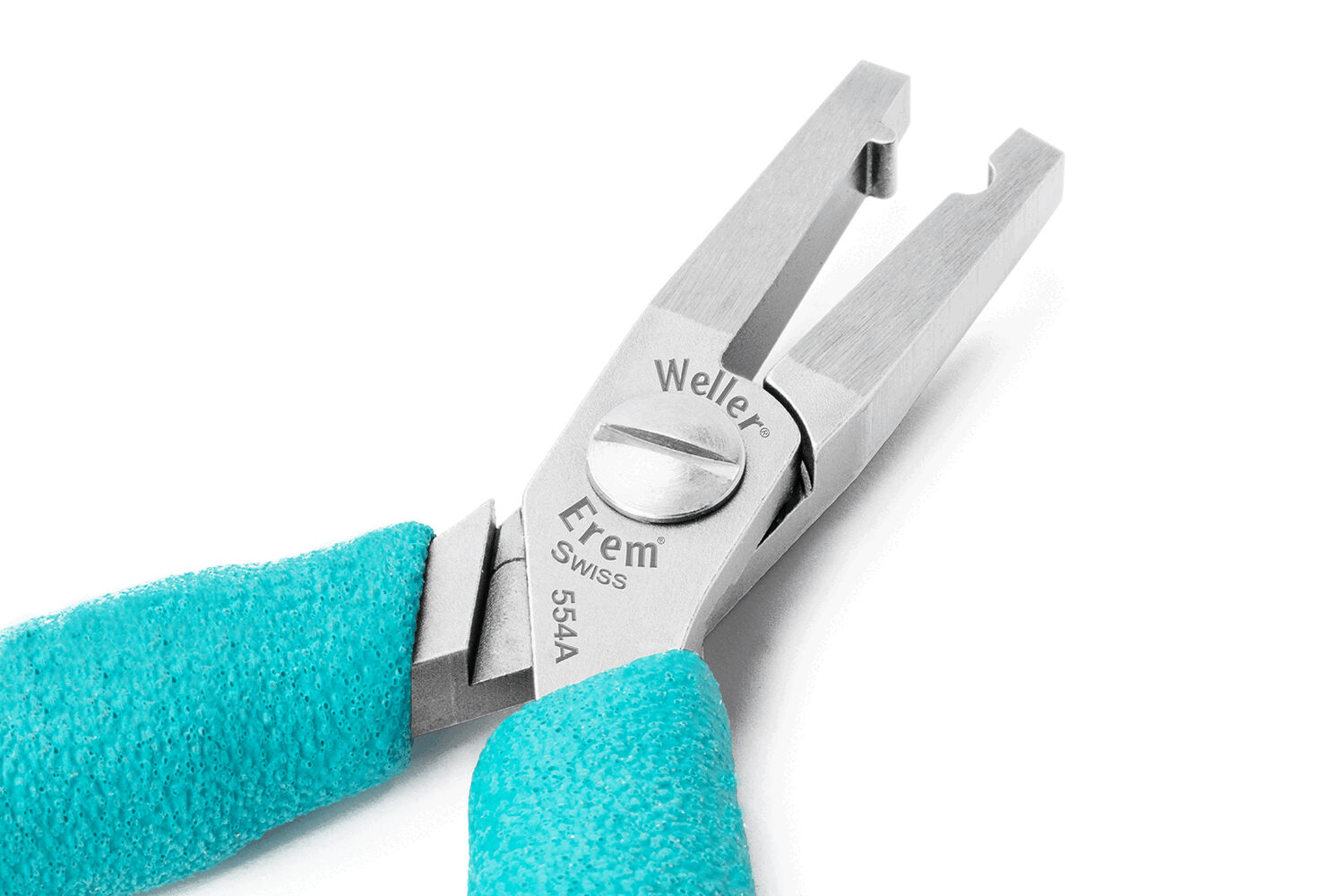

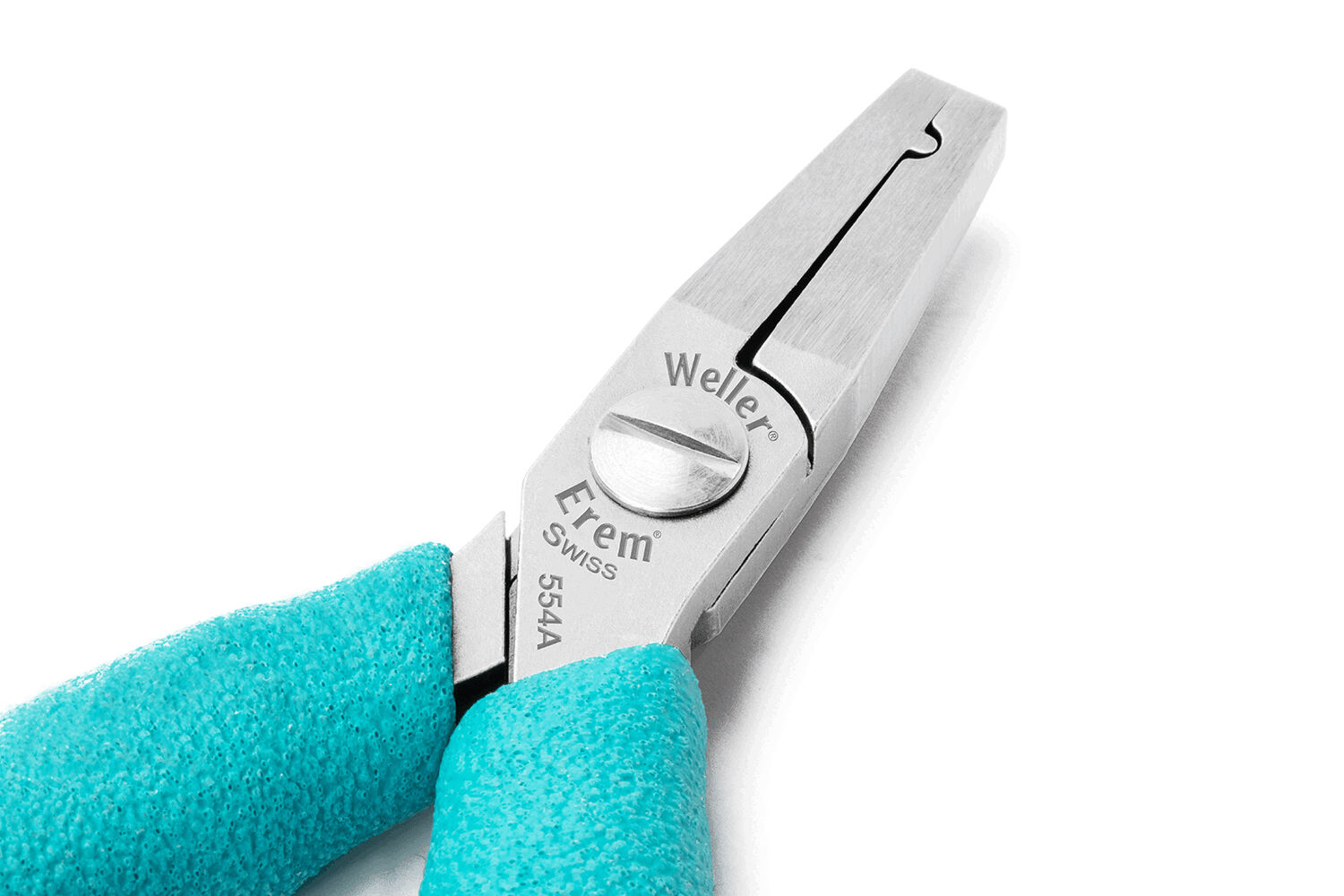

The Molding Tool 554A is a high-precision forming pliers measuring 120 mm in length, ideal for technical applications where precision and ESD safety are required. The pliers feature a double self-locking screw joint that minimizes wear and offers a large range of motion. The patented opening system integrates the springs invisibly, thereby eliminating injury risks and improving longevity and replaceability. The ESD-safe standard handles ensure a transition resistance between 10^5 and 10^9 Ohm according to MIL standard. A special Stop! limit system prevents the crossing of blades, which additionally contributes to longevity. An optional wire holder protects against eye injuries and damage to assemblies from uncontrolled cutting debris. The pliers are universally applicable to hard and soft steel wires as well as soft materials like copper wire and cables.
Technical Specifications:
- Pliers Type: Forming Pliers
- Length: 120 mm
- A [mm]: 23.0
- C [mm]: 4.0
The narrow head shape is particularly suitable for component connections, U-shape, and axial forms.
Details
- Type of pliers Type of pliers
- Forming pliers
- Length [mm] Length [mm]
- 120
- A [mm] A [mm]
- 23.0
- C [mm] C [mm]
- 4.0
High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
