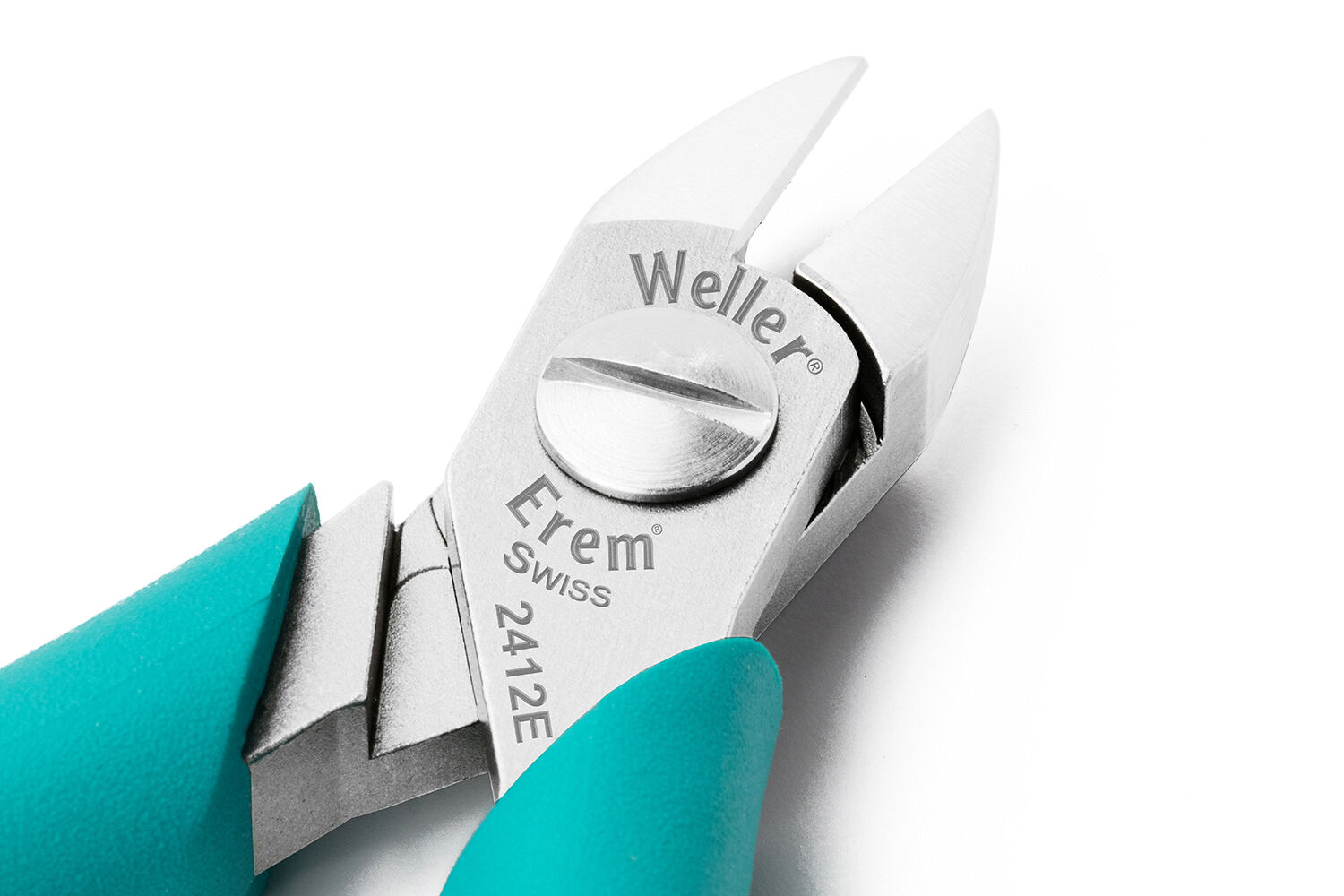

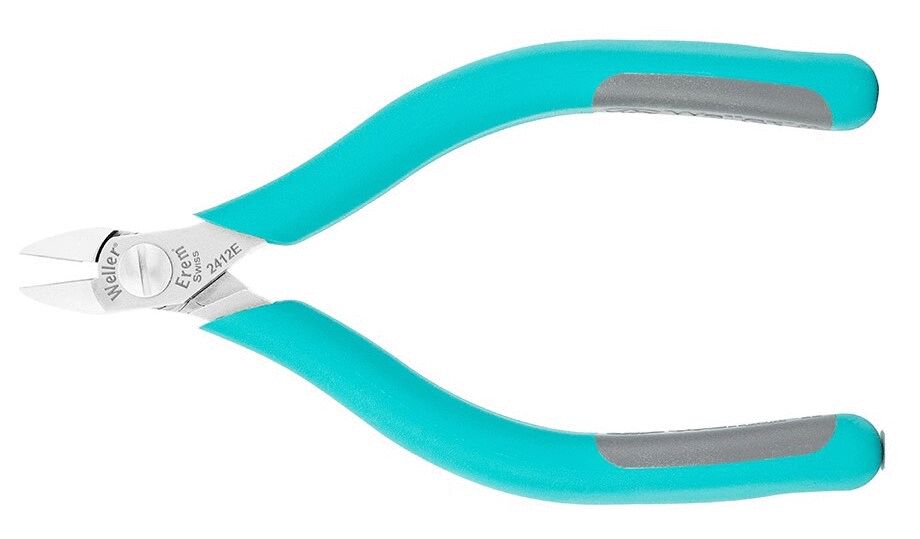

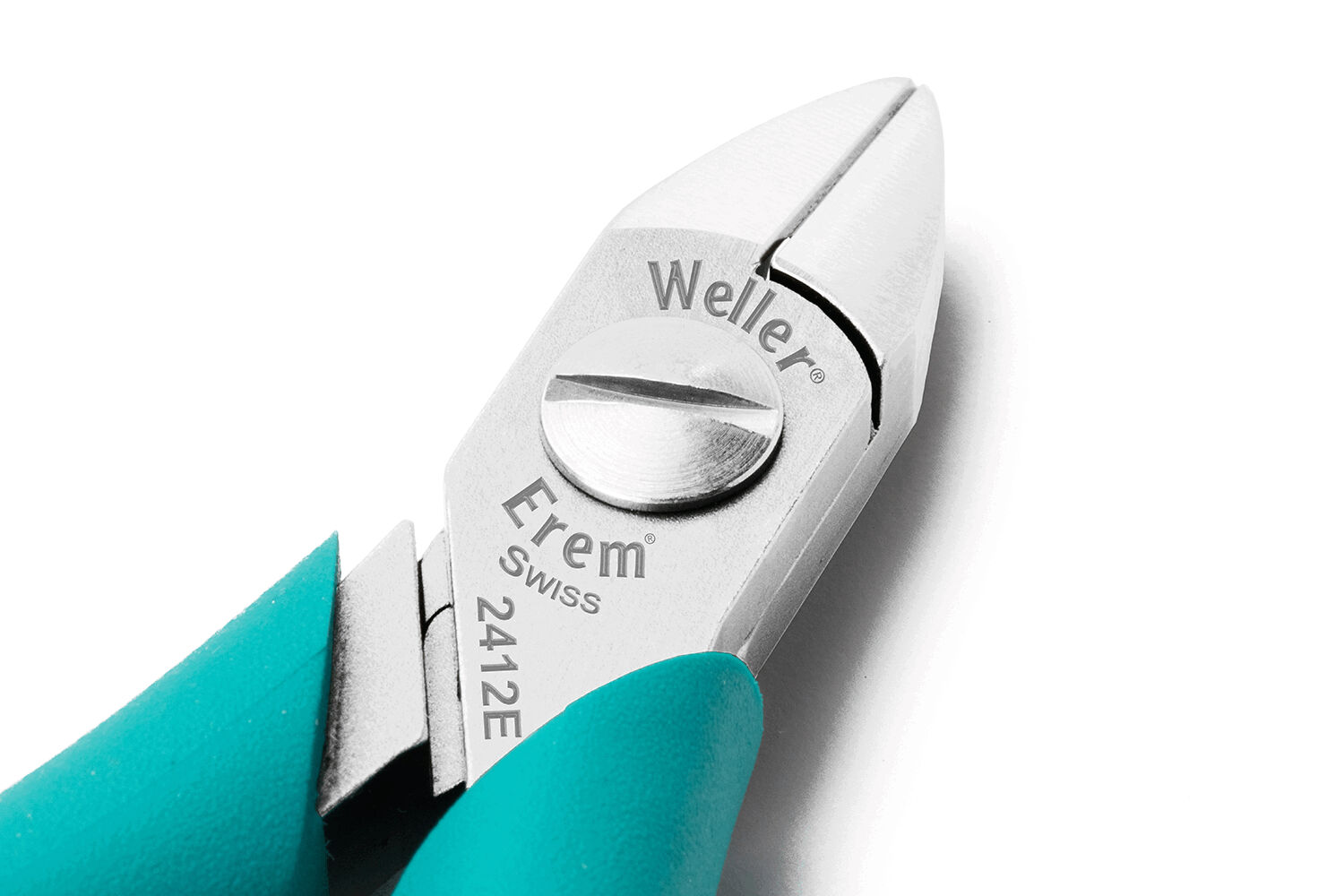

Diagonal cutting pliers 2412E
(Product No.: 2412E)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Diagonal cutting pliers 2412E

dpvlink:
8725
Type of pliers:
Diagonal cutting pliers
Bevel:
small bevel
Length [mm]:
130
A [mm]:
12.0
B [mm]:
11.0
C [mm]:
6.0
Max Cu:
1.6 mm
Properties:
Further product information

Shipping time:
available available
81,35 EUR
81,35 EUR per PCE

PCE:
Compare Compare
Notice
Product Info
Side Cutter 2412E The Weller Erem Series 2400 MagicSense offers a medium-sized precision cutter designed for high robustness, optimal visibility, and accessibility. This model is ideal for precision work in hard-to-reach areas and features various head shapes. The ergonomic shape of the handles prevents hand fatigue, while the induction-hardened cutting edges made from special tool steel provide a lifespan of over 60 HRc. These cutting edges are re-sharpenable, further enhancing the tool's durability. The non-reflective surface and ESD safety protect sensitive components from static discharge. The side cutter is suitable for universal cutting tasks in easily accessible places and is particularly effective with soft and thin wires. Technical Specifications: - Type of pliers: Side cutter - Edge: Small edge - Length: 130 mm - A: 12.0 mm - B: 11.0 mm - C: 6.0 mm - Max Cu: 1.6 mm - D: 19.0 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
small bevel
Length [mm]
Length [mm]
130
A [mm]
A [mm]
12.0
B [mm]
B [mm]
11.0
C [mm]
C [mm]
6.0
Max Cu
Max Cu
1.6 mm
D [mm]
D [mm]
19.0
Common

The ESD safe series 2400 MagicSense combines high-quality processing, precision and cutting comfort. The ergonomically shaped MagicSense handles prevent fatigue of the hand. The cutting edges are produced by using a special hardening process and can be re-sharpened ensuring a high service life.



1. Precision - high-precision screw joint enabling a smooth action with no jaw overlap

2. Quality - strong and durable

3. Movements - maximum durability with constant spring force movements

4. Comfort, security and grip - fatigue-free handling with maximum opening stop technology

5. ESD-safe to prevent damage to sensitive components




High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.



Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.



Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.



Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.



Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.



The cutting shapes and cutting performance:



With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.



With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.



Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.



Without bevel flush (facet)
Flush cut for soft materials.


Pictograms
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 484
Complete Catalog 2023 - 2024
