Diagonal cutting pliers 7702115 ESD

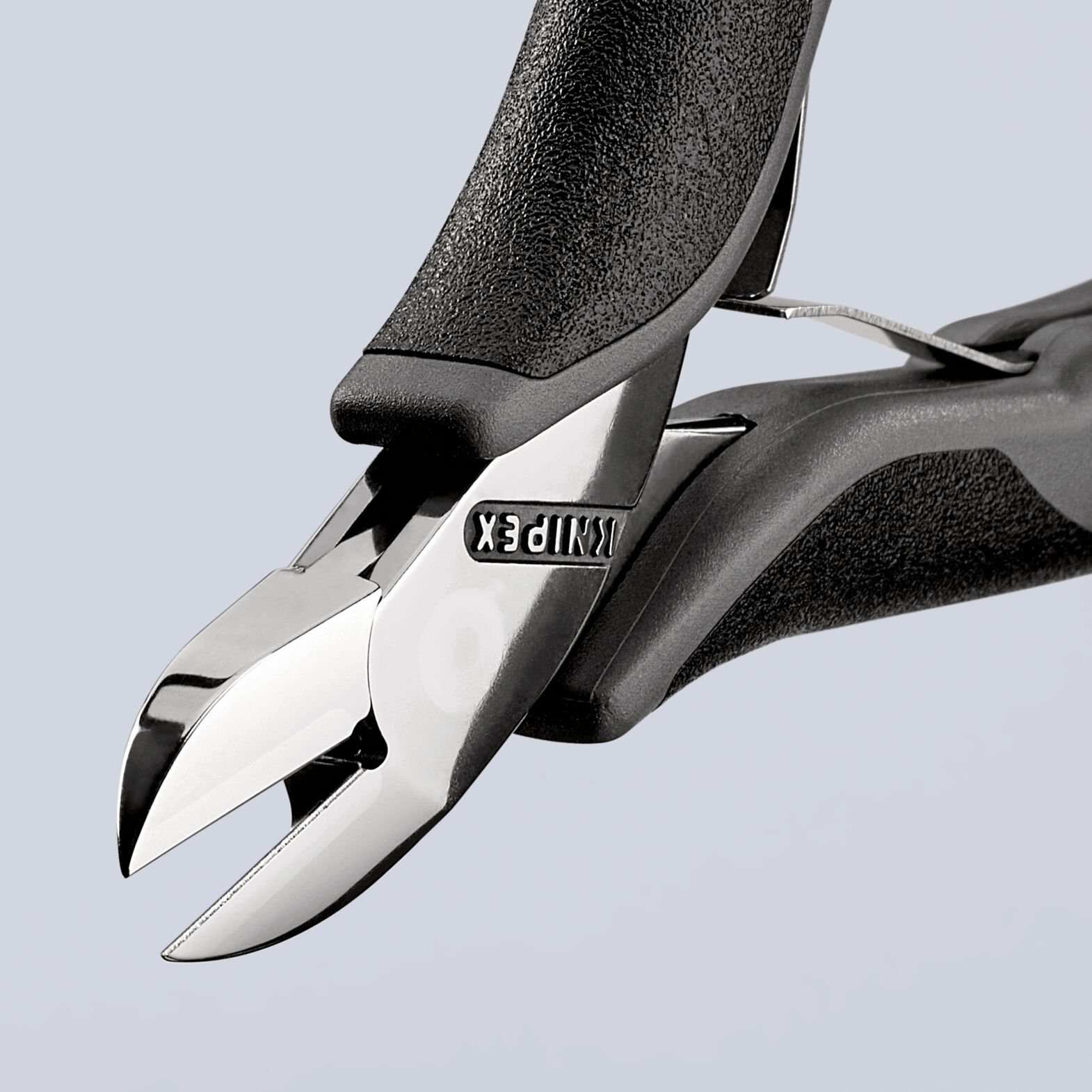

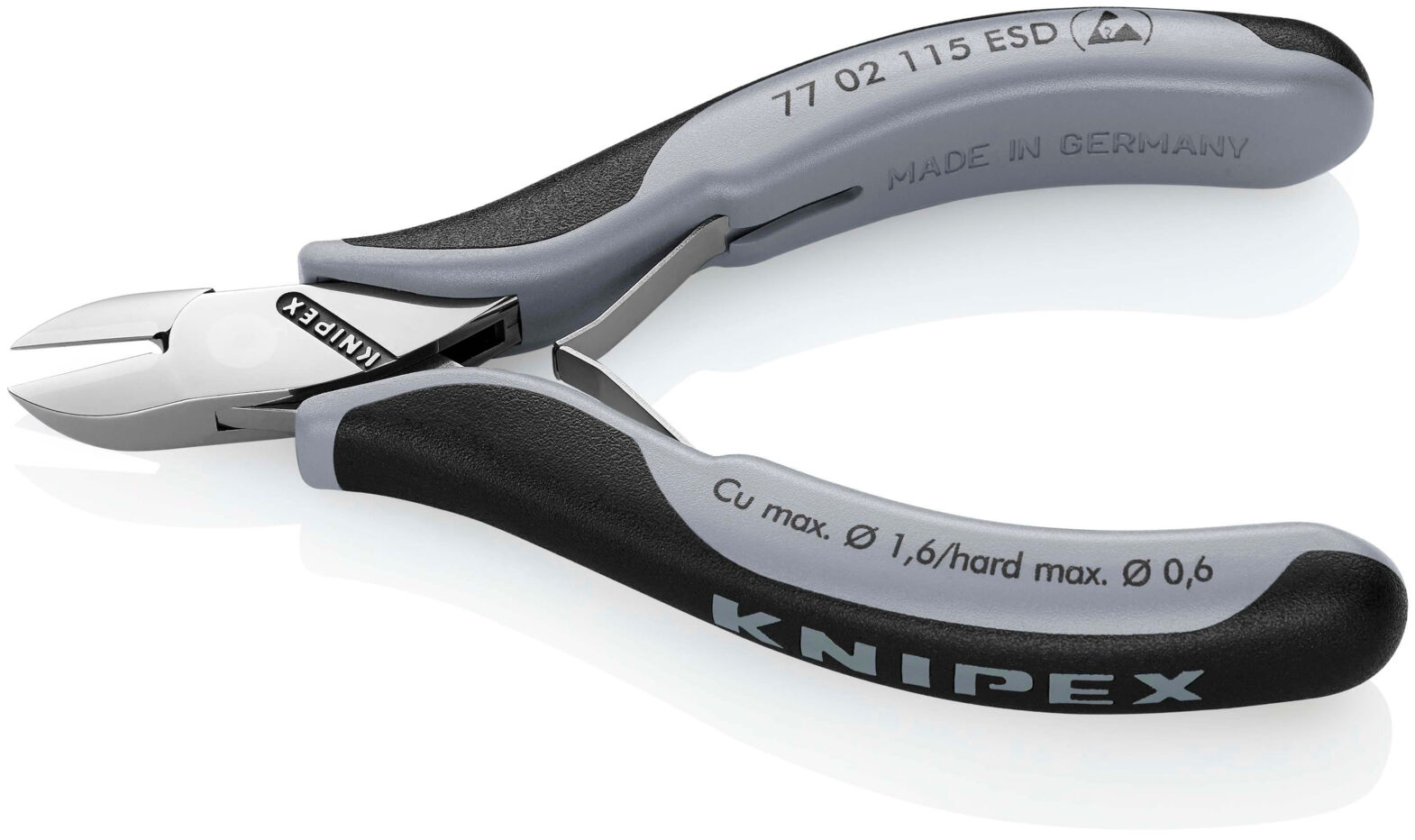

The KNIPEX 7702115 ESD side cutter is characterized by its robust, load-optimized design, which is equipped with a riveted and play-free joint. The slim design of the handles allows for precise and comfortable gripping. Thanks to the electrically discharging, dissipative handles, safe handling is ensured.The high leverage of the side cutter significantly reduces the amount of force required, while the low-friction double spring ensures smooth and even opening. An additional laser-hardened cutting edge with a hardness of about 62 HRC and the mirror-polished surface with a fine oil film provide optimal rust protection and prevent circuit disruptions due to flaking chrome parts.
The technical specifications include a length of 115 mm, a width of 52 mm, and a height of 17 mm. The weight is 69 g. The side cutter can cut soft materials up to a diameter of 1.63 mm, medium-hard materials up to 1.15 mm, and hard materials up to 0.6 mm. The tool, made of high-quality tool steel, is ESD-safe and ideally suited for precise cutting tasks in electronic applications.
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- large
- Head shape Head shape
- round nose
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- Max Ø hard Max Ø hard
- 0,64 mm
- AWG hard AWG hard
- 22
- AWG medium AWG medium
- 17
- AWG soft AWG soft
- 14
- Head thickness Head thickness
- 7.5 mm
- Height Height
- 17 mm
- Length Length
- 115 mm
- Width Width
- 52 mm
- Material Material
- Tool steel
- Surface Surface
- mirror polished
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 14 mm
- Version Version
- with opening spring
- Weight Weight
- 69 g
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Knipex ESD Cutting pliers series "Standard"
Push-through, backlash-free joint. High cutting quality and long service life.
The joint of the electronic side cutter is box joint. With box joints, the inner leg of the pliers is guided on both sides by two large bearing surfaces in the outer leg of the pliers. This avoids the tilting movements that occur with surface-mounted tong joints. The rivets are only subjected to shear stress, not bending. Among other things, this results in the high quality of the cutting processes and the long service life for which Knipex is renowned. The cutting edges are induction hardened in addition to the oil hardening of the entire pliers. A low-friction double spring is integrated to support the smooth and even opening of the pliers after the cutting process.
ESD protection against uncontrolled electrostatic discharge; safety rust protection
Sudden discharges due to electrostatic charge differences are particularly feared in electronics. The electronic cutting pliers dissipate electrostatic energy evenly and in a controlled manner via the handles.The handles of the cutting pliers are conductive - i.e. not voltage-insulating.This enables slow and therefore safe charge equalization.The rust protection is also harmless for sensitive electronic components.Instead of chrome plating, the electronic cutting pliers are given a mirror polish and a fine oil film to protect against corrosion.As a result, no chrome parts can flake off and fall onto circuit boards.The mirror polish in combination with a fine oil film protects the pliers from corrosion sufficiently for workshop use, provided the oil film is renewed occasionally.
Diagonal cutting pliers with carbide cutting edges (K-xxxx.xxxH.ESD)
Precise cutting of hard wires - including piano, nickel, tungsten and diode wire
Unlike other diagonal cutting pliers for electronics, the electronics diagonal cutting pliers with carbide cutting edges from Knipex are a combination of fine tool and high-performance pliers with ESD protection.
Fine tools because they are compact and lightweight - ideal for confined spaces, e.g. on circuit boards or in protective housings.And high-performance pliers with ESD protection, because the precision carbide cutting edges used are also suitable for particularly hard and tough wire types, especially in the area of circuit boards and sensitive electronic components.The short pliers head results in a strong leverage effect.These are ideal conditions for the development of force on the cutting edges and the dosage of manual force.
End cutting pliers - cutting fine wires and cables from the front or at an angle to the surface
In narrow spaces, e.g. on circuit boards, it is often best to cut from above. In contrast to diagonal cutting pliers, where the cutting edges are a relatively straight extension of the pliers legs, the cutting edges on Knipex electronics diagonal cutting pliers are positioned frontally or at an angle to the pliers legs. This allows an optimum view of the working area while working almost perpendicular to the surface.
Thanks to the good leverage effect - due to the short pliers head - both the force development on the cutting edges and the dosage of manual force are excellent.
Sophisticated construction - designed for ergonomics and durability
The smooth-running, play-free joint of the Knipex diagonal cutting pliers is box joint. The legs of the pliers stabilize each other. This prevents tilting movements, which has a positive effect on the quality of the cutting process. The cutting edges are induction hardened in addition to the oil hardening of the pliers. The low-friction double spring is ergonomically advantageous.
