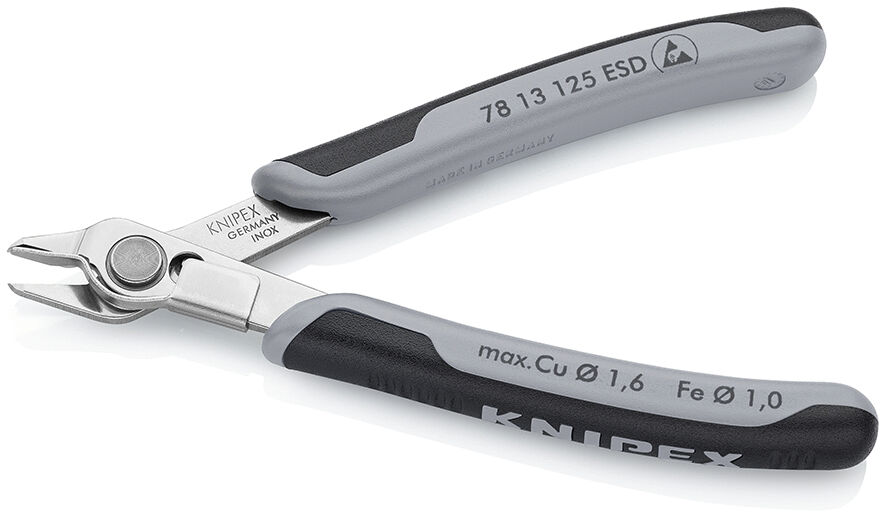

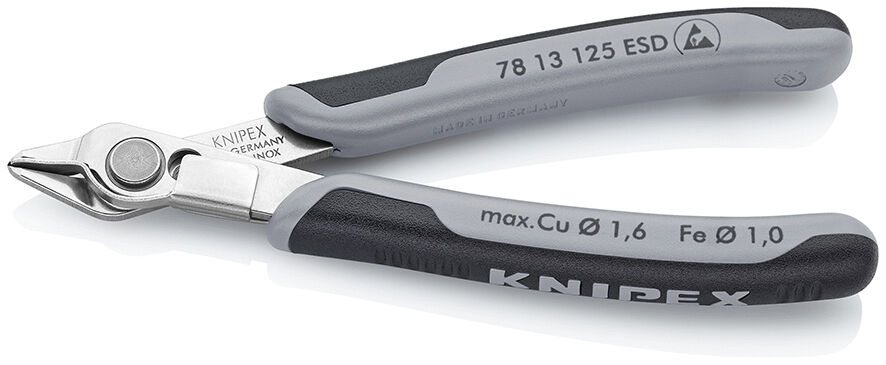

Equipped with electrically conductive, dissipative handles, this diagonal cutter allows for slow charge equalization. The cutting edges are made of high-quality, stainless steel and are ground for ultra-precise, facet-free cuts. With a cutting edge hardness of approximately 54 HRC and a controlled micro-cutting edge offset, the tool offers a long service life and the ability to precisely cut even the thinnest wires.

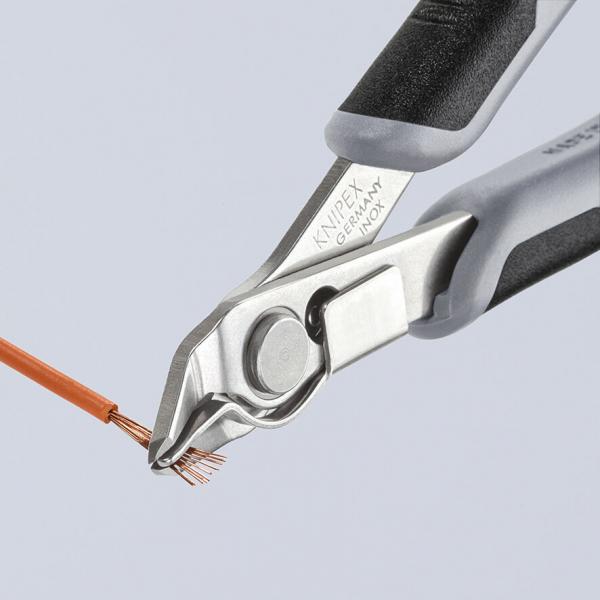

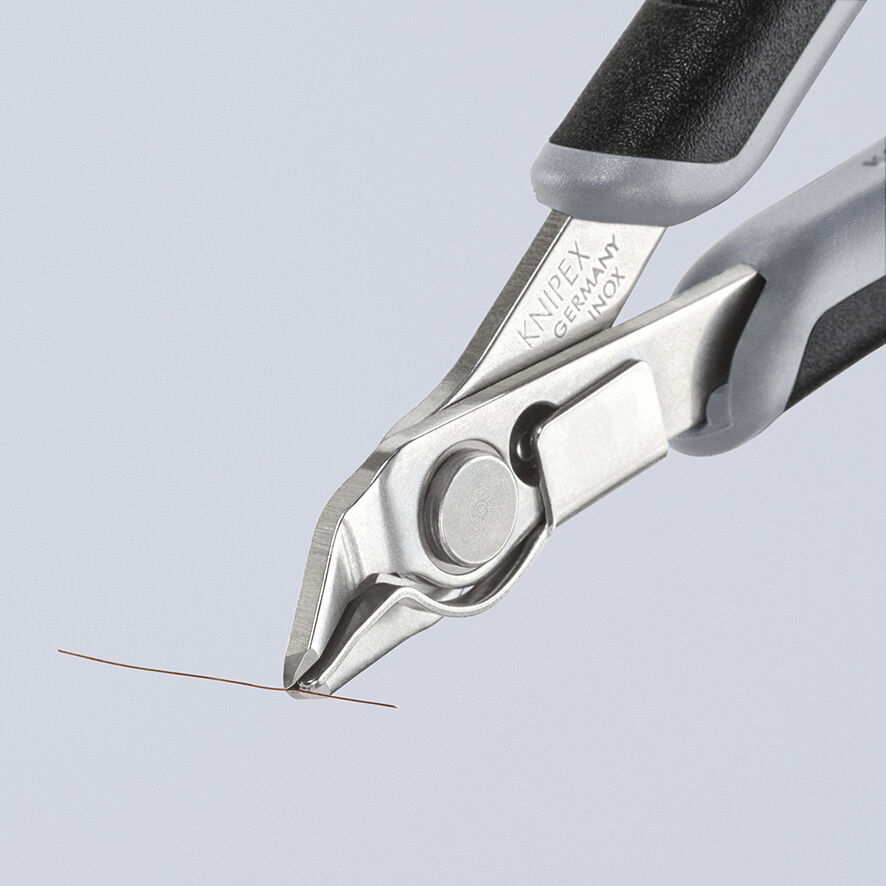

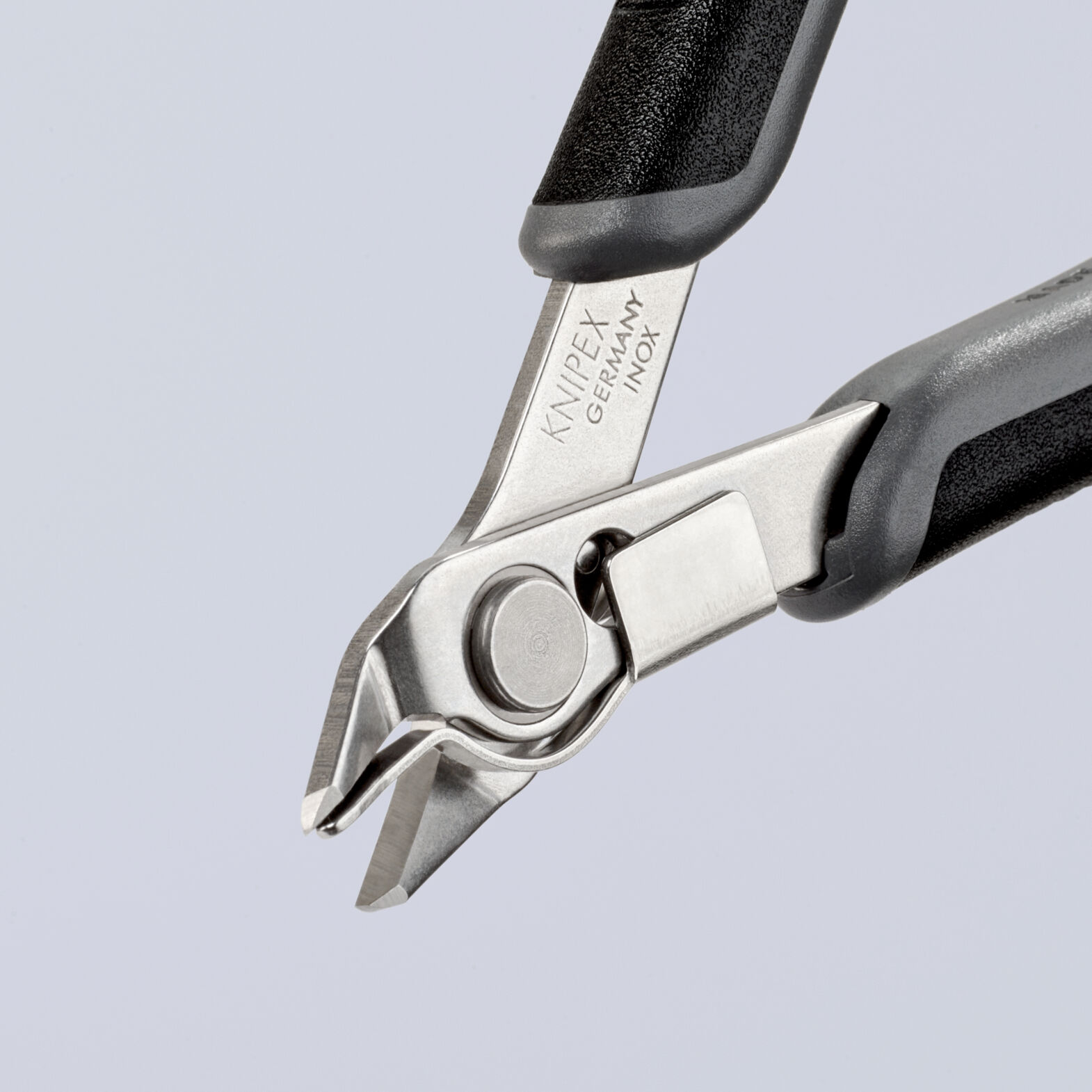

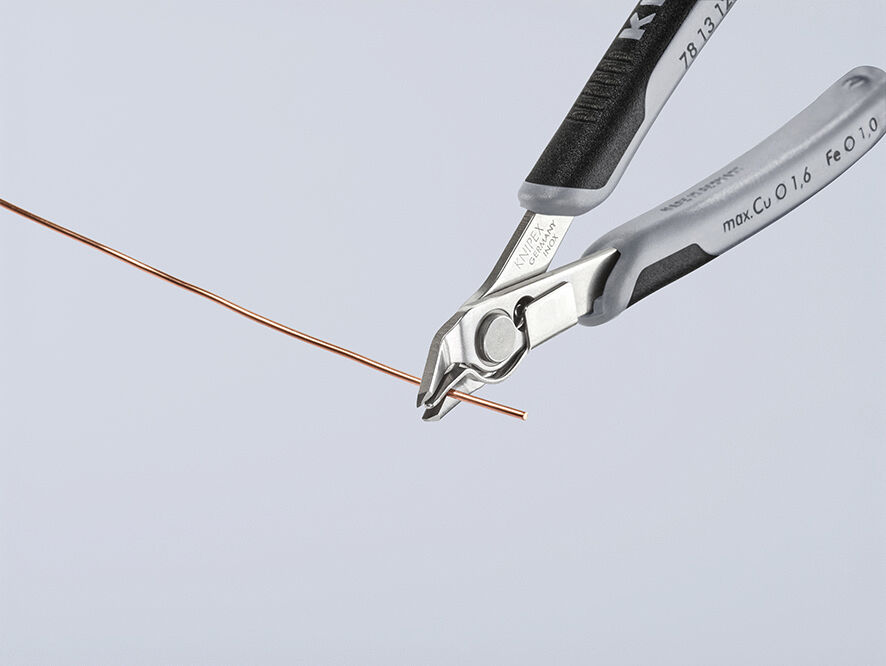

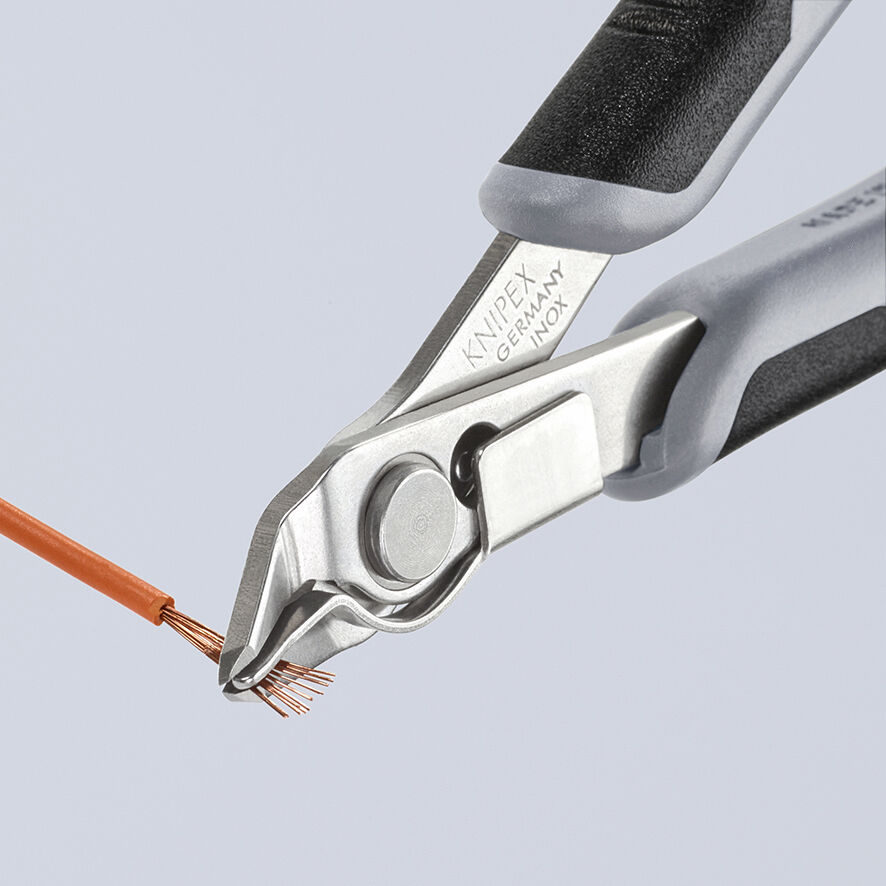

The pliers feature a spring opening and an opening limit, which, along with the extremely smooth operation, ensure fatigue-free work. The precisely shaped tips allow for cutting wires from a diameter of 0.2 mm that are directly adjacent to housings or components. With an overall length of 125 mm and a weight of only 57 g, this pliers is handy and efficient for daily use.
Manufactured by KNIPEX, the 7813125 ESD diagonal cutter stands for quality and reliability in every detail, from material selection to processing.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Version Version
- with wire clamp / with safety spring
- Surface Surface
- polished
- Head thickness Head thickness
- 7.5 mm
- Height [mm] Height [mm]
- 12 mm
- Length [mm] Length [mm]
- 125 mm
- Width [mm] Width [mm]
- 61 mm
- Material Material
- stainless steel
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 57 g
The Knipex Super-Knips series have precision-ground cutting edges for a clean, planar cutting without bevel, e.g. for the use in electronics and fine mechanics. The very smooth-running joint and the opening spring offer high ease of use.
All versions are electrically dissipative
Knipex pliers comply with the highest requirements concerning performance, ergonomics, and service life.
Due to a special selection of the used steels and the careful and high-quality processing, the Knipex pliers achieve an optimal durability and service life. Innovative ideas always offer forward-looking solutions for an easy, effective and safe working.
The cutting shapes and cutting performance:
With mini bevel (facet)
Nearly flush cut. Fine cutting edges. Suitable for soft steel wire, copper wire and cable.
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
