Diagonal cutting pliers 792E
(Product No.: 792E)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Diagonal cutting pliers 792E

dpvlink:
2430
Bevel:
without bevel
Head type/size:
regular
Max Ø soft:
0.64 mm
Max Ø medium:
0.4 mm
Properties:
Further product information

available available
82,30 EUR

1 PCE
Compare Compare
Notice
Product Info

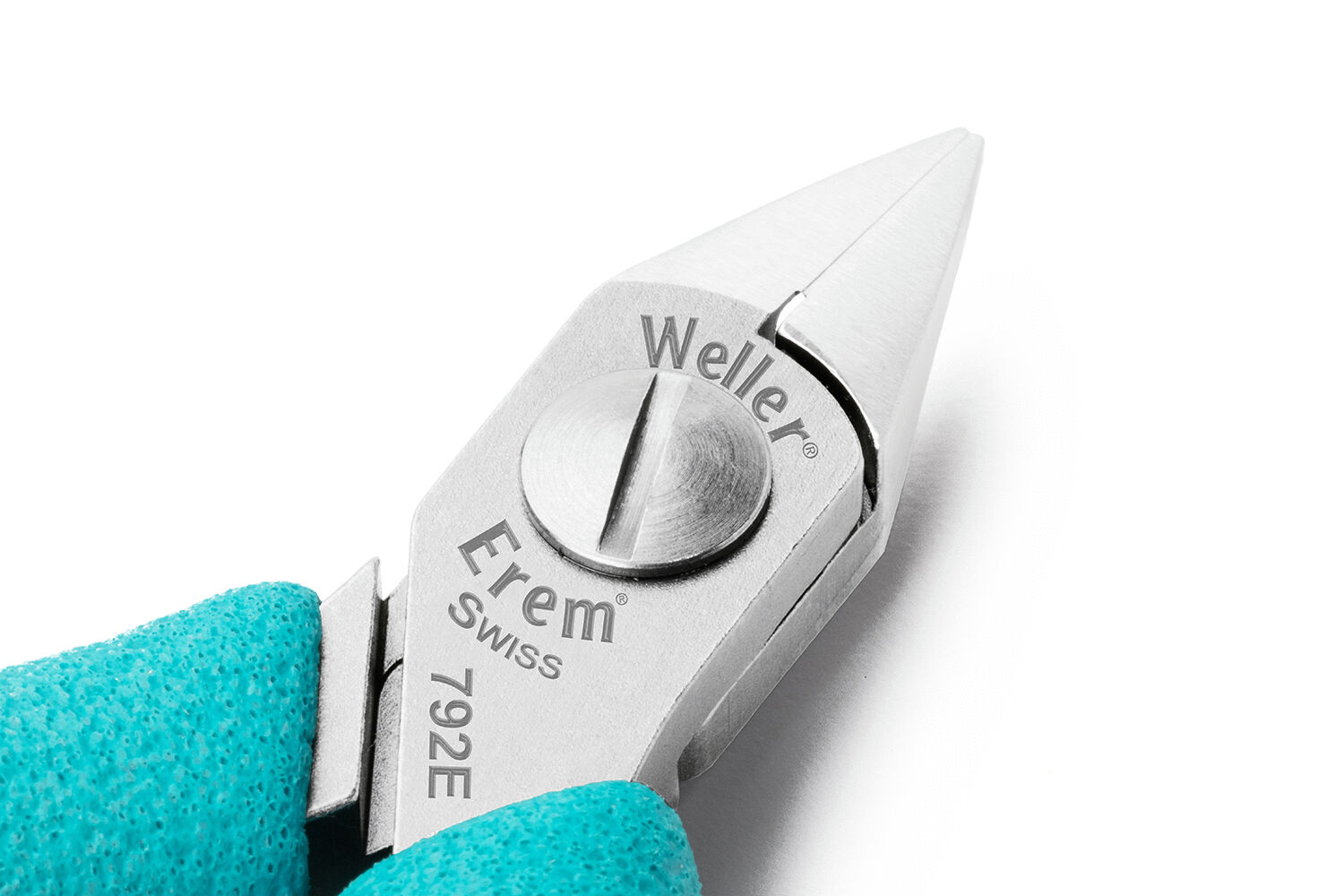

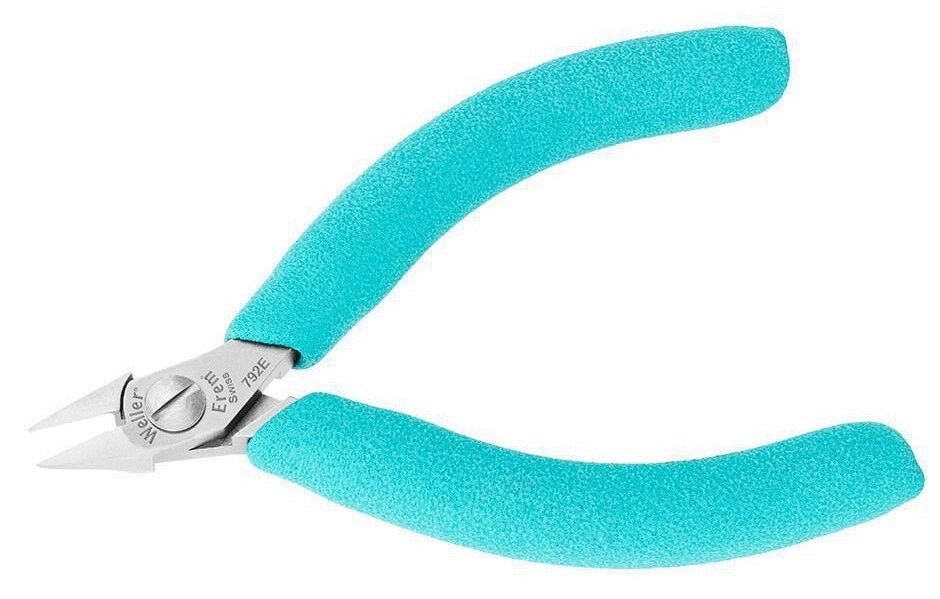

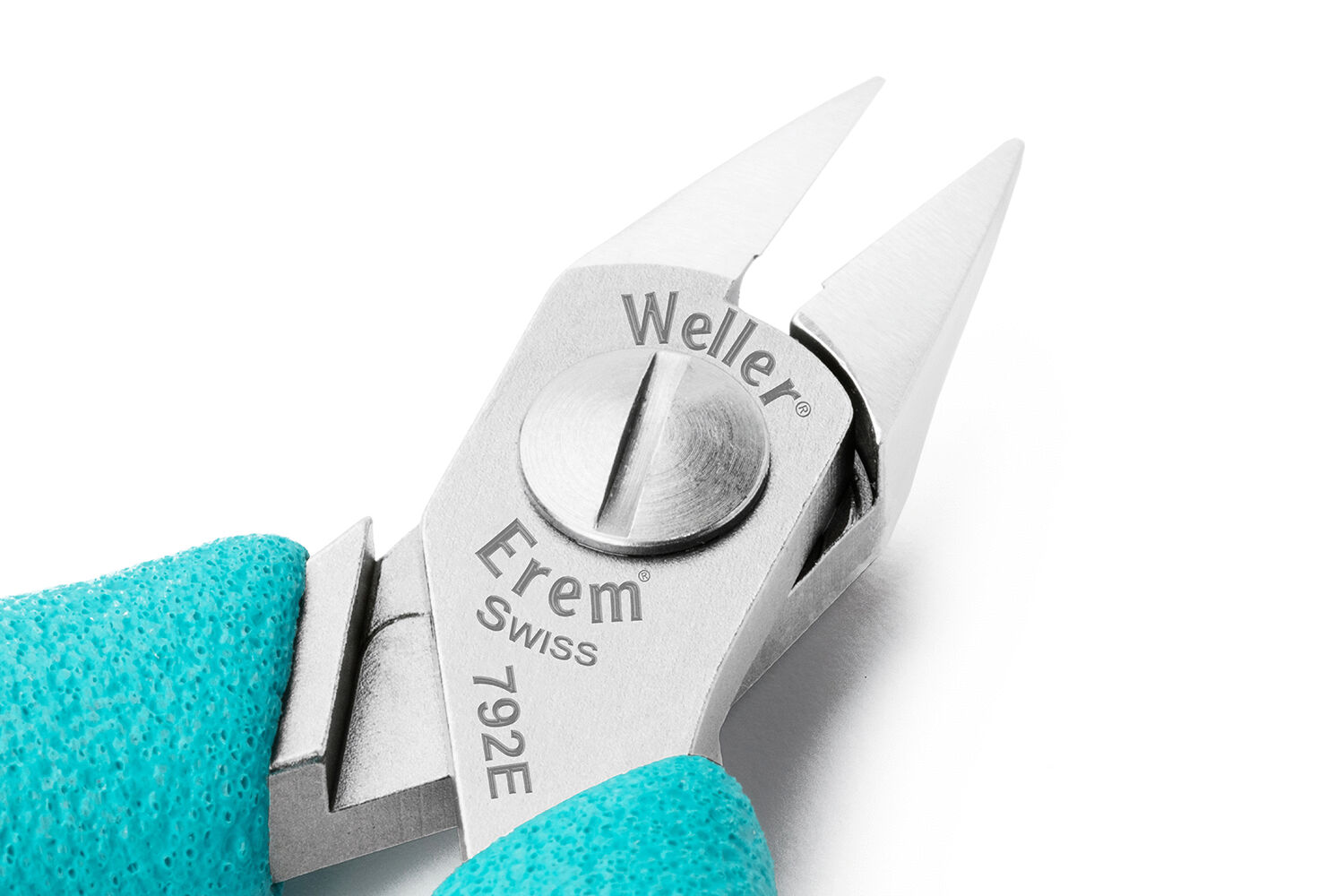

The Weller Erem 792E side cutter is distinguished by its particularly narrow head shape, which allows for precise work even in hard-to-reach areas. The underside of this tool is recessed and the fine long tips of 13 mm length are ideal for cutting fine copper wires. This model is available in an ESD version, which ensures safe handling of electrostatically sensitive components.
The side cutter has a head width of 11 mm and a head thickness of 6 mm. The jaw length is 12 mm and the blade length is 10.16 mm. With an overall length of 115 mm and a head size classified as normal, the tool offers good handling. It is made of high-quality tool steel, which guarantees a long service life and robustness. The maximum diameter for soft wires is 0.64 mm and for medium-hard wires is 0.4 mm.
These technical specifications make the 792E side cutter an indispensable tool for precise cutting work in electronics and precision mechanics.
Bevel
Bevel
without bevel
Head type/size
Head type/size
regular
Max Ø soft
Max Ø soft
0.64 mm
Max Ø medium
Max Ø medium
0.4 mm
Head thickness
Head thickness
6 mm
Blade length
Blade length
10.16 mm
Length [mm]
Length [mm]
115 mm
Material
Material
Tool steel
ESD
ESD
yes
Head width
Head width
11 mm
Jaw length
Jaw length
12 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Common

fo a perfect flush cut




High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.



Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.



Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.



Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.



Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.



The cutting shapes and cutting performance:



With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.



With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.



Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.



Without bevel flush (facet)
Flush cut for soft materials.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Flush cut. Only suitable for soft materials (copper and plastic).

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 486
Complete Catalog 2023 - 2024
