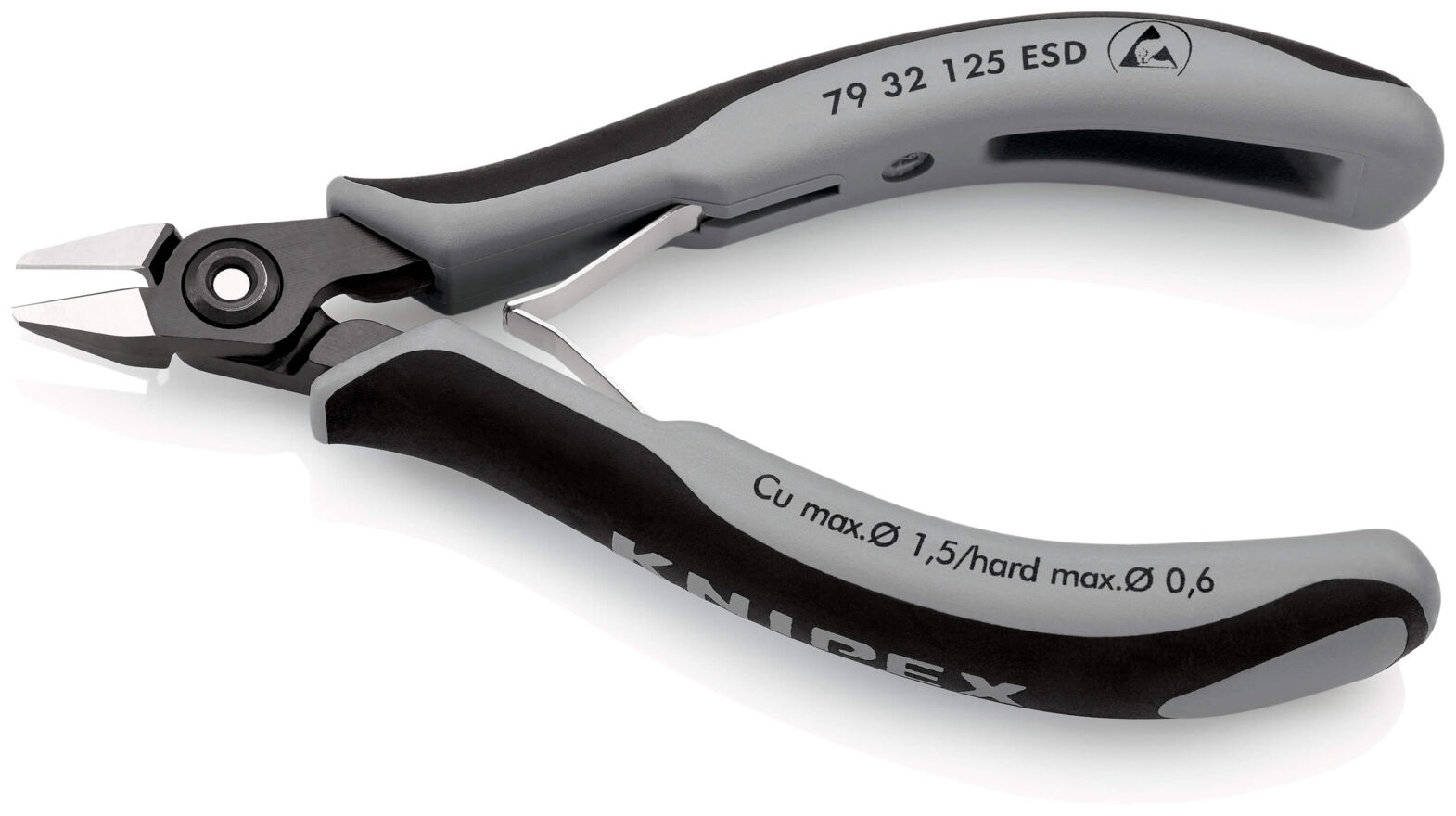

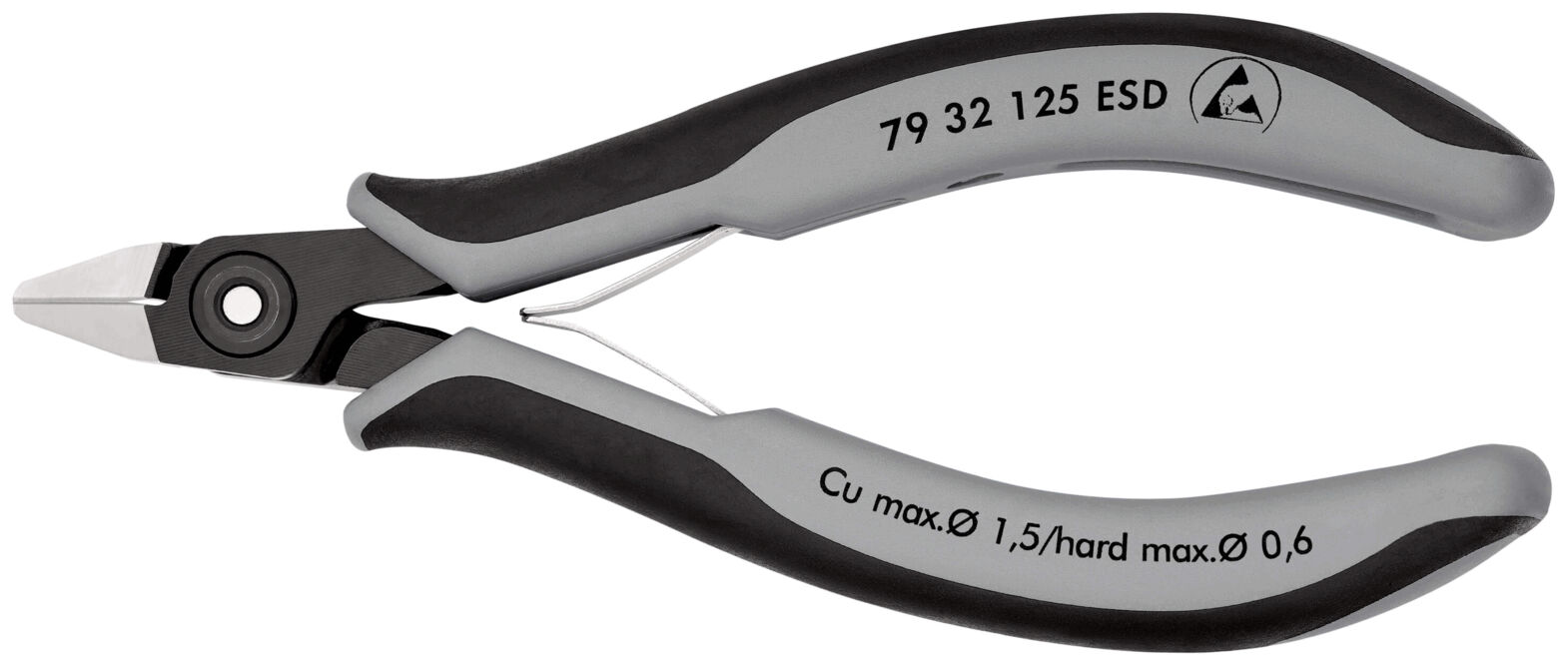

Diagonal cutting pliers 7932125 ESD
Diagonal cutting pliers 7932125 ESD
The KNIPEX 7932125 ESD side cutter is specifically designed for precision cutting tasks in electronics and fine mechanics. This tool is distinguished by its electrically conductive, dissipative handles and the precisely ground, sharp edges that are suitable for flush cutting both with and without a bevel. The cutting edge hardness is approximately 64 HRC, thanks to additional inductive hardening.Weighing just 61 g, this side cutter is about 20% lighter than conventional electronics pliers. The screwed joint ensures smooth and low-friction movement throughout the entire opening range, supported by an easy-to-move double spring that allows for gentle and even opening. The ergonomically optimized multi-component sleeves and the pointed head increase handling comfort.
Technical specifications include a length of 125 mm, a head width and thickness of 11 mm and 6.5 mm respectively, and a jaw length of 11 mm. The side cutter can cut soft materials up to a diameter of 1.45 mm, medium-hard materials up to 1.1 mm, and hard materials up to 0.6 mm. The tool material consists of polished and burnished steel, which guarantees high durability and robustness.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- small
- Head shape Head shape
- snipe nose
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- Max Ø hard Max Ø hard
- 0,64 mm
- Version Version
- with opening spring
- AWG hard AWG hard
- 22
- AWG medium AWG medium
- 17
- AWG soft AWG soft
- 15
- Head thickness Head thickness
- 6.5 mm
- Height Height
- 19 mm
- Length Length
- 125 mm
- Width Width
- 61 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 11 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 61 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Diagonal cutting pliers 7902120 ESD
Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Version
Price
Compare
mini bevel
extra small
round nose
1.45 mm
1.02 mm
0,64 mm
with opening spring
mini bevel
small
round nose
1,63 mm
1.29 mm
0.72 mm
with opening spring
without bevel
extra small
round nose
1.29 mm
0.81 mm
with opening spring
without bevel
small
round nose
1,63 mm
1.02 mm
with opening spring
mini bevel
small
snipe nose
1.45 mm
1.15 mm
0,64 mm
with opening spring
without bevel
small
snipe nose
1.45 mm
0.81 mm
with opening spring
without bevel (flush cut)
small
snipe nose
1.45 mm
0.81 mm
with opening spring
mini bevel
small
snipe nose
1.29 mm
0.91 mm
0.51 mm
with opening spring / with wire clamp
without bevel
small
snipe nose
1.29 mm
0.81 mm
with opening spring / with wire clamp
