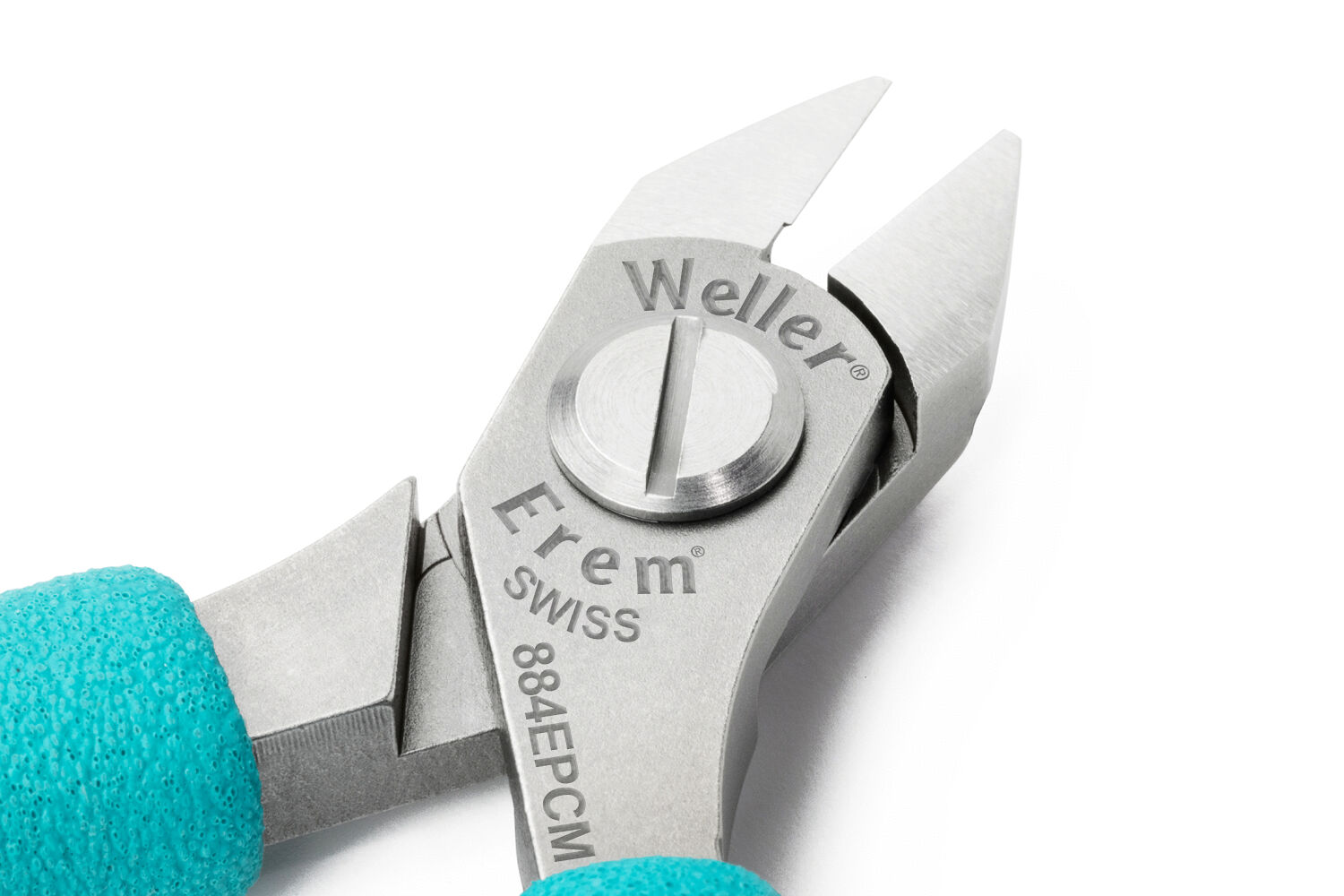

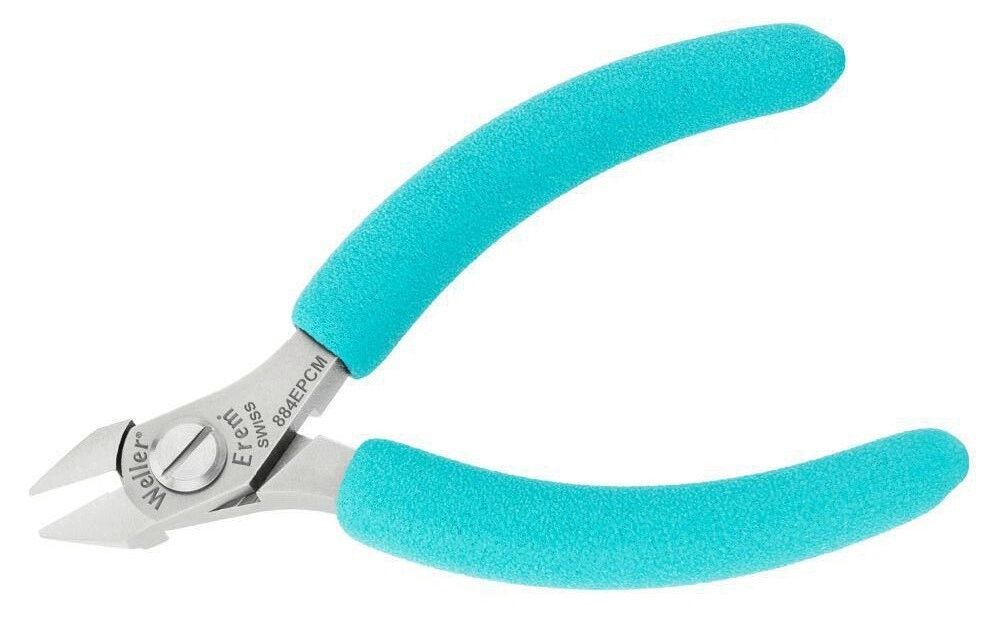

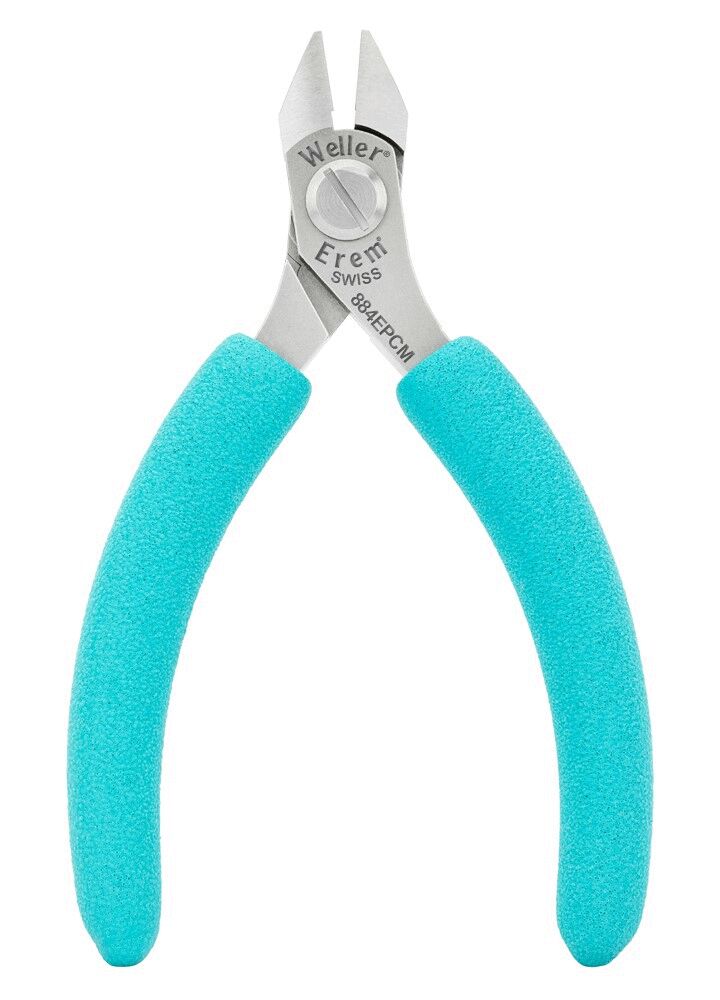

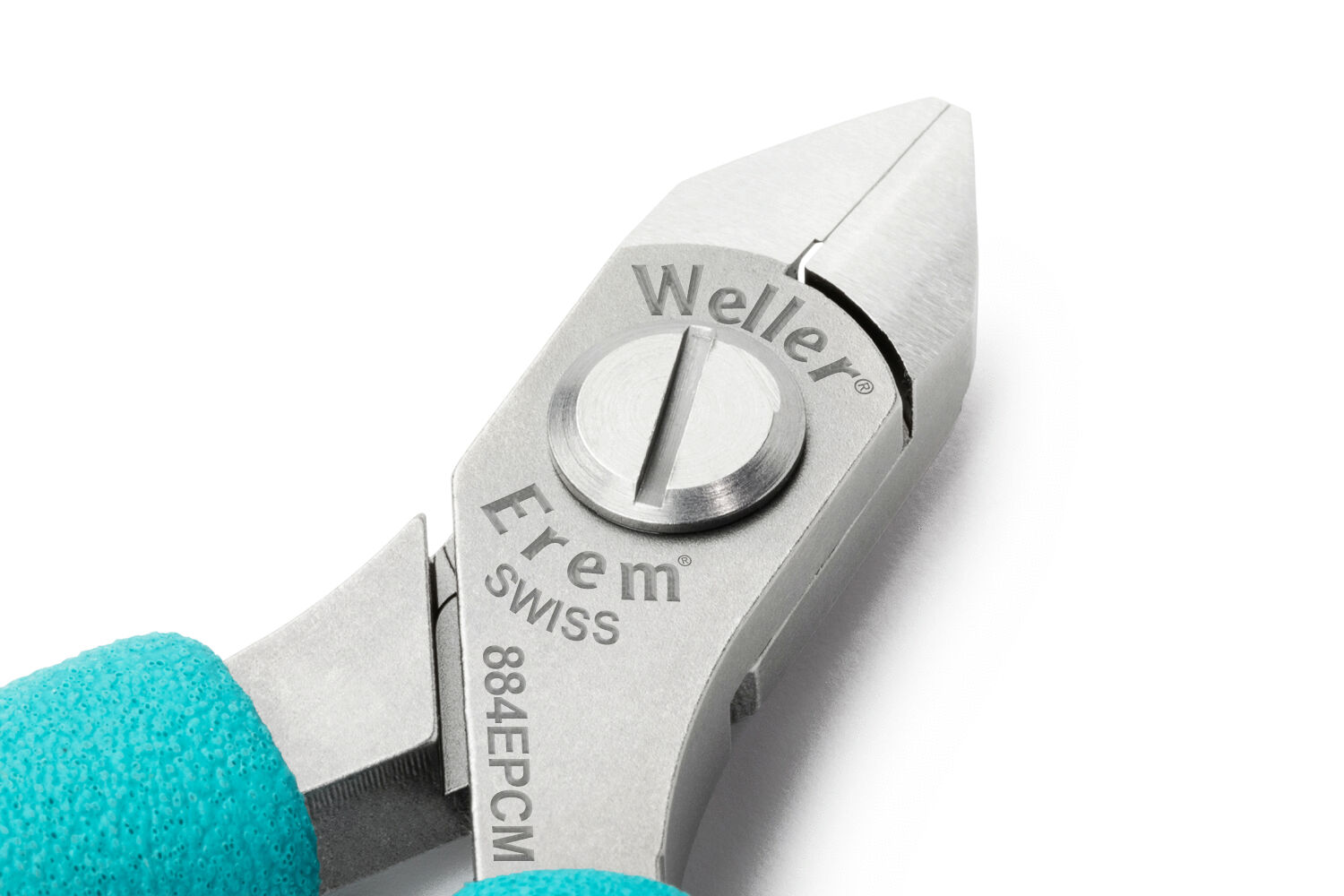

The total length of the side cutter is 115 mm with a blade length of 7 mm and a jaw length of 12 mm. The small chamfer on the blade allows for a normal cut and is universally applicable to hard and soft steel wires as well as other soft materials like copper wire and cables. The innovative, patented opening system integrates the springs invisibly, thus ensuring safety and interchangeability without the risk of injury. The double self-locking screw joint and the Stop! limit system prevent the blades from crossing and minimize wear. An optional wire holder is available, which reduces the risk of eye injuries and damage to assemblies from severed cutting debris.
This side cutter combines precision and safety for professional applications in electronics manufacturing and is a reliable choice for technical professionals.
Details
- Bevel Bevel
- small bevel
- Blade length Blade length
- 7
- Length [mm] Length [mm]
- 115
- Material Material
- Tool steel
- ESD ESD
- yes
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
