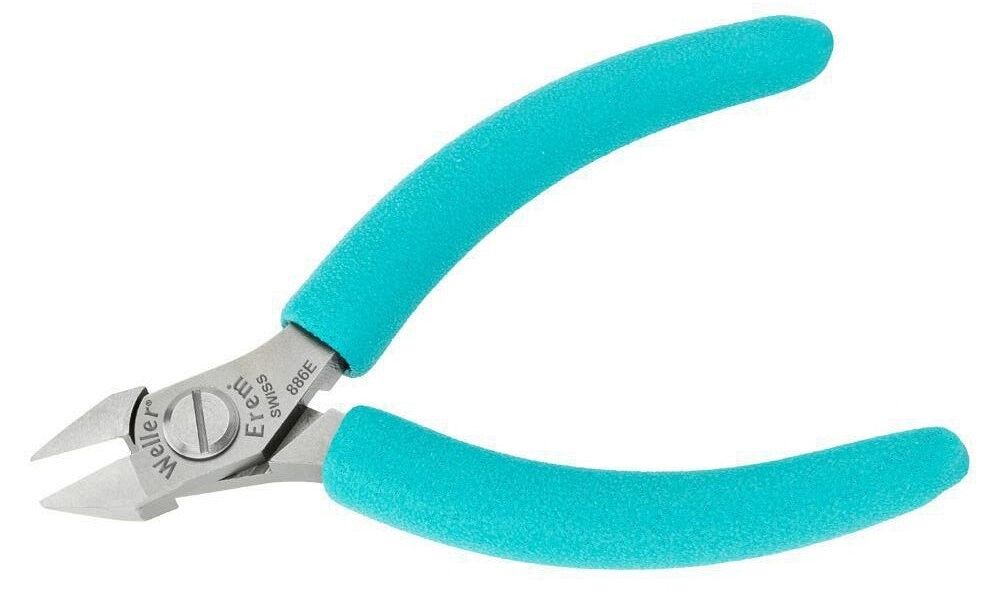

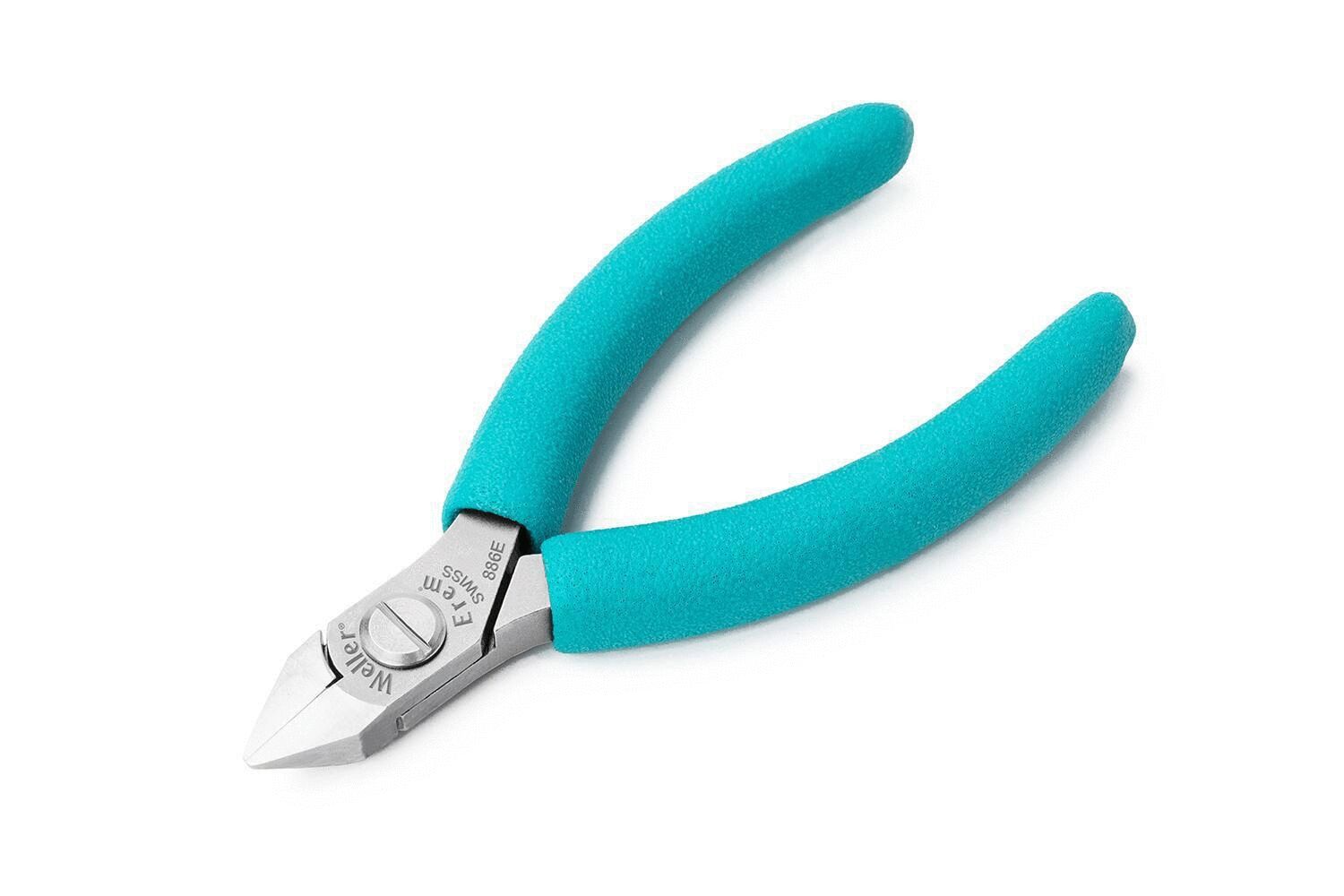

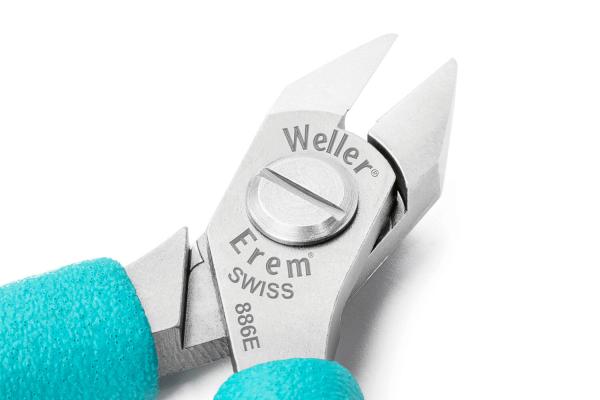

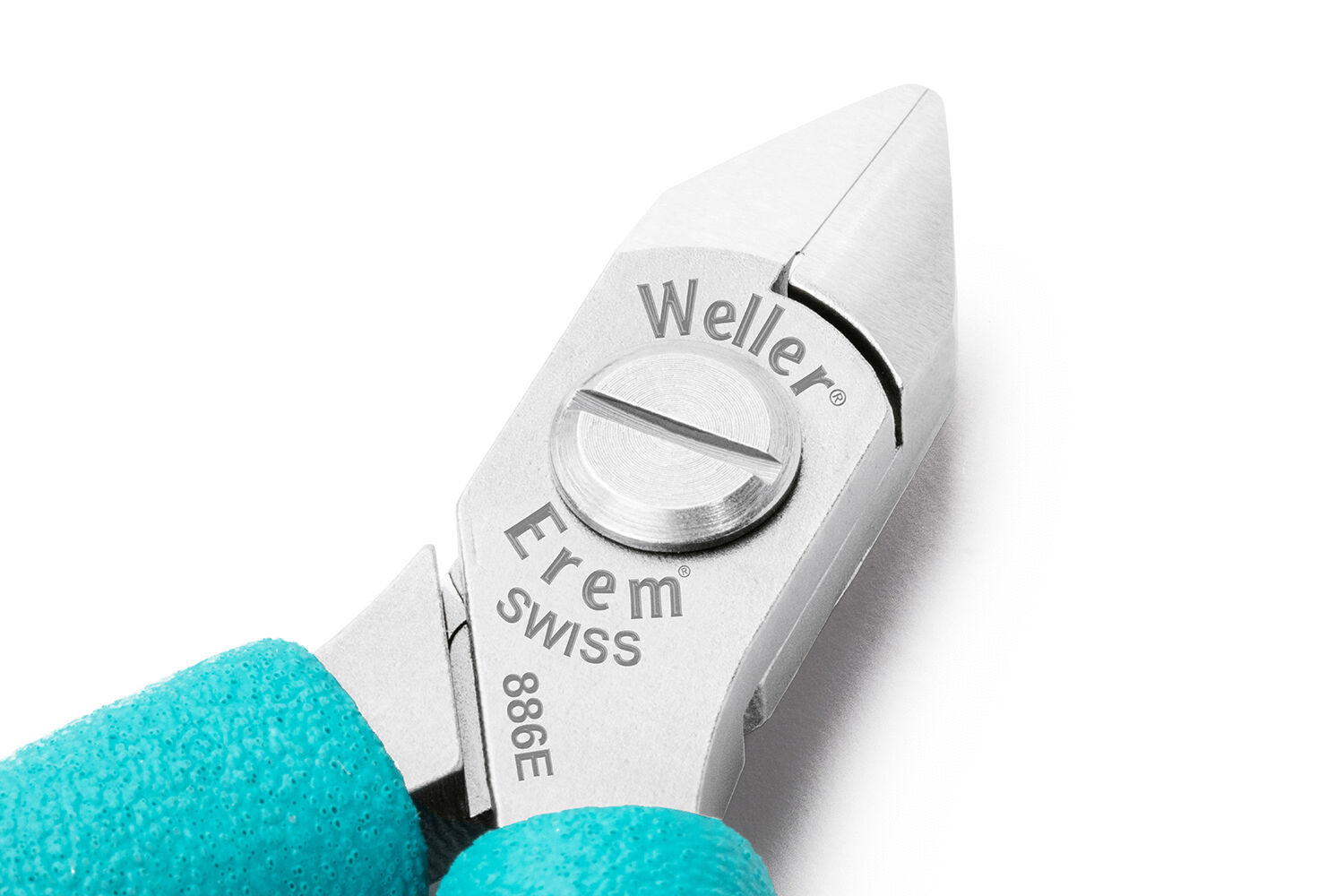

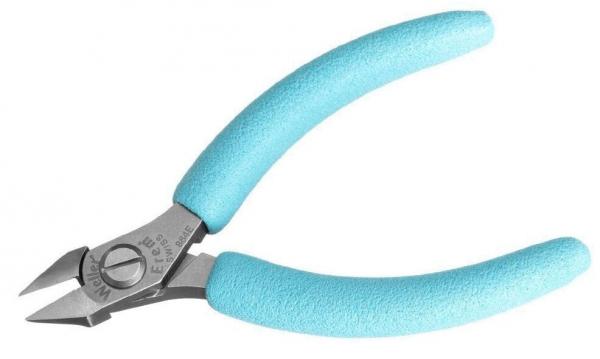

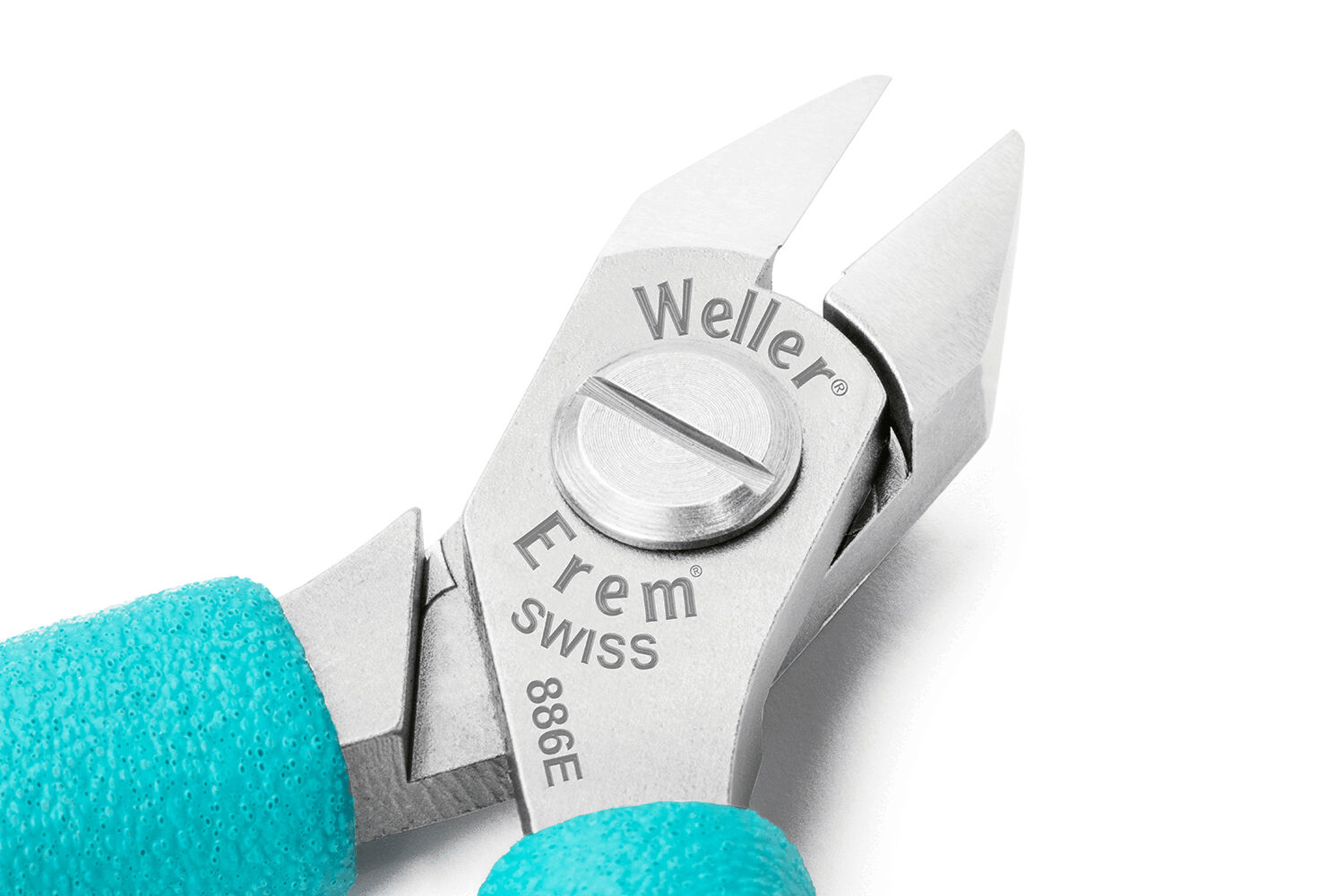

Diagonal cutting pliers 886E
(Product No.: 886E)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Diagonal cutting pliers 886E

dpvlink:
2541
Type of pliers:
Diagonal cutting pliers
Bevel:
small bevel
Length [mm]:
120
A [mm]:
15.0
D [mm]:
21.0
Max Cu:
1.8 mm
Properties:
Further product information

Shipping time:
available available
84,25 EUR
84,25 EUR per PCE

PCE:
Compare Compare
Notice
Product Info
Side Cutter 886E The Weller Erem Series 800 Maxi includes high-precision side cutters for general cutting applications in electronics, ideal for large wire diameters. These pliers are made of high-quality tool steel, with cutting edges hardened to 63-65 HRc. They feature a double self-locking screw joint that minimizes wear, and a patented opening system that integrates the springs invisibly, thus eliminating the risk of injury. The handles are ESD-safe with a transition resistance between 10^5 and 10^9 Ohm. Additionally, the Stop! system prevents the blades from crossing over. An optional wire holder is available to prevent eye injuries and damage to assemblies from detached cutting debris. Technical Specifications: - Plier Type: Side Cutter - Edge: Small bevel - Length: 120 mm - A: 15.0 mm - D: 21.0 mm - Max. Copper Wire Diameter: 1.8 mm - B: 13.5 mm - C: 7.2 mm The surface of the pliers is non-reflective to protect the eyes and facilitate work.
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
small bevel
Length [mm]
Length [mm]
120
A [mm]
A [mm]
15.0
D [mm]
D [mm]
21.0
Max Cu
Max Cu
1.8 mm
B [mm]
B [mm]
13.5
C [mm]
C [mm]
7.2
Common


High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.



Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.



Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.



Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.



Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.



The cutting shapes and cutting performance:



With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.



With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.



Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.



Without bevel flush (facet)
Flush cut for soft materials.


Pictograms
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
