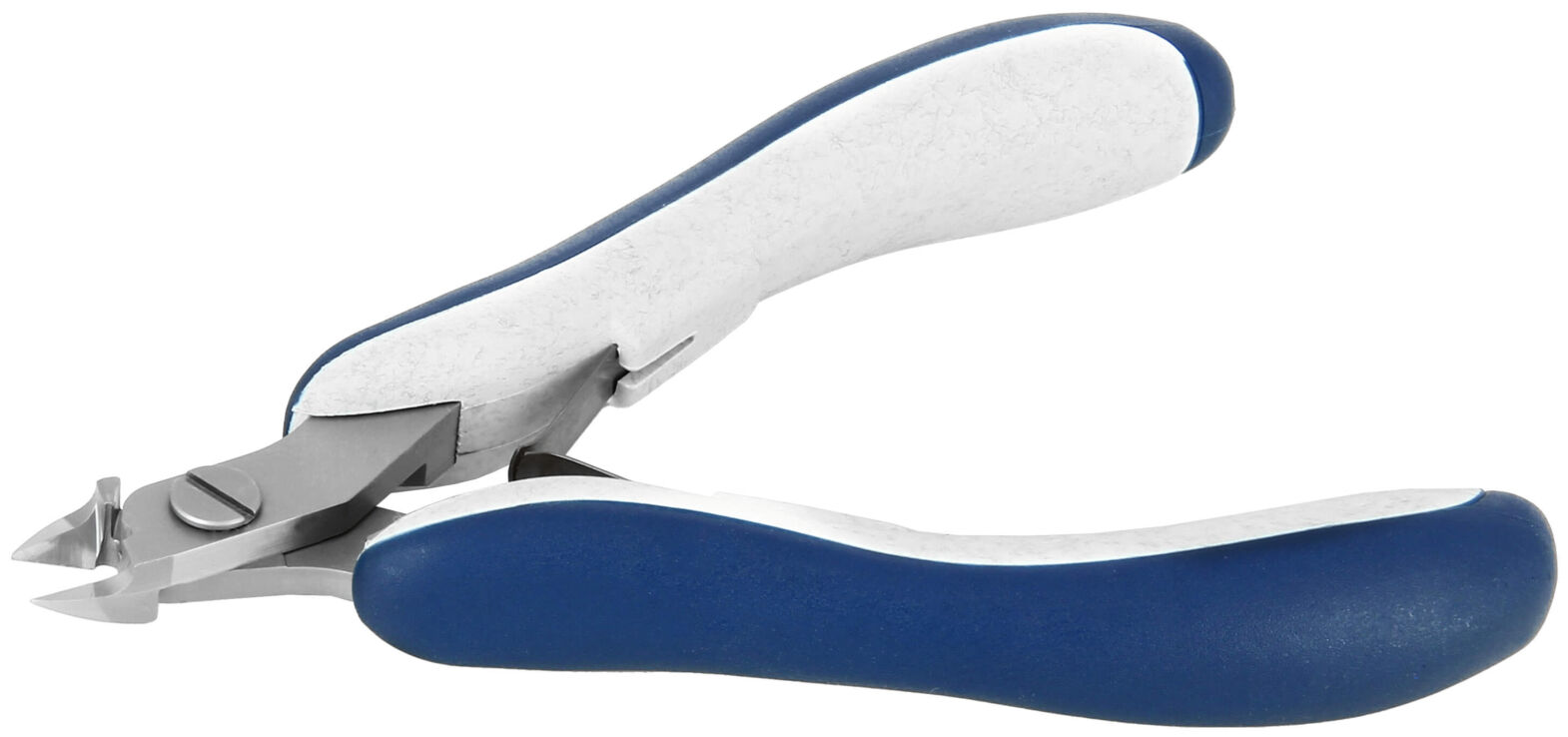

The image shows a pair of pliers with blue and white handles. The pliers have a movable, metallic tip for cutting. They are open and lying on a flat surface.

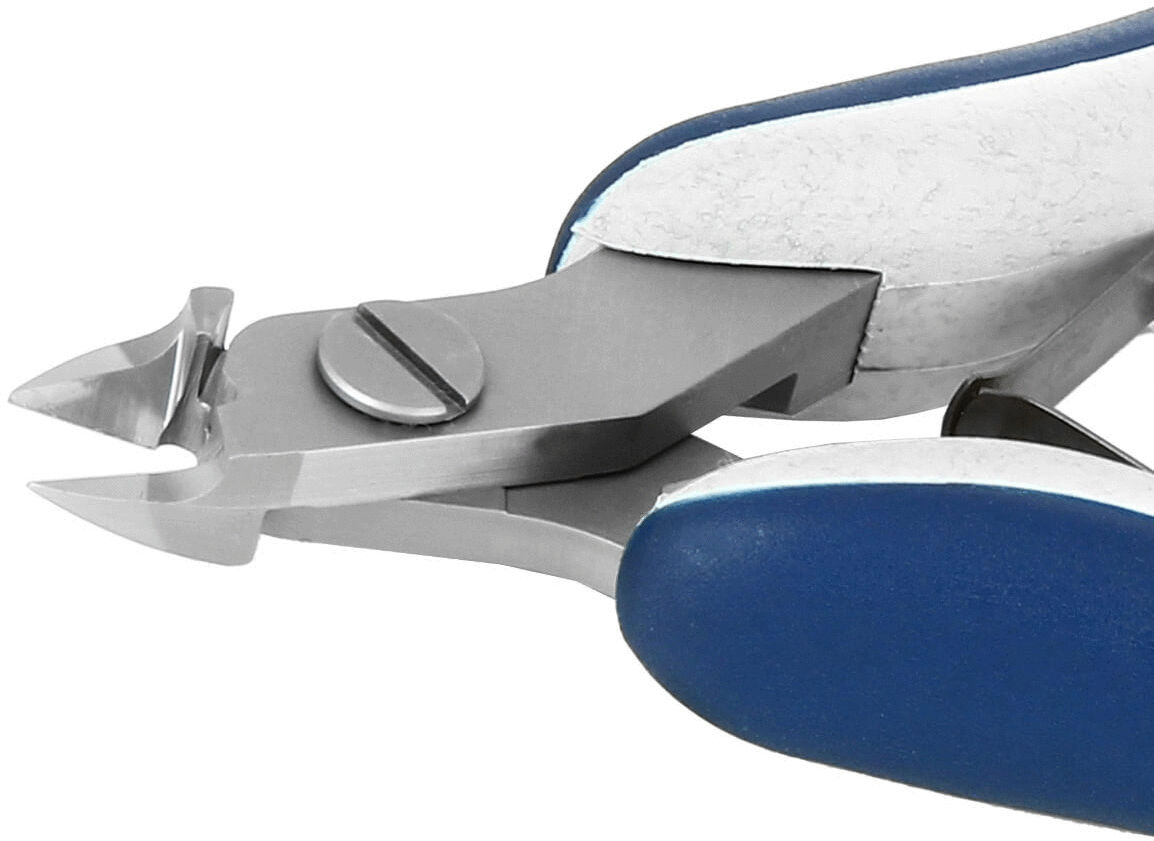

The image shows a nail clipper with shiny, sharp blades and ergonomic, blue handles. The clipper is open and the blades are in a slightly curved shape.
Preview: The image shows a pair of pliers with blue and white handles. The pliers have a movable, metallic tip for cutting. They are open and lying on a flat surface.
Preview: The image shows a nail clipper with shiny, sharp blades and ergonomic, blue handles. The clipper is open and the blades are in a slightly curved shape.
Diagonal cutting pliers ESD 5132 MICRO
(Product No.: I-ES5132.ESD)
The image shows a pair of pliers with blue and white handles. The pliers have a movable, metallic tip for cutting. They are open and lying on a flat surface.
The image shows a nail clipper with shiny, sharp blades and ergonomic, blue handles. The clipper is open and the blades are in a slightly curved shape.
Mobile Preview: The image shows a pair of pliers with blue and white handles. The pliers have a movable, metallic tip for cutting. They are open and lying on a flat surface.
Mobile Preview: The image shows a nail clipper with shiny, sharp blades and ergonomic, blue handles. The clipper is open and the blades are in a slightly curved shape.
Notice / Inquire

Diagonal cutting pliers ESD 5132 MICRO

Diagonal cutting pliers ESD 5132 MICRO

dpvlink:
30041
Bevel:
without bevel (flush cut)
Head type/size:
extra small
Head shape:
oval
Max Ø soft:
0.81 mm
Max Ø medium:
0.1 mm
Properties:
Further product information

at short notice at short notice
NEW
52,55 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Diagonal cutting pliers ESD 5132 MICRO

The ideal-tek 5132 MICRO ESD side cutter is a high-precision micro oval cutter, specifically designed for use in ESD-sensitive environments. This model is distinguished by its compact head dimensions, which allow access to very small areas, and a fully flush cutting edge, which ensures particularly clean cuts in small materials. The side cutter is equipped with an ESD Ergo-Tek Slim handle, which not only provides excellent grip but also increases comfort and ensures that the cutter is ideal for users with smaller hands.
The blades of the cutter have a hardness of 67 HRC, promising high cutting performance and durability. Weighing just 70 g and with a total length of 120 mm, this side cutter offers excellent handling. The sandblasted surface and TPE/PP handle material improve ergonomics and slip resistance.
Additional technical specifications include a maximum cutting capacity of 0.81 mm for soft and 0.1 mm for medium-hard materials, making it an indispensable tool for precise work.
Bevel
Bevel
without bevel (flush cut)
Head type/size
Head type/size
extra small
Head shape
Head shape
oval
Max Ø soft
Max Ø soft
0.81 mm
Max Ø medium
Max Ø medium
0.1 mm
AWG medium
AWG medium
38
AWG soft
AWG soft
38-20
Head thickness
Head thickness
6.4 mm
Blade length
Blade length
7 mm
Length
Length
120 mm
Tip width
Tip width
0.5 mm
Material
Material
steel
Stick material
Stick material
TPE / PP
Surface
Surface
sandblastered
ESD
ESD
yes
Head width
Head width
8 mm
Jaw length
Jaw length
7 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
70 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Diagonal cutting pliers ESD 5130/32 MICRO

The 513x series comprises high-precision cutters from the micro oval cutting pliers family. This geometry offers excellent resistance, while the head dimensions of the models allow access to very small areas. All models are equipped with a slim ESD Ergo-Tek handle that provides an excellent grip and is suitable for environments and components that are susceptible to electrostatic discharge.
The 5132 is equipped with a full-flush cutting edge that is ideal for very clean cuts on small material. The 5130 has a semi-flush cutting edge, which is suitable for robust cuts. All models have blades with a hardness of 67 HRC, ensuring high durability and precision.


Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Price
Compare
NEW
I-ES5130.ESD - Diagonal cutting pliers ESD 5130 MICRO
I-ES5130.ESD
Diagonal cutting pliers ESD 5130 MICRO
mini bevel
extra small
oval
1.02 mm
0.4 mm
52,55 EUR
NEW
I-ES5132.ESD - Diagonal cutting pliers ESD 5132 MICRO
I-ES5132.ESD
Diagonal cutting pliers ESD 5132 MICRO
without bevel (flush cut)
extra small
oval
0.81 mm
0.1 mm
52,55 EUR
