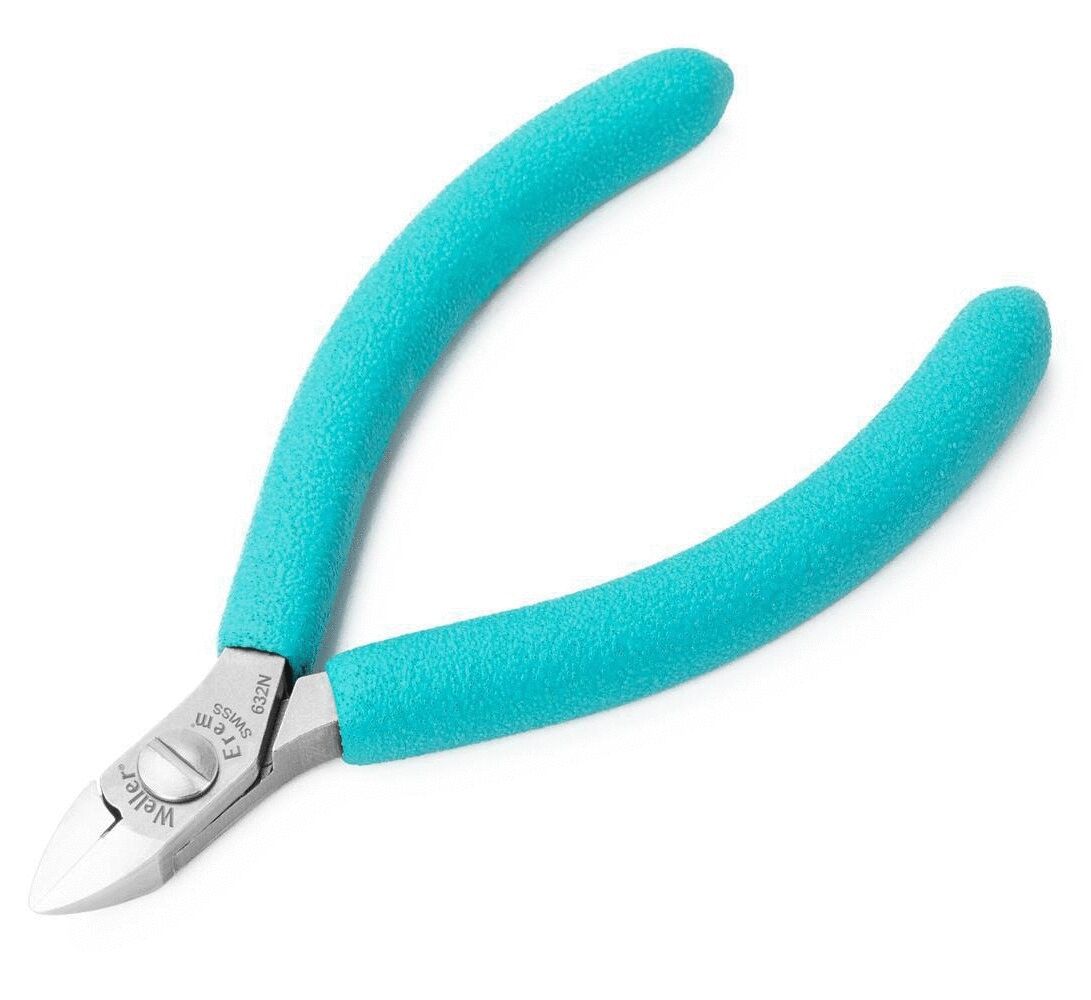

The image shows a pair of pliers with a silver head and turquoise, non-slip handles. The pliers have a sharp edge for cutting, suitable for delicate work.

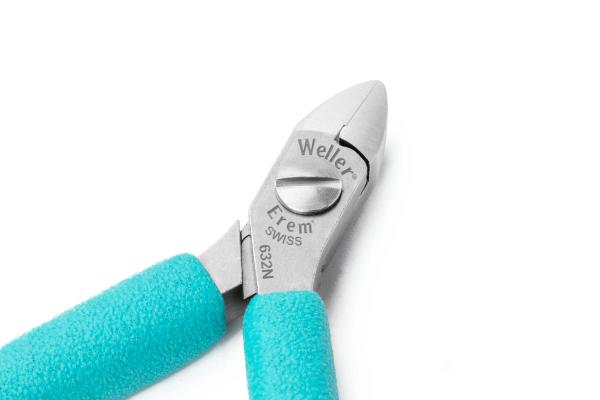

The image shows a small pair of pliers with sharp, flat cutting edges. The handles are in a striking turquoise and have a non-slip coating.

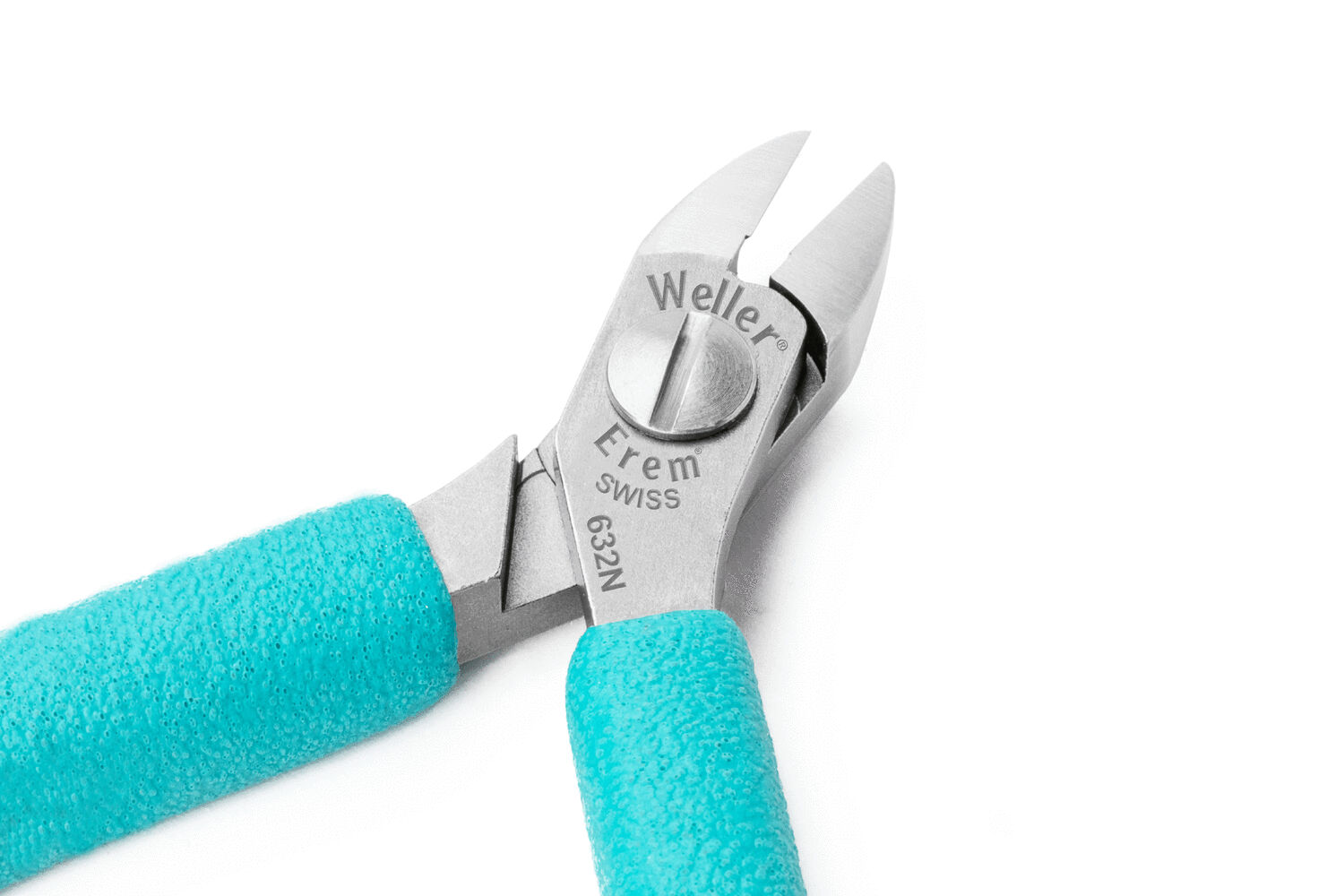

The image shows a silver pliers with pointed, sharp-edged blades and turquoise handles. It has a central, round screw for adjustment. It is suitable for fine work.

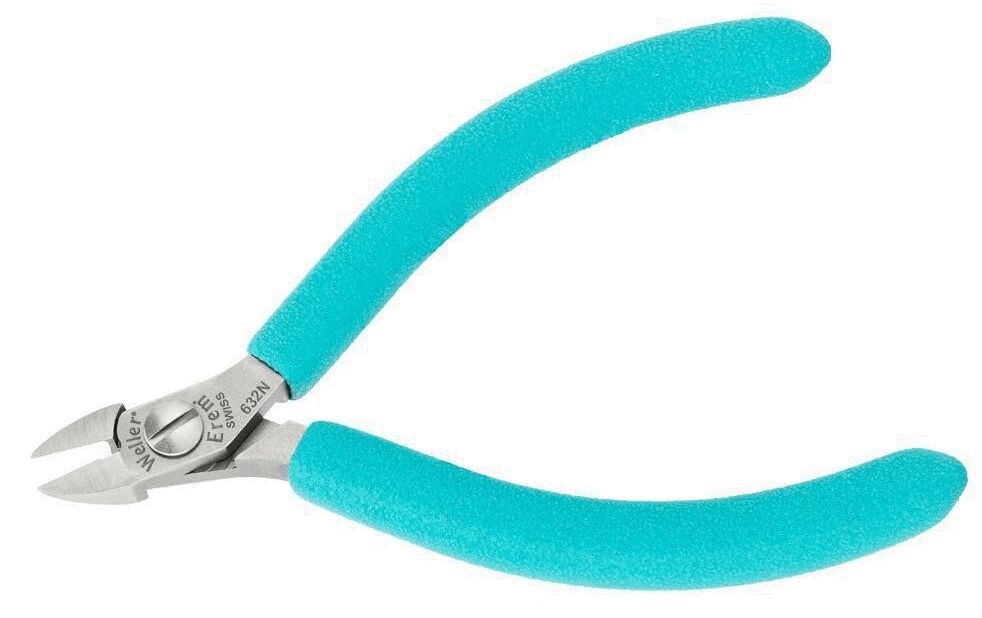

The image shows a pair of pliers with light blue, non-slip handles and a sharp, silver cutting edge. Manufacturer information is engraved on the metallic part.
Preview: The image shows a pair of pliers with a silver head and turquoise, non-slip handles. The pliers have a sharp edge for cutting, suitable for delicate work.
Preview: The image shows a small pair of pliers with sharp, flat cutting edges. The handles are in a striking turquoise and have a non-slip coating.
Preview: The image shows a silver pliers with pointed, sharp-edged blades and turquoise handles. It has a central, round screw for adjustment. It is suitable for fine work.
Preview: The image shows a pair of pliers with light blue, non-slip handles and a sharp, silver cutting edge. Manufacturer information is engraved on the metallic part.
Diagonal cutting pliers Micro 632N
(Product No.: 632N)
The image shows a pair of pliers with a silver head and turquoise, non-slip handles. The pliers have a sharp edge for cutting, suitable for delicate work.
The image shows a small pair of pliers with sharp, flat cutting edges. The handles are in a striking turquoise and have a non-slip coating.
The image shows a silver pliers with pointed, sharp-edged blades and turquoise handles. It has a central, round screw for adjustment. It is suitable for fine work.
The image shows a pair of pliers with light blue, non-slip handles and a sharp, silver cutting edge. Manufacturer information is engraved on the metallic part.
Mobile Preview: The image shows a pair of pliers with a silver head and turquoise, non-slip handles. The pliers have a sharp edge for cutting, suitable for delicate work.
Mobile Preview: The image shows a small pair of pliers with sharp, flat cutting edges. The handles are in a striking turquoise and have a non-slip coating.
Mobile Preview: The image shows a silver pliers with pointed, sharp-edged blades and turquoise handles. It has a central, round screw for adjustment. It is suitable for fine work.
Mobile Preview: The image shows a pair of pliers with light blue, non-slip handles and a sharp, silver cutting edge. Manufacturer information is engraved on the metallic part.
Notice

Diagonal cutting pliers Micro 632N

Diagonal cutting pliers Micro 632N

dpvlink:
2397
Bevel:
without bevel (flush cut)
Head type/size:
small
Max Ø soft:
1.29 mm
Max Ø medium:
0.68 mm
Head shape:
oval
Properties:
Further product information

available available
70,85 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers Micro 632N

The Weller Erem Micro 632N side cutter is a high-precision tool designed specifically for use in microelectronics and SMD work. It features a small head that facilitates access to hard-to-reach areas and is made of high-quality tool steel, with cutting edges hardened to over 60 HRc. This side cutter offers a non-reflective, ESD-safe surface and enables precise cuts without burrs (flush cut), ideal for soft materials such as copper wire and cables.
The overall length of the tool is 110 mm, with a blade length of 7.62 mm and a head thickness of 6 mm. The jaw length and head width are 10 mm and 9 mm respectively. The side cutter is suitable for wires up to a diameter of 1.29 mm (soft) and 0.68 mm (medium hard).
Additional features include a patented opening system that integrates the springs invisibly, thus minimizing the risk of injury, and the "Stop! Limit system" which prevents the crossing of the blades. The ESD-safe handles meet MIL-standard with a transition resistance between 10^5 and 10^9 Ohm. An optional wire holder is available that reduces the risk of eye injuries and damage to assemblies.
Bevel
Bevel
without bevel (flush cut)
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
1.29 mm
Max Ø medium
Max Ø medium
0.68 mm
Head shape
Head shape
oval
AWG medium
AWG medium
22
AWG soft
AWG soft
16
Head thickness
Head thickness
6 mm
Blade length
Blade length
7.62 mm
Length
Length
110 mm
Material
Material
Tool steel
ESD
ESD
yes
Head width
Head width
9 mm
Jaw length
Jaw length
10 mm
Type of pliers
Type of pliers
Mini diagonal cutting pliers
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 483
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Bevel
Head type/size
Max Ø soft
Max Ø medium
Max Ø hard
Head shape
Price
Compare
612N - Diagonal cutting pliers Micro 612N
612N
Diagonal cutting pliers Micro 612N
with bevel
small
1.29 mm
0.78 mm
0.48 mm
oval
67,95 EUR
622N - Diagonal cutting pliers Micro 622N
622N
Diagonal cutting pliers Micro 622N
without bevel
small
1.29 mm
0.78 mm

oval
65,10 EUR
622NA - Diagonal cutting pliers Micro 622NA
622NA
Diagonal cutting pliers Micro 622NA
without bevel
small
1.02 mm
0.68 mm

oval
67,00 EUR
622NB - Diagonal cutting pliers Micro 622NB
622NB
Diagonal cutting pliers Micro 622NB
without bevel
small
0.78 mm
0.57 mm

snipe nose
65,10 EUR
632N - Diagonal cutting pliers Micro 632N
632N
Diagonal cutting pliers Micro 632N
without bevel (flush cut)
small
1.29 mm
0.68 mm

oval
70,85 EUR
670EP - Tip cutting pliers 670EP
670EP
Tip cutting pliers 670EP
without bevel
small
0.58 mm
0.48 mm

angled
91,90 EUR
