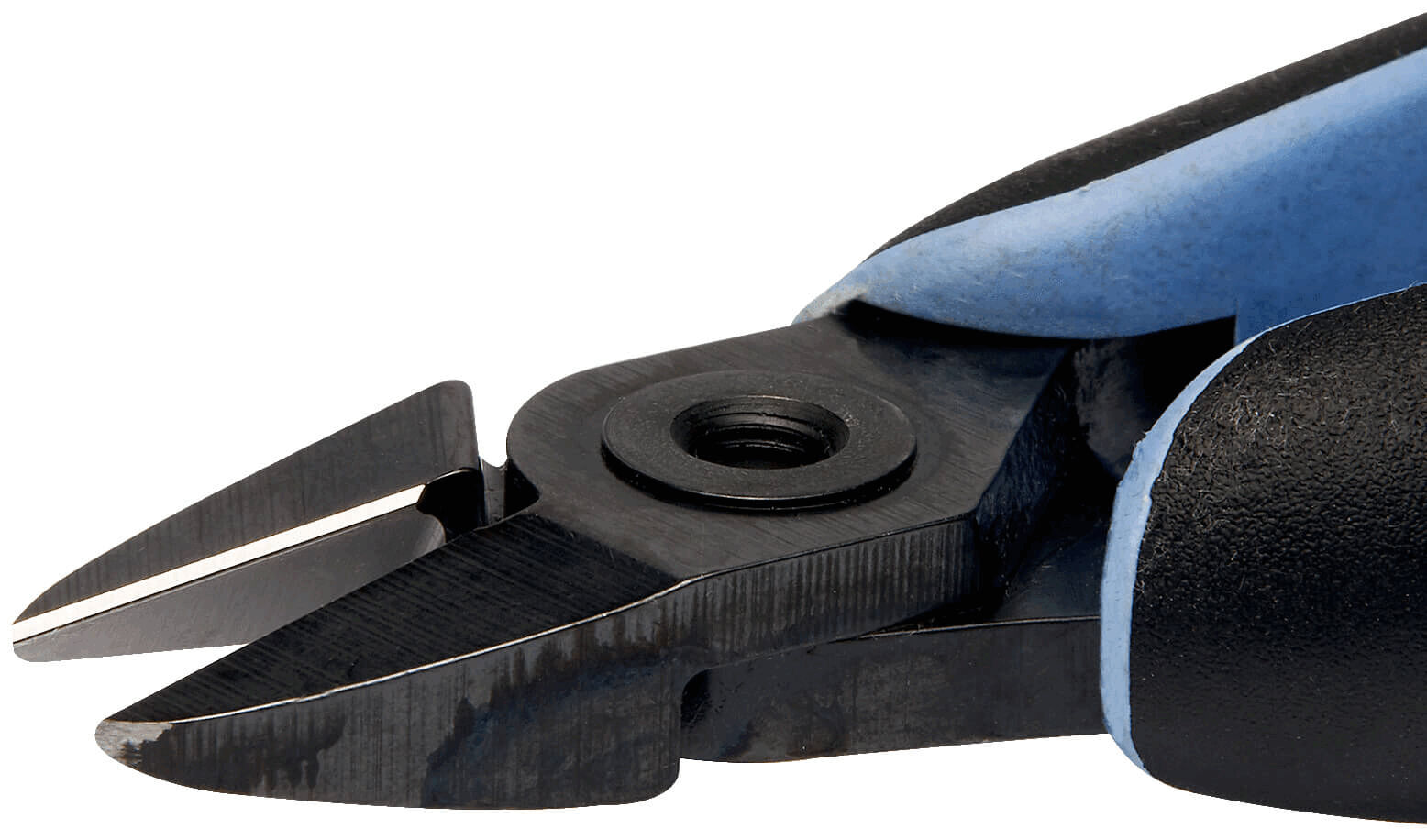

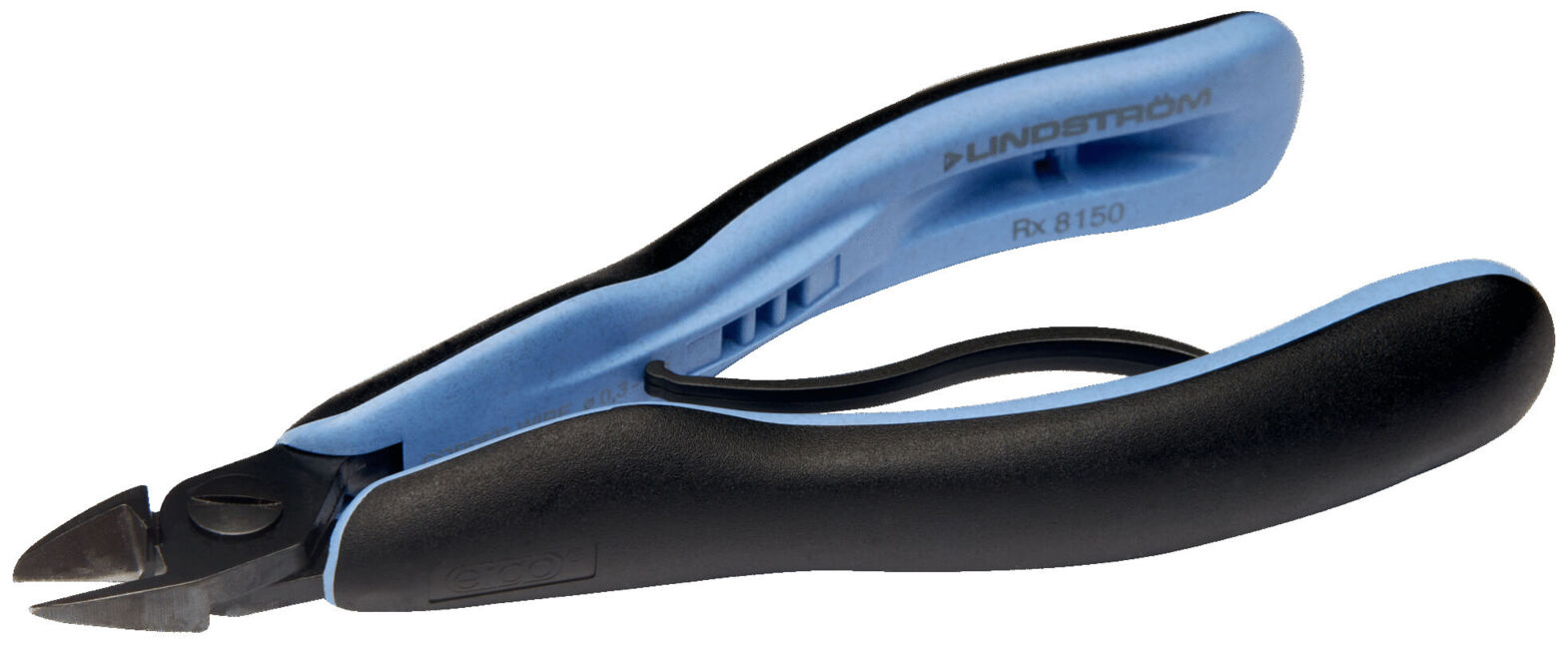

The image shows a special pair of pliers with sharp blades. The handle is ergonomically designed and features a combination of black and blue plastic. It is used for cutting.

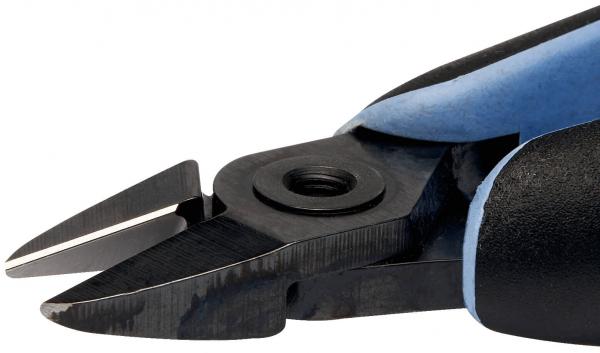

The image shows a cutter with a black handle and a blue, curved plastic casing. The blade is sharp and made of metal, ideal for cutting material.

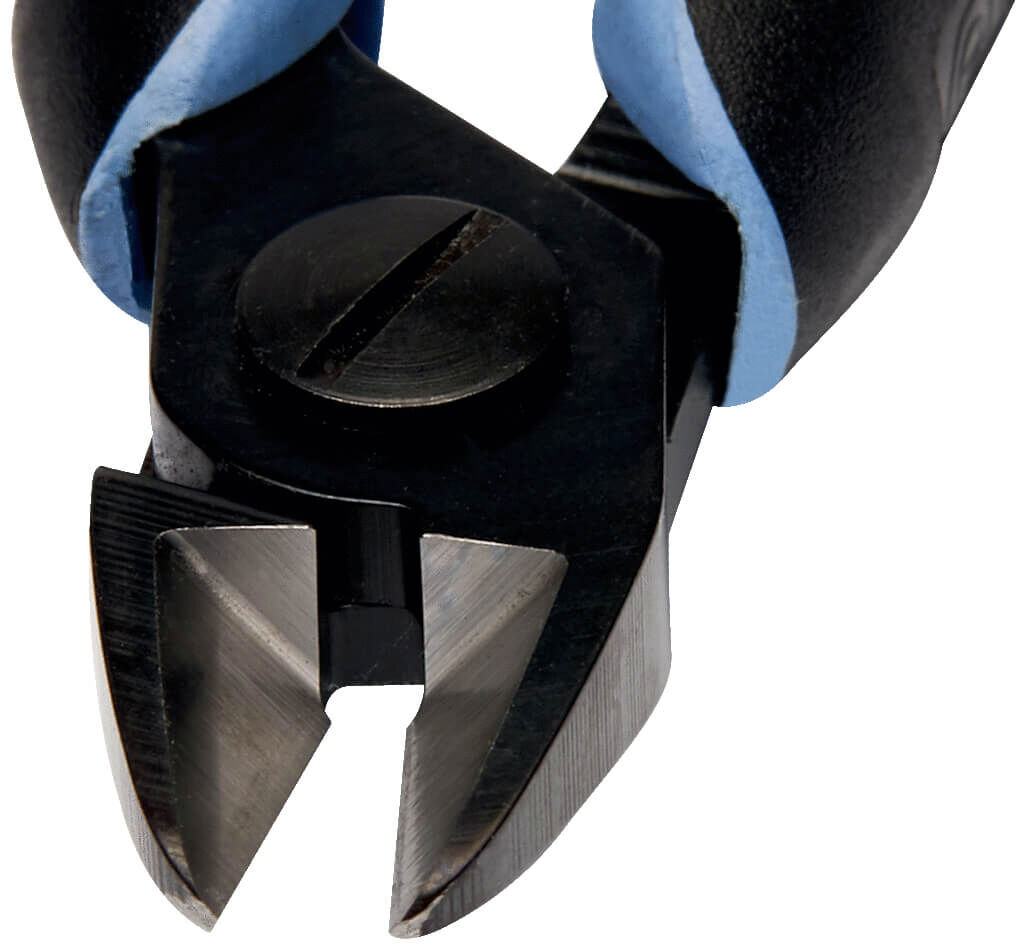

The image shows a pair of pliers with two black handles and blue rubber inserts. The cutting edge is sharp and V-shaped, ideal for cutting wires.

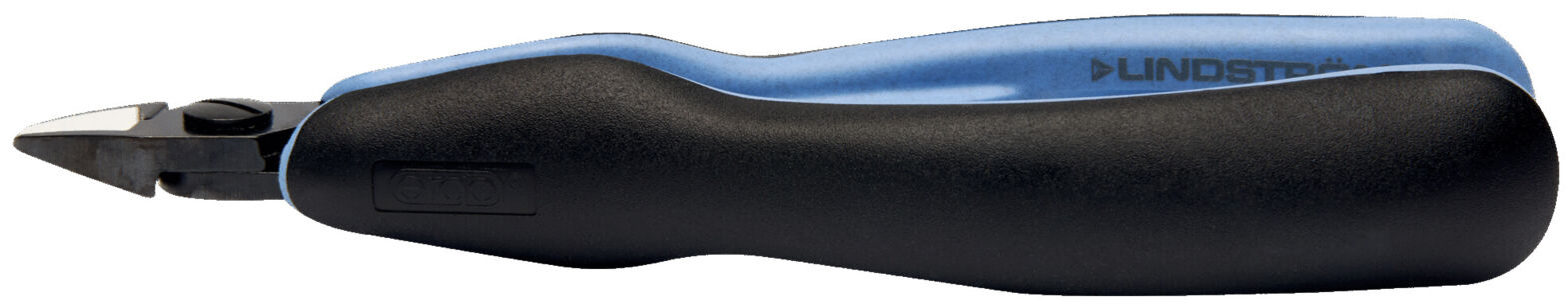

The image displays a side-cut view of pliers with pointed, sharp blades. The handle is black and partially blue, the blades are made of metallic material and are very precisely shaped.
Preview: The image shows a special pair of pliers with sharp blades. The handle is ergonomically designed and features a combination of black and blue plastic. It is used for cutting.
Preview: The image shows a cutter with a black handle and a blue, curved plastic casing. The blade is sharp and made of metal, ideal for cutting material.
Preview: The image shows a pair of pliers with two black handles and blue rubber inserts. The cutting edge is sharp and V-shaped, ideal for cutting wires.
Preview: The image displays a side-cut view of pliers with pointed, sharp blades. The handle is black and partially blue, the blades are made of metallic material and are very precisely shaped.
Diagonal cutting pliers RX8161
(Product No.: RX8161)
The image shows a special pair of pliers with sharp blades. The handle is ergonomically designed and features a combination of black and blue plastic. It is used for cutting.
The image shows a cutter with a black handle and a blue, curved plastic casing. The blade is sharp and made of metal, ideal for cutting material.
The image shows a pair of pliers with two black handles and blue rubber inserts. The cutting edge is sharp and V-shaped, ideal for cutting wires.
The image displays a side-cut view of pliers with pointed, sharp blades. The handle is black and partially blue, the blades are made of metallic material and are very precisely shaped.
Mobile Preview: The image shows a special pair of pliers with sharp blades. The handle is ergonomically designed and features a combination of black and blue plastic. It is used for cutting.
Mobile Preview: The image shows a cutter with a black handle and a blue, curved plastic casing. The blade is sharp and made of metal, ideal for cutting material.
Mobile Preview: The image shows a pair of pliers with two black handles and blue rubber inserts. The cutting edge is sharp and V-shaped, ideal for cutting wires.
Mobile Preview: The image displays a side-cut view of pliers with pointed, sharp blades. The handle is black and partially blue, the blades are made of metallic material and are very precisely shaped.
Notice

Diagonal cutting pliers RX8161

Diagonal cutting pliers RX8161

dpvlink:
9627
Type of pliers:
Diagonal cutting pliers
Bevel:
mini bevel
Head type/size:
large
Max Ø soft:
2.05 mm
Max Ø hard:
0.81 mm
Head shape:
oval
Properties:
Further product information

at short notice at short notice
84,85 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers RX8161

The Lindström RX8161 side cutter, developed as part of the ERGO™ process, combines precision and ergonomics in a high-performance tool. This precision side cutter features oval jaws and is equipped with 2-component Ergo handles that provide a thermoplastic surface on hard polypropylene to ensure optimal grip. The handles are ESD-safe and made from a synthetic dual-component material, making them particularly suitable for electronics work.
The cutting capacity of the tool is designed for copper wire, with the cutting edges induction-hardened for long life and brought to a hardness of 63-65 HrC. The friction-reducing screw joint increases the precision of the cutting edges. The side cutter offers various cutting types: Micro-Bevel®, Flush, and Ultra-Flush®, to meet diverse requirements.
The length of the tool is 147 mm with a weight of 97 g, and it is equipped with a safety spring that can be adjusted in three positions. The maximum cutting capacity is 2.0 mm for soft and medium-hard materials and 0.8 mm for hard materials. The burnished surface and robust steel construction guarantee lasting performance and reliability.
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
mini bevel
Head type/size
Head type/size
large
Max Ø soft
Max Ø soft
2.05 mm
Max Ø hard
Max Ø hard
0.81 mm
Head shape
Head shape
oval
AWG hard
AWG hard
20
AWG soft
AWG soft
12
Head thickness
Head thickness
8 mm
Length
Length
147 mm
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
brilliant
ESD
ESD
yes
Head width
Head width
16 mm
Jaw length
Jaw length
16 mm
Version
Version
with opening spring
Weight
Weight
97 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.

Accessories

Accessories

The image shows a curved, black metal clip or holder. It has small notches at both ends and is overall slim and light. Its shape resembles a boomerang.
Return spring for RX series
RX 01 opening spring series RX
PU = 5 pieces
++ LINDSTROM RX-series ESD ++
dpvlink
28635

5,70 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 481
Complete Catalog 2023 - 2024

Product Family

Lindström ESD cutting pliers RX series

Article image
Article description
Type of pliers
Bevel
Head type/size
Max Ø soft
Max Ø medium
Head shape
Max Ø hard
Degree of bending
Price
Compare
RX8130 - Diagonal cutting pliers RX8130
RX8130
Diagonal cutting pliers RX8130
Diagonal cutting pliers
with bevel
extra small
2.05 mm
1.02 mm
oval


72,55 EUR
RX8131 - Diagonal cutting pliers RX8131
RX8131
Diagonal cutting pliers RX8131
Diagonal cutting pliers
with bevel
extra small
2.05 mm
1.02 mm
oval


74,20 EUR
RX8132 - Diagonal cutting pliers RX8132
RX8132
Diagonal cutting pliers RX8132
Diagonal cutting pliers
without bevel (flush cut)
extra small
2.05 mm
0.81 mm
oval


81,85 EUR
RX8140 - Diagonal cutting pliers RX8140
RX8140
Diagonal cutting pliers RX8140
Diagonal cutting pliers
with bevel
small
2.05 mm
1.29 mm
oval
0.51 mm

69,00 EUR
RX8141 - Diagonal cutting pliers RX8141
RX8141
Diagonal cutting pliers RX8141
Diagonal cutting pliers
mini bevel
small
2.05 mm
1.29 mm
oval
0.51 mm

70,65 EUR
RX8142 - Diagonal cutting pliers RX8142
RX8142
Diagonal cutting pliers RX8142
Diagonal cutting pliers
without bevel (flush cut)
small
2.05 mm
1.02 mm
oval


78,80 EUR
RX8143 - Diagonal cutting pliers RX8143
RX8143
Diagonal cutting pliers RX8143
Diagonal cutting pliers
with bevel
small
1.29 mm
0.81 mm
snipe nose


70,95 EUR
RX8144 - Diagonal cutting pliers RX8144
RX8144
Diagonal cutting pliers RX8144
Diagonal cutting pliers
mini bevel
small
1.29 mm
0.81 mm
snipe nose


72,55 EUR
RX8145 - Diagonal cutting pliers RX8145
RX8145
Diagonal cutting pliers RX8145
Diagonal cutting pliers
without bevel (flush cut)
small
1.02 mm
0.81 mm
snipe nose


79,75 EUR
RX8146 - Diagonal cutting pliers RX8146
RX8146
Diagonal cutting pliers RX8146
Diagonal cutting pliers
with bevel
small
1.02 mm
0.81 mm
snipe nose / tapered


74,20 EUR
RX8147 - Diagonal cutting pliers RX8147
RX8147
Diagonal cutting pliers RX8147
Diagonal cutting pliers
mini bevel
small
1.02 mm
0.81 mm
snipe nose / tapered


74,80 EUR
RX8148 - Diagonal cutting pliers RX8148
RX8148
Diagonal cutting pliers RX8148
Diagonal cutting pliers
without bevel (flush cut)
small
1.02 mm
0.81 mm
snipe nose / tapered


76,55 EUR
RX8150 - Diagonal cutting pliers RX8150
RX8150
Diagonal cutting pliers RX8150
Diagonal cutting pliers
with bevel
regular
2.05 mm
1.63 mm
oval
0.81 mm

71,25 EUR
RX8151 - Diagonal cutting pliers RX8151
RX8151
Diagonal cutting pliers RX8151
Diagonal cutting pliers
mini bevel
regular
2.05 mm
1.63 mm
oval
0.81 mm

75,10 EUR
RX8152 - Diagonal cutting pliers RX8152
RX8152
Diagonal cutting pliers RX8152
Diagonal cutting pliers
without bevel (flush cut)
regular
2.05 mm
1.29 mm
oval


84,85 EUR
RX8160 - Diagonal cutting pliers RX8160
RX8160
Diagonal cutting pliers RX8160
Diagonal cutting pliers
with bevel
large
2.05 mm

oval
0.81 mm

74,50 EUR
RX8161 - Diagonal cutting pliers RX8161
RX8161
Diagonal cutting pliers RX8161
Diagonal cutting pliers
mini bevel
large
2.05 mm

oval
0.81 mm

84,85 EUR
RX8162 - Diagonal cutting pliers RX8162
RX8162
Diagonal cutting pliers RX8162
Diagonal cutting pliers
without bevel (flush cut)
large
2.05 mm
1.63 mm
oval


98,00 EUR
RX8149 - Precision diagonal cutting pliers RX8149
RX8149
Precision diagonal cutting pliers RX8149
Diagonal cutting pliers
mini bevel
small
0.64 mm

snipe nose


148,80 EUR
RX8233A - Micro diagonal cutting pliers RX8233A, long jaws, 10° bent
RX8233A
Micro diagonal cutting pliers RX8233A, long jaws, 10° bent
end cutting pliers
mini bevel
small
0.64 mm

rounded


165,30 EUR
RX8237 - Micro diagonal cutting pliers RX8237A, long jaws, 50° bent
RX8237
Micro diagonal cutting pliers RX8237A, long jaws, 50° bent
Oblique end cutting pliers
mini bevel
extra small
0.64 mm

angled

50 °
208,60 EUR
RX8234 - Micro diagonal cutting pliers RX8234A, short jaws, 10° bent
RX8234
Micro diagonal cutting pliers RX8234A, short jaws, 10° bent
Diagonal cutting pliers
mini bevel
extra small
0,4 mm

angled / short

10 °
245,70 EUR
RX8211 - Oblique end cutting pliers RX8211, short jaws, 20° bent
RX8211
Oblique end cutting pliers RX8211, short jaws, 20° bent
oblique cutting pliers
mini bevel
small
1.15 mm

angled

20 °
116,20 EUR
RX8247 - Oblique end cutting pliers RX8247, long jaws 45° bent
RX8247
Oblique end cutting pliers RX8247, long jaws 45° bent
Oblique end cutting pliers
mini bevel
small
1.02 mm

angled

45 °
127,15 EUR
RX8248 - Oblique end cutting pliers RX8248, long tapered jaws, 45° bent
RX8248
Oblique end cutting pliers RX8248, long tapered jaws, 45° bent
Oblique end cutting pliers
mini bevel
small
0.81 mm

angled / tapered

45 °
136,35 EUR
