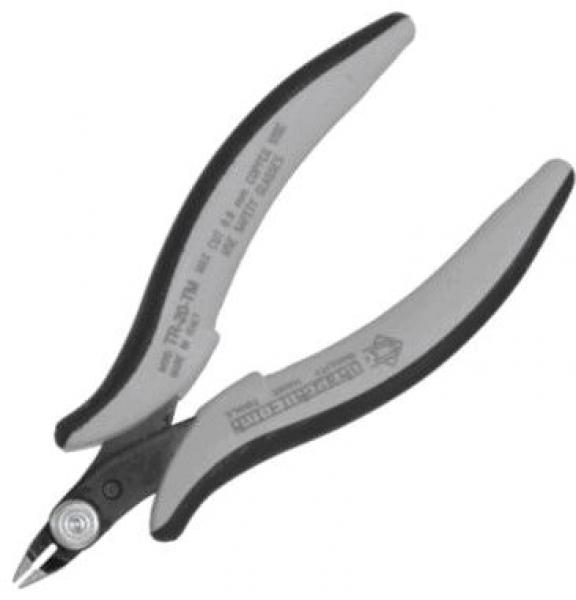

Diagonal cutting pliers TR-20-TM.(D)

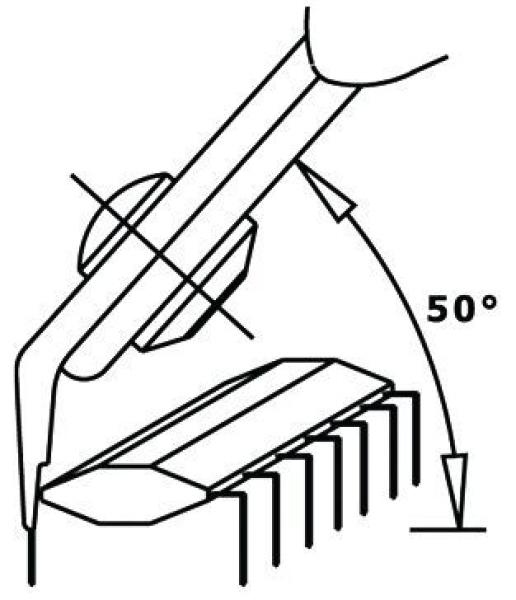

The side cutter TR-20-TM.D from Piergiacomi has been specially developed for precision work in electronics manufacturing. This tool is characterized by its angled head shape with a bending angle of 50°, which significantly facilitates the cutting of DIP pins. With a length of 129 mm and a maximum cutting force of 2 kg, the side cutter is ideal for fine work on copper wires up to a diameter of 0.64 mm (AWG 22).
The micro cutting pliers are made of high-quality steel and have an ESD safety feature, qualifying them for use in ESD-sensitive environments. The small head type enables precise cuts without burrs, which increases accuracy in work. Due to its compact size and special design, the side cutter TR-20-TM.D is an indispensable tool for technicians working with sensitive electronic components.
The micro cutting pliers are made of high-quality steel and have an ESD safety feature, qualifying them for use in ESD-sensitive environments. The small head type enables precise cuts without burrs, which increases accuracy in work. Due to its compact size and special design, the side cutter TR-20-TM.D is an indispensable tool for technicians working with sensitive electronic components.
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Length [mm] Length [mm]
- 129 mm
- Bevel Bevel
- without bevel
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 50 °
- Max Ø soft Max Ø soft
- 0.64 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 2 kg
- Head type/size Head type/size
- small
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

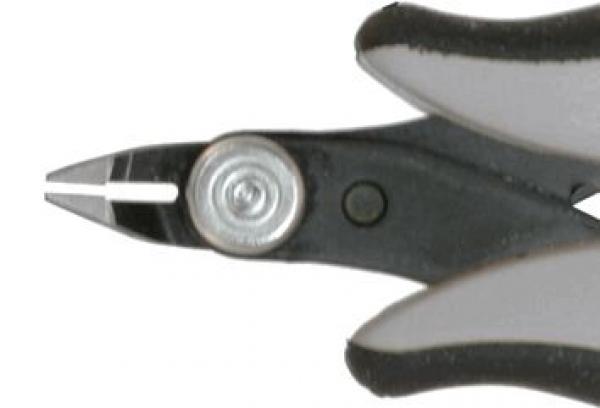

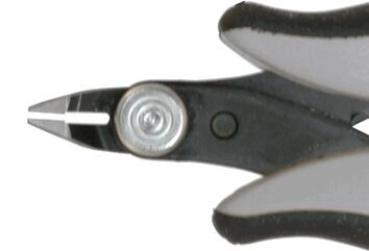

Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Type of pliers
Length [mm]
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm
with safety spring
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
1.02 mm
with safety spring
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm
Diagonal cutting pliers
131 mm
without bevel
angled
50 °
0.64 mm
Diagonal cutting pliers
129 mm
without bevel
angled
50 °
0.64 mm
Oblique end cutting pliers
132 mm
small bevel
straight
0.64 mm
