Main page » Products » Pliers » Cutting pliers » Diagonal cutting pliers TR-25-15-L.D

Diagonal cutting pliers TR-25-15-L.D

(Product No.: TR-25-15-L.D)

(Product No.: TR-25-15-L.D)

Diagonal cutting pliers TR-25-15-L.D

Name: Diagonal cutting pliers TR-25-15-L.D
SKU: TR-25-15-L.D
Price: 13.20 EUR
Availability: InStock

ArticleNo: TR-25-15-L.D

dpvlink:

1821

Type of pliers:

Diagonal cutting pliers

Bevel:

reversed bevel

Properties:

Further product information

Availability: available

available

13,20 EUR

1 PCE

Compare

Notice

Product Info

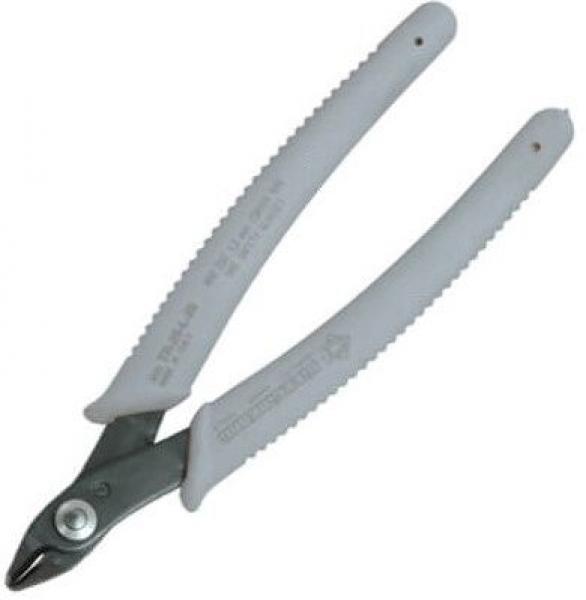

Side Cutter TR-25-15-L.D

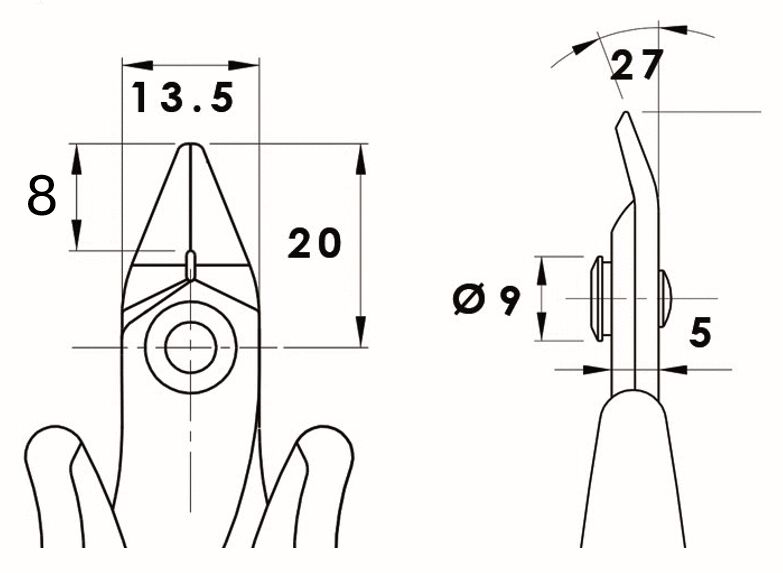

The side cutter TR-25-15-L.D from the Piergiacomi Evolution series is specifically designed for precise work in electronics manufacturing. The dissipative ESD design complies with DIN EN 61340-5-1 and protects sensitive components from electrostatic discharge. The longer handles of the side cutter reduce strain on the hand, which is beneficial during long working hours. The reversed edge allows for precise cuts. Technical Specifications: - Type: Side cutter - Length: 160 mm - Edge: Reversed - Material: Steel - Head shape: Angled - ESD: Yes - AWG medium: 16 - Max. diameter medium: 1.3 mm - Cutting force: 3 kg

Details

Type of pliers Type of pliers: Diagonal cutting pliers
Bevel Bevel: reversed bevel
AWG medium AWG medium: 16
Max Ø medium Max Ø medium: 1.3 mm
Length [mm] Length [mm]: 160 mm
Material Material: steel
ESD ESD: yes
Cutting force Cutting force: 3 kg
Head shape Head shape: oblique

Pictograms

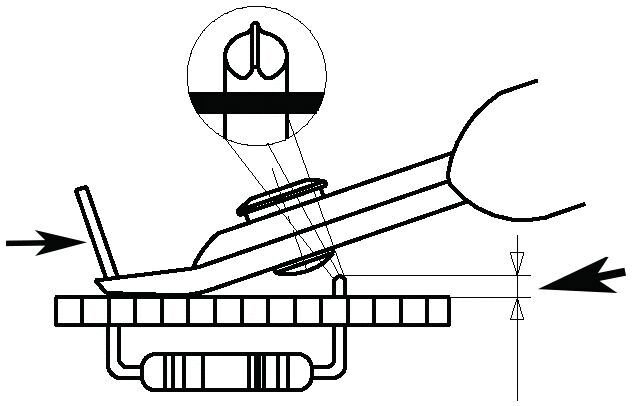

Reversed bevel

Special shape of the cutting edge where the cutting edges are inclined inwards rather than outwards. This shape makes it possible to make particularly fine and precise cuts by pulling the material into the cutting edges instead of pushing it outwards.
