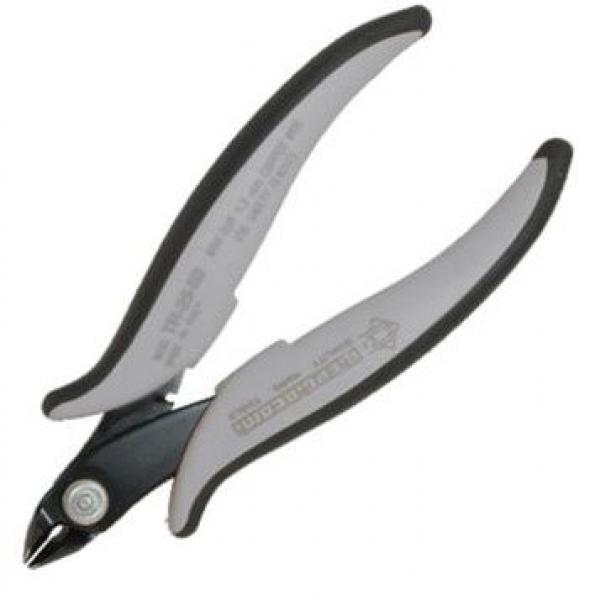

Diagonal cutting pliers TR-25-50.D
Diagonal cutting pliers TR-25-50.D

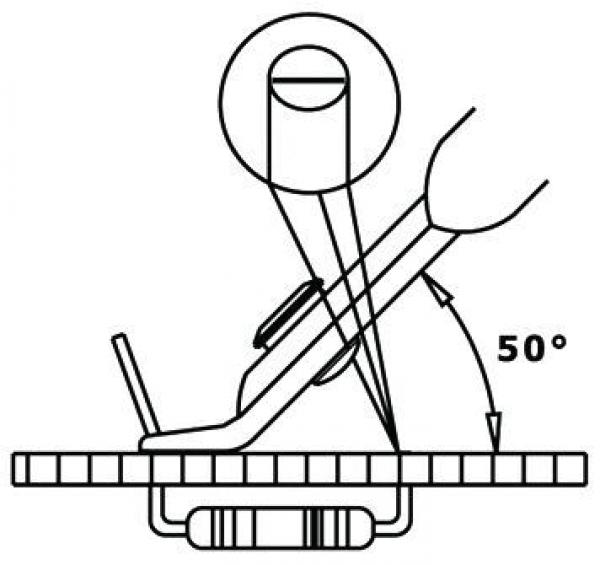

The side cutter TR-25-50.D from Piergiacomi combines functionality with ergonomic design. This model is characterized by its light and handy construction, with the cutting edges angled 50° to the handle, which allows for improved handling. With a length of 135 mm and a maximum cutting capacity of 1.30 mm for copper wire (AWC Cu 16), this side cutter is ideal for precise cutting tasks.The features include a small bevel and a small head, specifically designed for fine and detailed work. The ESD safety ensures that the side cutter can also be used in sensitive electronic working environments. Made from high-quality steel, the tool offers a cutting force of 5 kg and is robust enough for regular use.

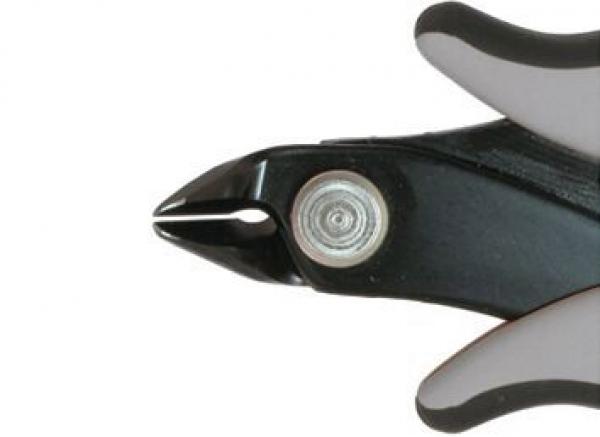

Thanks to its compact head shape and special bend, the TR-25-50.D is an indispensable tool for technical professionals who value precision and reliability.
Details
- Length Length
- 135 mm
- Bevel Bevel
- without bevel
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 50 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head type/size Head type/size
- small
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Diagonal cutting pliers series Evolution
Article image
Article description
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
-26%
138 mm
without bevel
angled
27 °
1.29 mm
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
