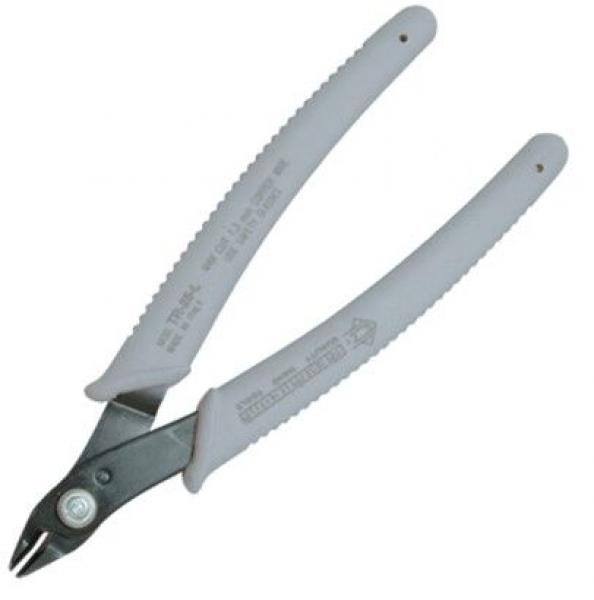

Diagonal cutting pliers TR-25-L-A.D

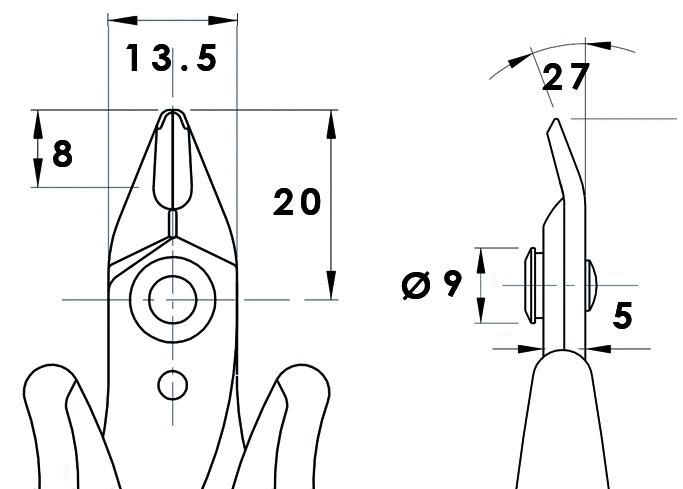

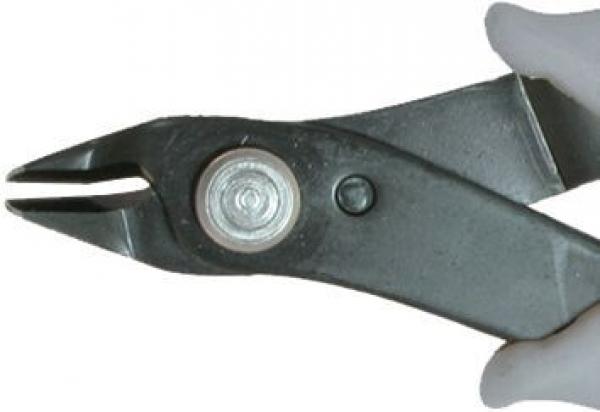

The side cutter TR-25-L-A.D from Piergiacomi is specially designed for precise and fatigue-free cutting tasks. This model features long handles that significantly reduce the effort required during cutting. With a total length of 160 mm and a small jaw, the side cutter offers optimal handling. The angled head shape with a head width of 13.5 mm and a head thickness of 5 mm allows for precise work in hard-to-reach areas.
The DIN EN 61340-5-1 compliant ESD version ensures that the side cutter is dissipative, making it ideal for working on electrostatically sensitive components. The built-in safety spring further supports controlled handling. The tool cuts soft materials up to a diameter of 1.29 mm and has a blade length of 8 mm. Made from robust steel, this side cutter ensures durability and reliability with a cutting force of 3 kg and a bending degree of 27°.
The DIN EN 61340-5-1 compliant ESD version ensures that the side cutter is dissipative, making it ideal for working on electrostatically sensitive components. The built-in safety spring further supports controlled handling. The tool cuts soft materials up to a diameter of 1.29 mm and has a blade length of 8 mm. Made from robust steel, this side cutter ensures durability and reliability with a cutting force of 3 kg and a bending degree of 27°.
Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Version Version
- with safety spring
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 8 mm
- Length [mm] Length [mm]
- 160 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 3 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
