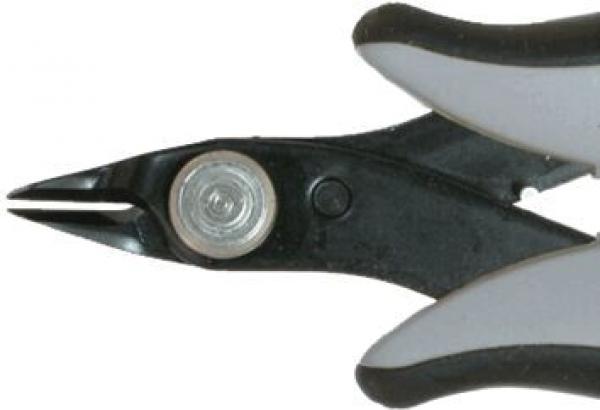

The image shows a small pair of pliers with gray and black handles. The pliers have a pointed, sharp edge for cutting. They are compact and ergonomically designed.

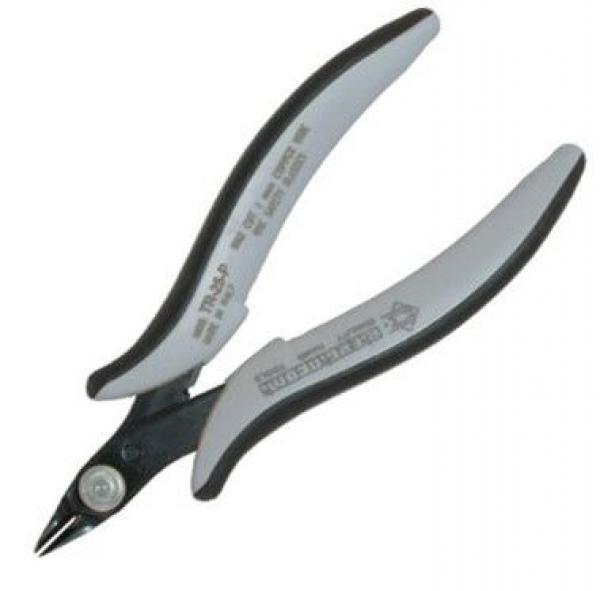

The image shows a small pair of pliers with gray handles and a black body. The pliers have a pointed, narrow blade suitable for gripping or cutting.

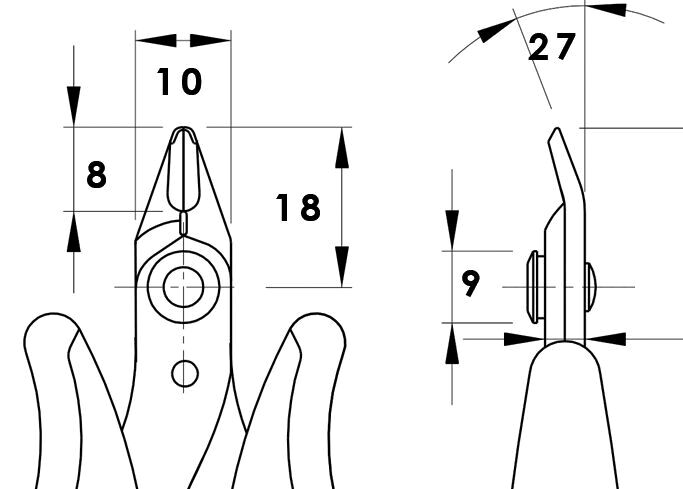

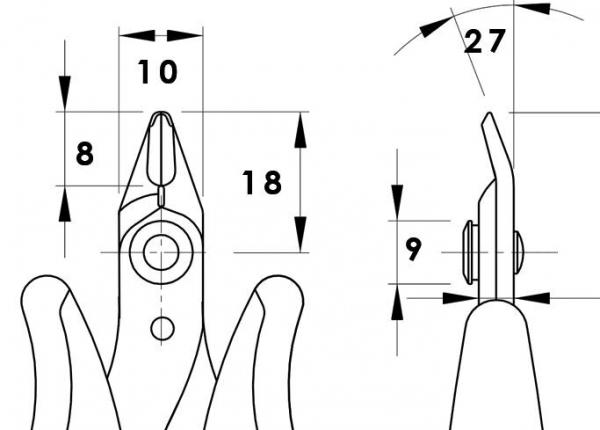

The image displays a technical drawing of a pair of pliers from the top and side views. Dimensions are indicated: lengths and diameters in millimeters. The pliers have a pointed shape and ergonomic handles.
Preview: The image shows a small pair of pliers with gray and black handles. The pliers have a pointed, sharp edge for cutting. They are compact and ergonomically designed.
Preview: The image shows a small pair of pliers with gray handles and a black body. The pliers have a pointed, narrow blade suitable for gripping or cutting.
Preview: The image displays a technical drawing of a pair of pliers from the top and side views. Dimensions are indicated: lengths and diameters in millimeters. The pliers have a pointed shape and ergonomic handles.
Diagonal cutting pliers TR-25-P A.D
(Product No.: TR-25-P-A.D)
The image shows a small pair of pliers with gray and black handles. The pliers have a pointed, sharp edge for cutting. They are compact and ergonomically designed.
The image shows a small pair of pliers with gray handles and a black body. The pliers have a pointed, narrow blade suitable for gripping or cutting.
The image displays a technical drawing of a pair of pliers from the top and side views. Dimensions are indicated: lengths and diameters in millimeters. The pliers have a pointed shape and ergonomic handles.
Mobile Preview: The image shows a small pair of pliers with gray and black handles. The pliers have a pointed, sharp edge for cutting. They are compact and ergonomically designed.
Mobile Preview: The image shows a small pair of pliers with gray handles and a black body. The pliers have a pointed, narrow blade suitable for gripping or cutting.
Mobile Preview: The image displays a technical drawing of a pair of pliers from the top and side views. Dimensions are indicated: lengths and diameters in millimeters. The pliers have a pointed shape and ergonomic handles.
Notice

Diagonal cutting pliers TR-25-P A.D

Diagonal cutting pliers TR-25-P A.D

dpvlink:
2100
Type of pliers:
Diagonal cutting pliers
Length :
132 mm
Bevel:
without bevel
Head shape:
angled
Degree of bending:
27 °
Max Ø soft:
1.02 mm
Version:
with opening spring
Properties:
Further product information

available available
11,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers TR-25-P A.D

The TR-25-P-A.D side cutter from Piergiacomi is a high-precision micro cutting plier, specifically designed for extremely demanding cutting tasks. With a total length of 132 mm and a blade length of 8 mm, this tool enables precise cuts even in small areas. The cutting plier has a maximum cutting capacity for soft materials up to a diameter of 1.02 mm (AWG 18), making it ideal for fine, precise tasks.
The version with safety spring and the angled head increase handling safety and comfort during use. The material made of robust steel and the ESD safety features ensure durability and reliability of the tool under various working conditions. The compact head thickness of 4 mm and a head width of 10 mm, along with a jaw length of also 8 mm, support the precise guidance of the side cutter. The bend angle of 27° and a cutting force of 3.5 kg complete the profile of this efficient tool.
Type of pliers
Type of pliers
Diagonal cutting pliers
Length
Length
132 mm
Bevel
Bevel
without bevel
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
Max Ø soft
Max Ø soft
1.02 mm
Version
Version
with opening spring
AWG soft
AWG soft
18
Head thickness
Head thickness
4 mm
Blade length
Blade length
8 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
3.5 kg
Head type/size
Head type/size
small
Head width
Head width
18 mm
Jaw length
Jaw length
8 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
