Diagonal cutting pliers TR-25A.D

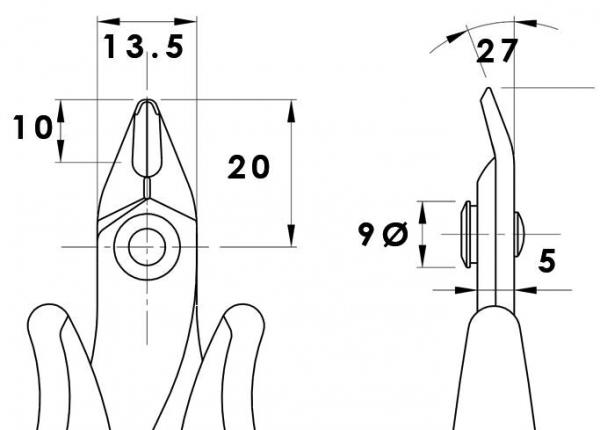

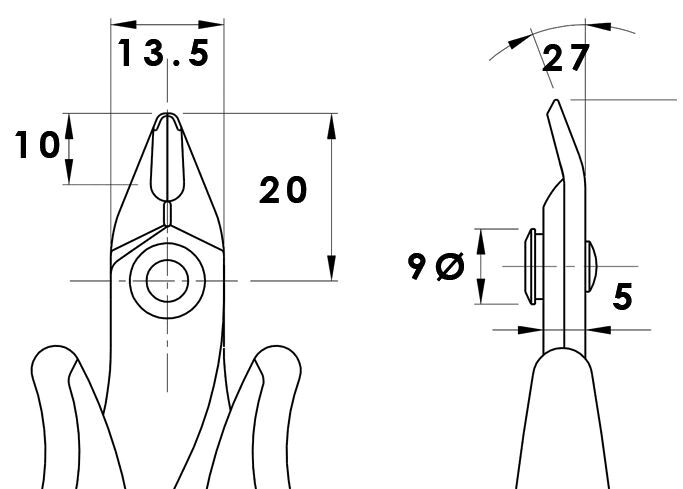

The side cutter TR-25-A.D from Piergiacomi combines functionality with high quality in a compact design. This tool is specifically designed for precise cutting tasks and is distinguished by its handy size of 138 mm in length. The small bevel and the angled head with a width of 13.5 mm and a thickness of 5 mm allow optimal access to hard-to-reach areas.
The blade of the side cutter is 8 mm long and allows the cutting of soft materials up to a diameter of 1.29 mm. The cutting force of 5 kg ensures efficient work. Particularly noteworthy is the ESD-safe design, which complies with the DIN EN 61340-5-1 standards, thus providing safety when working with electrostatically sensitive components.
The integrated safety spring not only supports the tool's longevity but also improves handling during the cutting process. Made from robust steel, this side cutter is ideally suited for daily use in technical and electronic professions.
The blade of the side cutter is 8 mm long and allows the cutting of soft materials up to a diameter of 1.29 mm. The cutting force of 5 kg ensures efficient work. Particularly noteworthy is the ESD-safe design, which complies with the DIN EN 61340-5-1 standards, thus providing safety when working with electrostatically sensitive components.
The integrated safety spring not only supports the tool's longevity but also improves handling during the cutting process. Made from robust steel, this side cutter is ideally suited for daily use in technical and electronic professions.
Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Version Version
- with safety spring
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 8 mm
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
