Diagonal cutting pliers TR-30-15.D
Diagonal cutting pliers TR-30-15.D

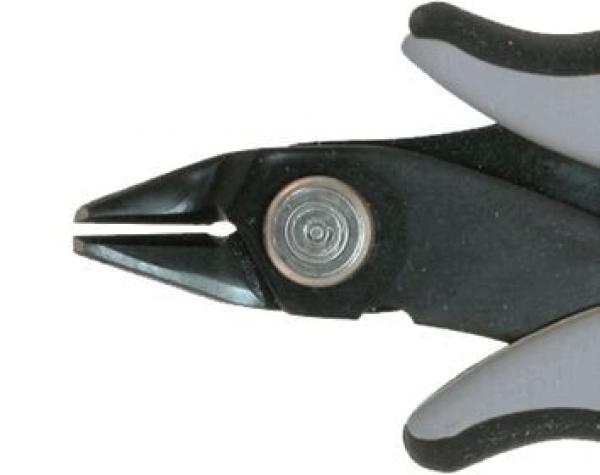

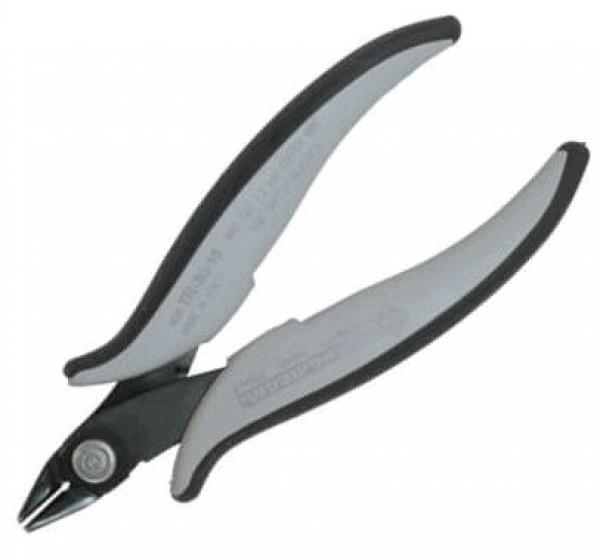

The side cutter TR-30-15.D from Piergiacomi is specifically designed to precisely separate components 1.5 mm from the work surface, ensuring that the cut part remains flat. This tool features a small jaw at a height of 1.5 mm and has a small, angled head, which allows for precise work in confined spaces. With a blade length of 8 mm and an overall length of 138 mm, the side cutter provides excellent handling.The material is made of robust steel, and the tool is ESD-safe, making it ideal for electrostatically sensitive work areas. The maximum diameter for soft materials is 1.29 mm. The cutting force is 5.5 kg, and the tool's bending angle is set at 27°, offering additional flexibility in cutting. These features make the side cutter TR-30-15.D an indispensable tool for precise cutting tasks in electronics and precision mechanics.
Details
- Length Length
- 138 mm
- Bevel Bevel
- small bevel at 1.5 mm height
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Blade length Blade length
- 8 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5.5 kg
- Head type/size Head type/size
- small
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

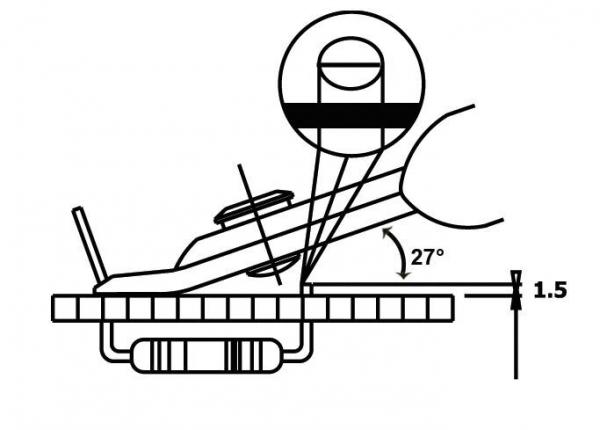

Bevel at 1,5 mm
The distance from the cutting surface to the upper edge of the bevel is 1.5 mm. Ideal for precise and fine cuts, especially with delicate wires and components.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
