Diagonal cutting pliers TR-58-R-A.D
Diagonal cutting pliers TR-58-R-A.D

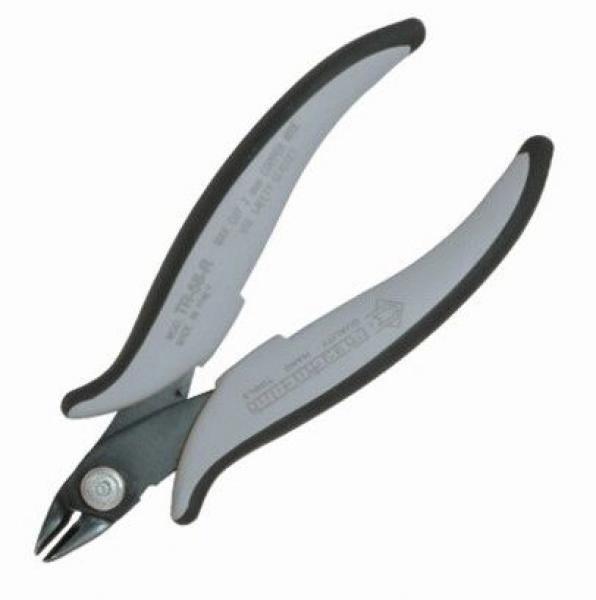

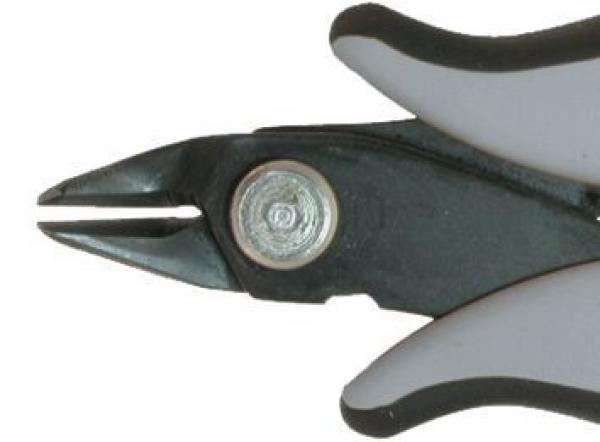

The side cutter TR-58-R-A.D by Piergiacomi, a variant of the model TR-58.D, is specifically designed for precise cuts with a small bevel. With an overall length of 138 mm and a maximum cutting capacity for soft materials up to a diameter of 2.05 mm (equivalent to AWG 12), this tool is excellent for fine cutting work. The angled head shape and a head width of 13.5 mm allow for optimal accessibility in confined areas.The design of the side cutter includes a safety spring, which makes handling safer and more comfortable. The tool has a cutting force of 9 kg and is made of robust steel, promising a long service life. ESD safety is ensured, qualifying it also for electrostatically sensitive applications. With a head thickness of 6 mm and a bending angle of 27°, the side cutter TR-58-R-A.D offers high precision and reliability with every cut.
Details
- Length Length
- 138 mm
- Bevel Bevel
- without bevel
- Version Version
- with opening spring
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- Max Ø soft Max Ø soft
- 2.05 mm
- AWG soft AWG soft
- 12
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 8 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 9 kg
- Head type/size Head type/size
- small
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Diagonal cutting pliers series Evolution
Article image
Article description
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
-26%
138 mm
without bevel
angled
27 °
1.29 mm
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
