Diagonal cutting pliers TRE-03-NB.D
Diagonal cutting pliers TRE-03-NB.D

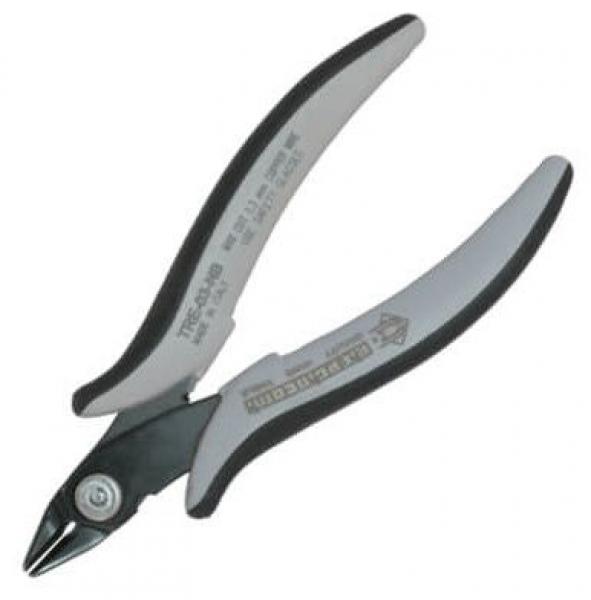

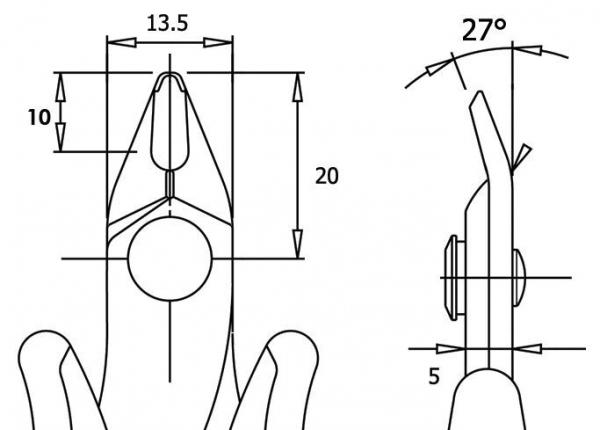

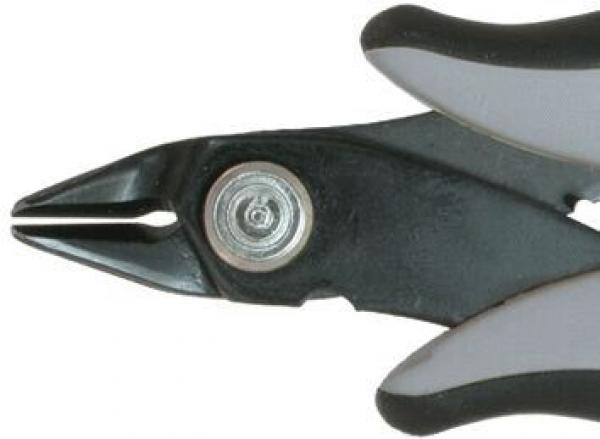

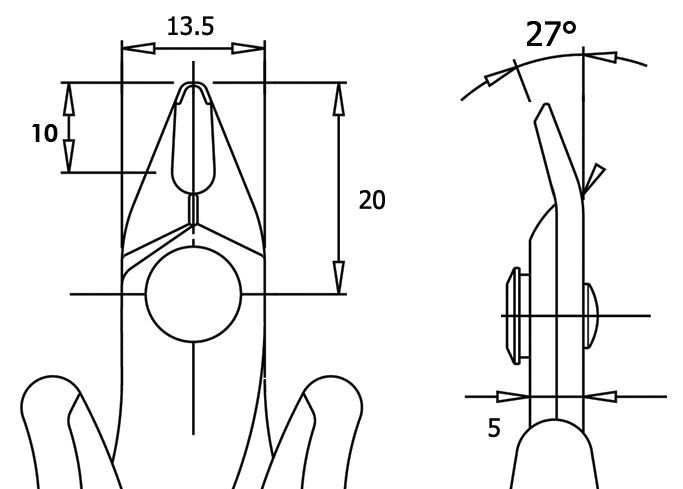

The TRE-03-NB.D side cutter from Piergiacomi is a highly functional tool, specifically designed for precision work in ESD-sensitive environments. This model complies with the DIN EN 61340-5-1 standard and is suitable for dissipative applications, making it ideal for use in electronics manufacturing.The side cutter is made of robust steel and features an angled head shape with a head width of 13.5 mm and a head thickness of 5 mm. The total length is 138 mm, while the blade length measures 10 mm. Despite its compact size, the small head type enables precise cuts without burrs, with a maximum cutting capacity for soft materials up to a diameter of 1.29 mm.
In addition to the high cutting force of 3 kg and a bending degree of 27°, this tool offers excellent handling for finer work even on thicker wires. The side cutter is lightweight, handy, and an ideal choice for professionals who value precision and reliability.
Details
- Length Length
- 138 mm
- Bevel Bevel
- without bevel
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 10 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 3 kg
- Head type/size Head type/size
- small
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
