Diagonal cutting pliers Z 44 1 115 04

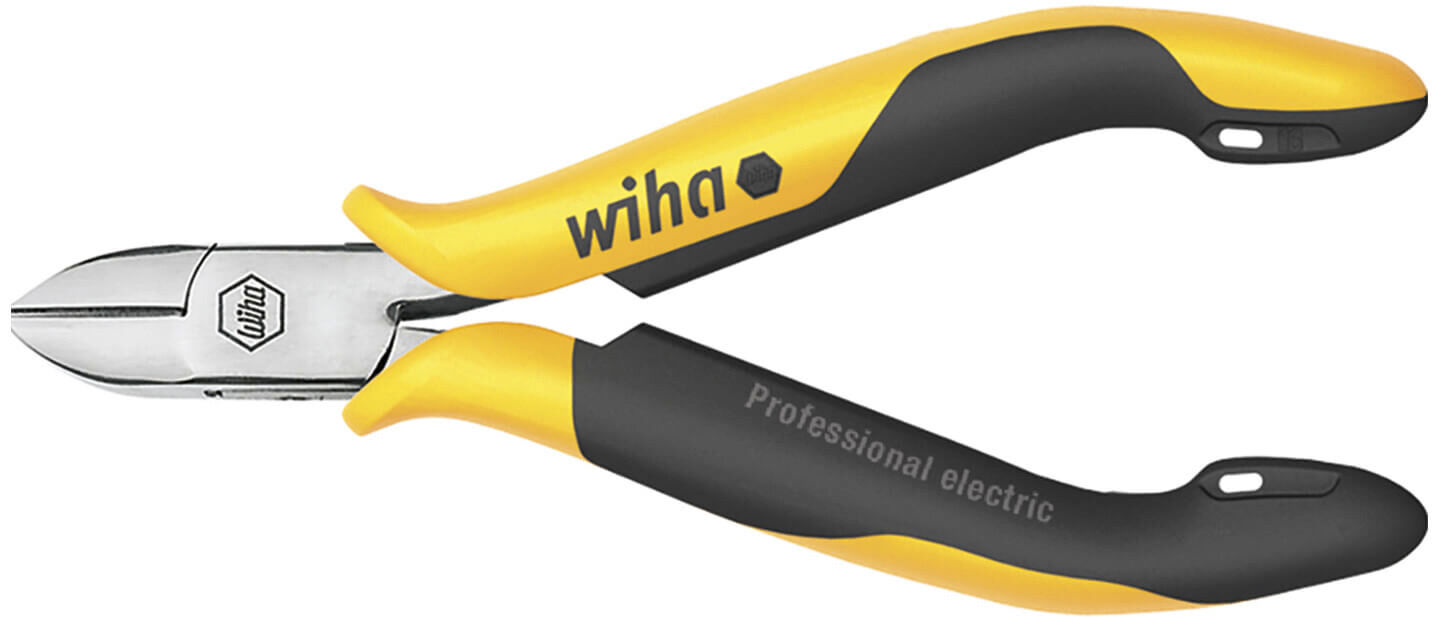

The Wiha side cutter Z 44 1 115 04 is specifically designed for use in ESD-protected work environments and meets the requirements according to IEC 61340-5-1 with a surface resistance of 10^6 to 10^9 Ohm. This tool is characterized by its precise workmanship and the antistatic properties of all handle components. The plier head is drop-forged from high-quality steel and the cutting edges are individually tempered and additionally inductively hardened to approximately 64 HRC, ensuring high durability and robustness.
The wide and semi-round head of the side cutter allows for universal use on hard, medium-hard, and soft steel wires, as well as copper wire and cables. The large bevel and the precise shape of the cutting edges offer both flush and normal cuts. The ergonomic design with an extra wide back of the handle and optimally distributed hard and soft zones ensures fatigue-free work.

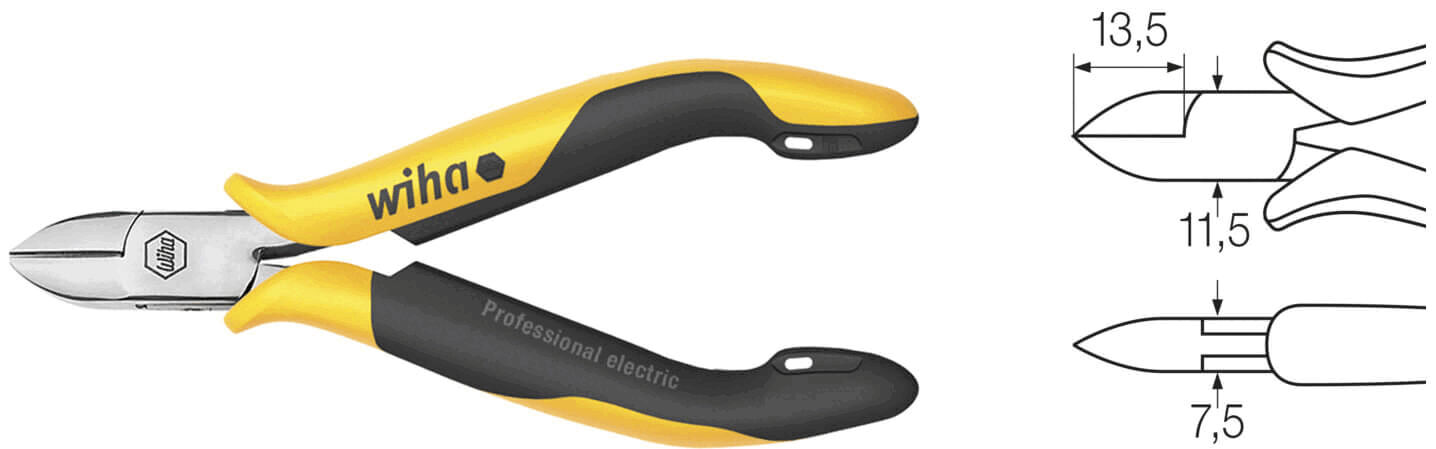

Technical specifications include a head length of 115 mm, a weight of 77 g, and a head width of 11.5 mm. The maximum cutting force is 7 kg. The appealing design with a finely polished head and high functionality make this side cutter an indispensable tool for professional electronic work.
The wide and semi-round head of the side cutter allows for universal use on hard, medium-hard, and soft steel wires, as well as copper wire and cables. The large bevel and the precise shape of the cutting edges offer both flush and normal cuts. The ergonomic design with an extra wide back of the handle and optimally distributed hard and soft zones ensures fatigue-free work.
Technical specifications include a head length of 115 mm, a weight of 77 g, and a head width of 11.5 mm. The maximum cutting force is 7 kg. The appealing design with a finely polished head and high functionality make this side cutter an indispensable tool for professional electronic work.
Details
- Bevel Bevel
- large bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.4 mm
- Max Ø medium Max Ø medium
- 1.0 mm
- Max Ø hard Max Ø hard
- 0.4 mm
- Head thickness Head thickness
- 7.5 mm
- Length [mm] Length [mm]
- 115 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 7 kg
- Head shape Head shape
- round nose
- Head width Head width
- 11.5 mm
- Jaw length Jaw length
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 77 g
Wiha Professional ESD is ideal for the electronics professional who depends on precise and robust pliers.
The secret of success of the pliers series is as simple as ingenious:
on the pliers head an uncompromising sharpness and hardness for a flush cutting, on the handle, however, the pleasant comfort for a stable, fatigue-free gripping, holding and cutting.
Special features:
- ESD safe
Suitable for working at ESD workstations according to IEC 61340-5-1
Surface resistance 106 - 109 ohm
- Antistatic
Unique - dissipative properties in all components of the handle - Precise
Box joint, safe against twisting - Hard as steel
Pliers head die-forged made of high-quality steels - Robust and durable
Cutting edges individually tempered and quenched, in addition inductively hardened to approx. 64 HRC. Joint extremely low-wear and highly resistant, high-quality riveting - Ergonomic
Extra wide handle back, hard and soft zones perfectly distributed in the handle - Attractive
Attractive design, with finely polished head
The shapes of cutting edges and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Large bevel
Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts
