ESD Diagonal cutting pliers 8140 CO
ESD Diagonal cutting pliers 8140 CO

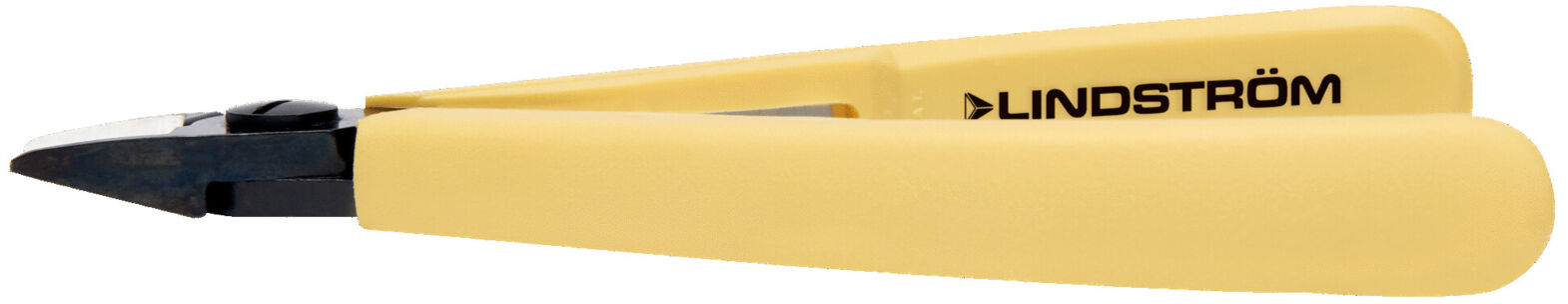

Discover the ESD diagonal cutter with bevel by Lindström, a high-quality choice for precise cutting in technical and electronic applications. This tool is characterized by its oval head shape and a small head width of 10.0 mm as well as a head thickness of 6 mm, making it ideal for hard-to-reach areas. The pliers are made from a robust high-performance steel alloy and are burnished to ensure durability and corrosion resistance.With an overall length of 110 mm and a weight of only 46 g, the diagonal cutter offers a handy and efficient handling. The specially developed ESD-safe handles made of synthetic material are equipped with a safety spring, which increases comfort and control during use. The cutting edges are induction-hardened (63-65 HrC) and offer precise cutting angles through a numerically controlled machine grind, enhancing the tool's resilience and durability.

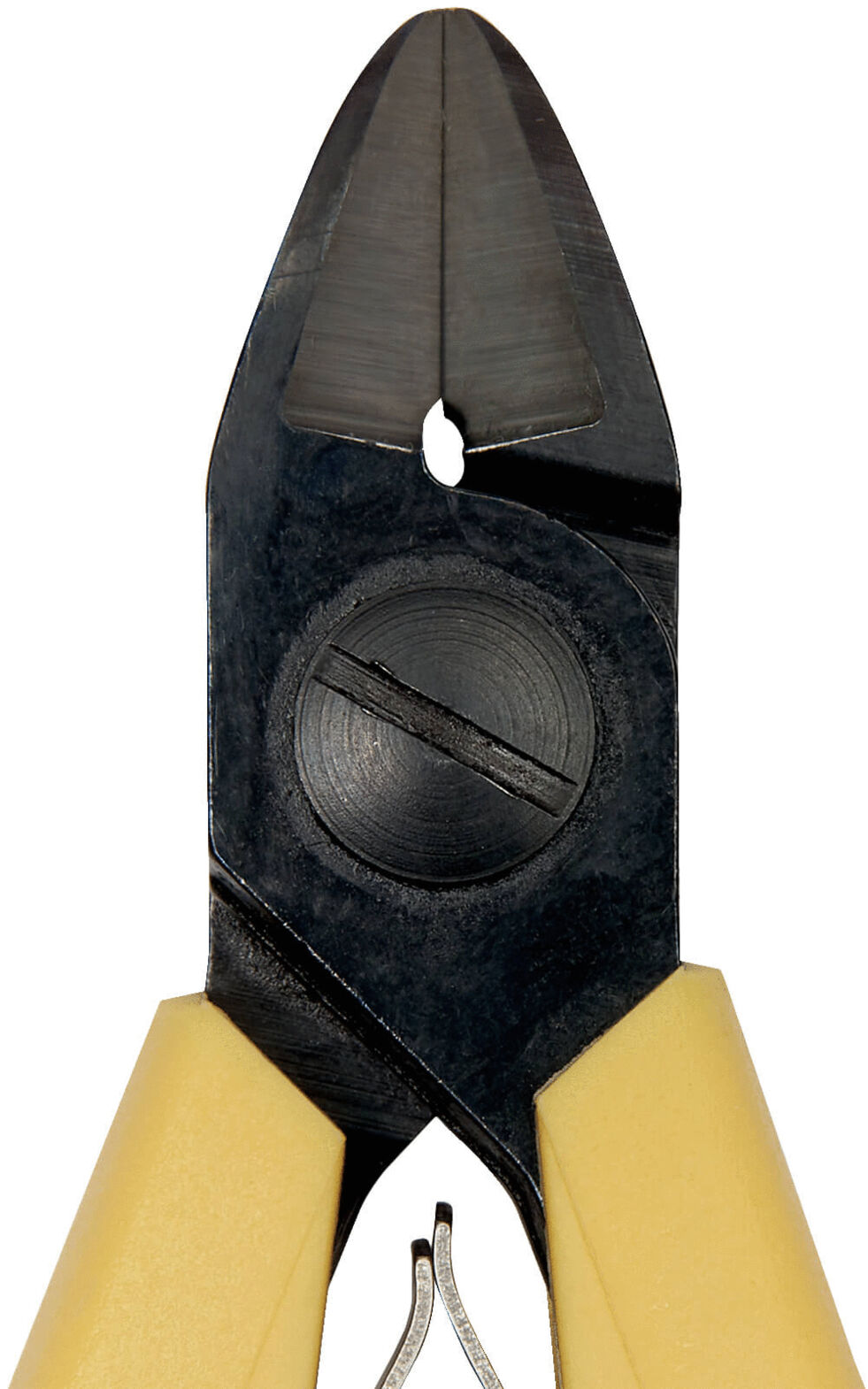

The friction-reducing screw joint improves the alignment of the cutting edges and enables clean, precise cuts, especially for copper wire up to a diameter of 1.25 mm. The "CO" version of the diagonal cutter features antistatic, conductive grip sleeves, providing additional safety when working on electronic components. Ideal for cutting wire harnesses and for assembly tasks on circuit boards.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 6 mm
- Length Length
- 110 mm
- Tip width Tip width
- 0.8 mm
- Conductivity Conductivity
- conductive
- Material Material
- steel
- Stick material Stick material
- PP
- Surface Surface
- brilliant
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 10.0 mm
- Jaw length Jaw length
- 10.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with opening spring
- Weight Weight
- 46 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
