ESD Diagonal cutting pliers 8141 CO
(Product No.: 8141-CO)
The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. The brand "Lindström" is printed on the side.
The image shows a pair of pliers with pointed, sharp blades. The handle is yellow, and the blades appear sturdy and solid. In the middle, there is a round area with a circular opening.
The image shows a pair of pliers with yellow handles and a metal cutting edge. The cutting edge has a sharp, V-shaped edge that is used for cutting or pinching materials.
Mobile Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Mobile Preview: The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. The brand "Lindström" is printed on the side.
Mobile Preview: The image shows a pair of pliers with pointed, sharp blades. The handle is yellow, and the blades appear sturdy and solid. In the middle, there is a round area with a circular opening.
Mobile Preview: The image shows a pair of pliers with yellow handles and a metal cutting edge. The cutting edge has a sharp, V-shaped edge that is used for cutting or pinching materials.
Notice

ESD Diagonal cutting pliers 8141 CO

ESD Diagonal cutting pliers 8141 CO

dpvlink:
28620
Bevel:
mini bevel
Head type/size:
small
Max Ø soft:
1.29 mm
Properties:
Further product information

available available
63,15 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Diagonal cutting pliers 8141 CO

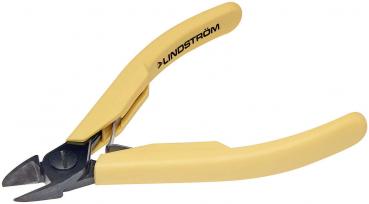

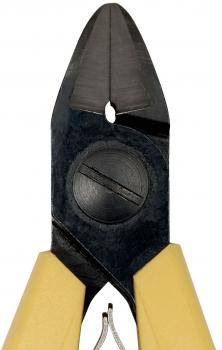

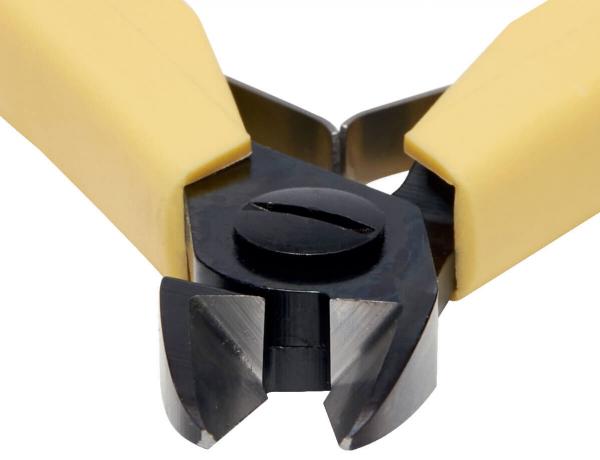

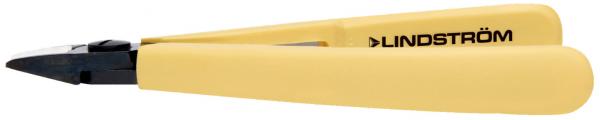

Discover the ESD side cutter with mini-bevel by Lindström, a high-precision tool specifically designed for cutting copper wire. The pliers from the 80 series feature oval jaws and are made from a high-performance steel alloy, ensuring a long lifespan and excellent cutting results. The cutting edges are induction-hardened to 63-65 HrC, providing maximum hardness and robustness.
The handles are ESD-safe and made from synthetic material, complemented by an opening spring for increased comfort and safety during use. The friction-reducing screw connection enhances the precision of cuts, especially when working on wiring harnesses or circuit boards. The special "CO" version also includes antistatic, conductive grip sleeves.
Technical specifications include a head size of 110 mm in length and a tip width of 0.8 mm, with a weight of only 45 g. The pliers are burnished, promising additional durability and have a head width of 10.0 mm. Ideal for precise and safe cuts in technically demanding environments.
Bevel
Bevel
mini bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
1.29 mm
AWG soft
AWG soft
16
Head thickness
Head thickness
6 mm
Length
Length
110 mm
Tip width
Tip width
0.8 mm
Conductivity
Conductivity
conductive
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
brilliant
ESD
ESD
yes
Head shape
Head shape
oval
Head width
Head width
10.0 mm
Jaw length
Jaw length
10.5 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
45 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
