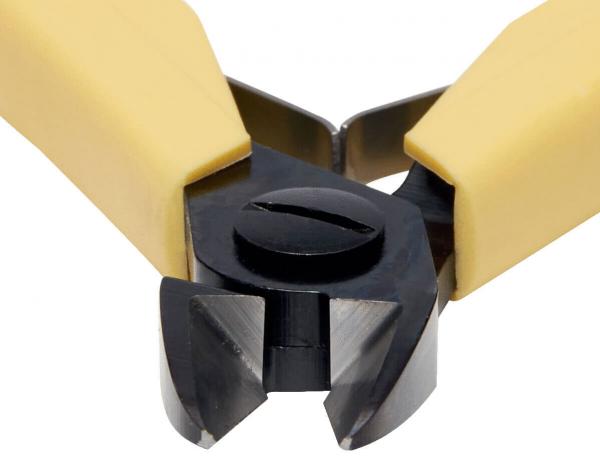

The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.

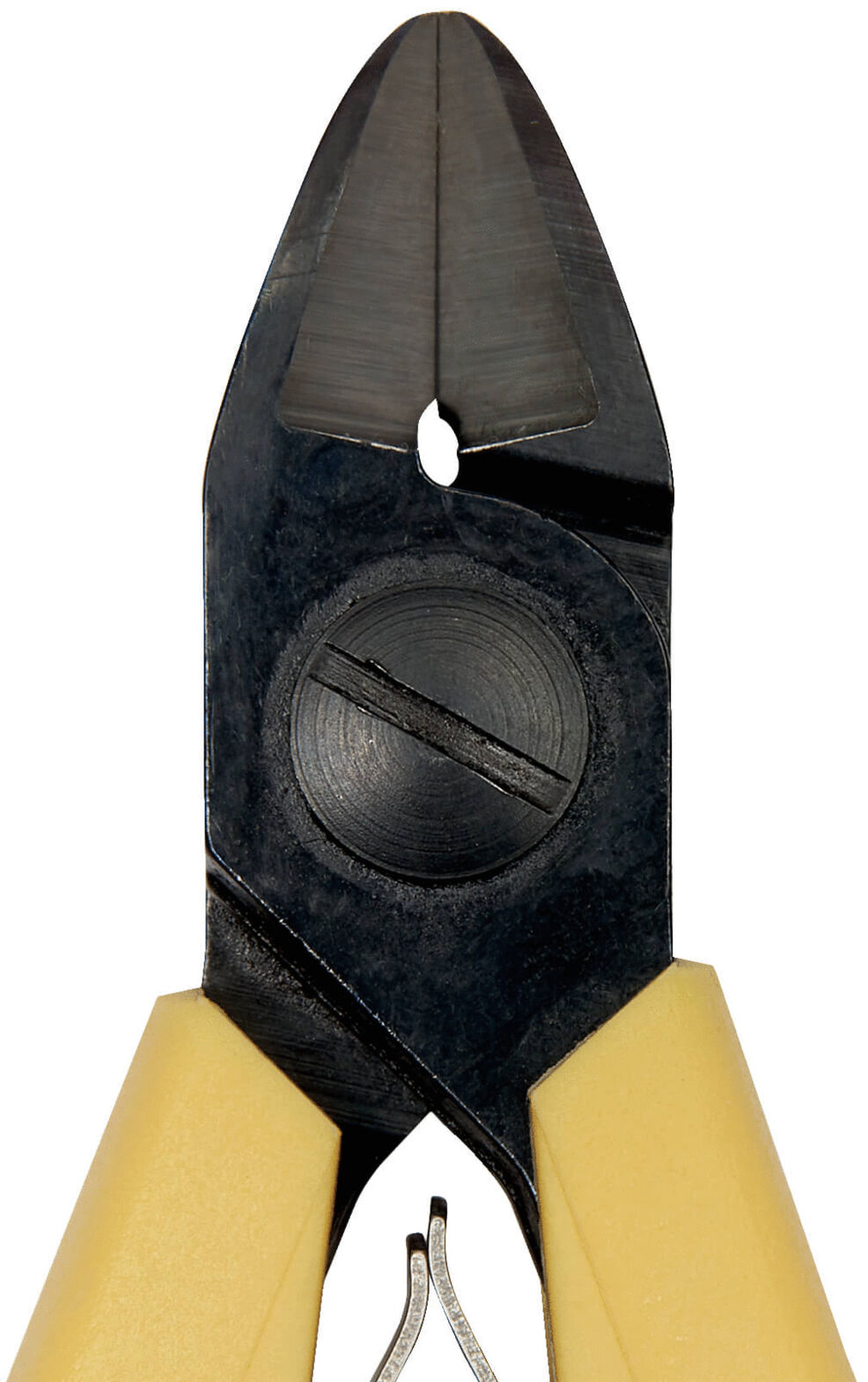

The image shows a yellow pliers with a narrow, black tip. On one of the handles, there is the inscription "LINDSTRÖM". The pliers have an ergonomic shape.

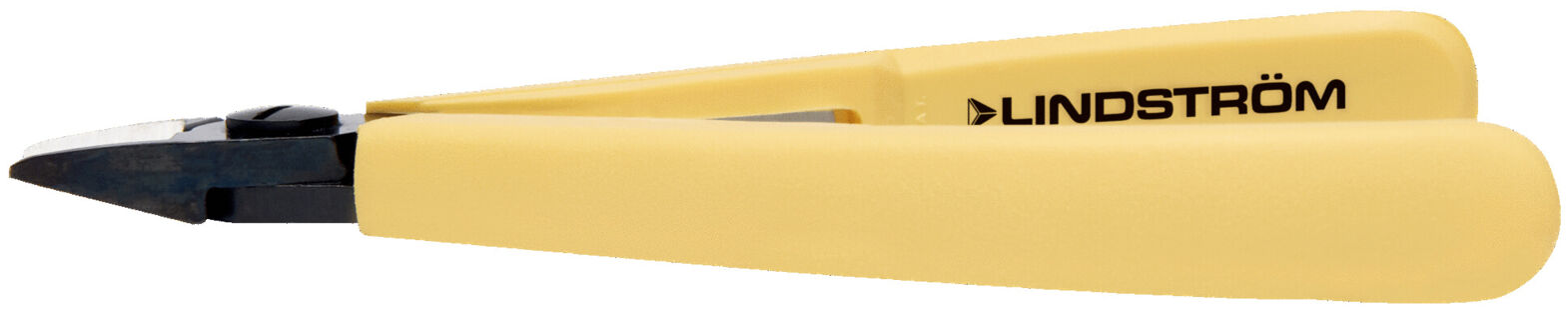

The image shows a pair of pliers with narrow, pointed jaws. The handles are beige and the blades are made of black metal. There is a circular indentation in the middle.
The image shows a pair of pliers with yellow handles. The blades are made of shiny metal and have a sharp, serrated edge. They are suitable for cutting wire or similar materials.
Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Preview: The image shows a yellow pliers with a narrow, black tip. On one of the handles, there is the inscription "LINDSTRÖM". The pliers have an ergonomic shape.
Preview: The image shows a pair of pliers with narrow, pointed jaws. The handles are beige and the blades are made of black metal. There is a circular indentation in the middle.
Preview: The image shows a pair of pliers with yellow handles. The blades are made of shiny metal and have a sharp, serrated edge. They are suitable for cutting wire or similar materials.
ESD Diagonal cutting pliers 8142 CO
(Product No.: 8142-CO)
The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
The image shows a yellow pliers with a narrow, black tip. On one of the handles, there is the inscription "LINDSTRÖM". The pliers have an ergonomic shape.
The image shows a pair of pliers with narrow, pointed jaws. The handles are beige and the blades are made of black metal. There is a circular indentation in the middle.
The image shows a pair of pliers with yellow handles. The blades are made of shiny metal and have a sharp, serrated edge. They are suitable for cutting wire or similar materials.
Mobile Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Mobile Preview: The image shows a yellow pliers with a narrow, black tip. On one of the handles, there is the inscription "LINDSTRÖM". The pliers have an ergonomic shape.
Mobile Preview: The image shows a pair of pliers with narrow, pointed jaws. The handles are beige and the blades are made of black metal. There is a circular indentation in the middle.
Mobile Preview: The image shows a pair of pliers with yellow handles. The blades are made of shiny metal and have a sharp, serrated edge. They are suitable for cutting wire or similar materials.
Notice

ESD Diagonal cutting pliers 8142 CO

ESD Diagonal cutting pliers 8142 CO

dpvlink:
28620
Bevel:
without bevel (flush cut)
Head type/size:
small
Max Ø soft:
1.02 mm
Properties:
Further product information

at short notice at short notice
72,10 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Diagonal cutting pliers 8142 CO

Discover the ESD flush cutter by Lindström, ideal for precision work in hard-to-reach places such as wiring harnesses and circuit boards. This high-quality tool is made from a robust steel alloy, blackened and features precision-ground, induction-hardened cutting edges with a hardness of 63-65 HrC, ensuring maximum hardness and durability. The cutting capacity is specifically designed for copper wire, with a maximum thickness of 1.02 mm and a tip width of 0.8 mm.
The oval head shape and the compact size of 110 mm in length make the side cutter particularly handy. The friction-reducing screw joint increases the precision of the cuts. Additionally, ESD-safe handles made from synthetic material and an optional opening spring ensure ergonomic comfort and safety during use. The "CO" model also offers anti-static, conductive grip sleeves.
With a weight of only 46 g and the flush cutting execution without bevel, this tool allows for easy and efficient handling. This tool combines functionality with safety and is an excellent choice for technical professionals in the electronics and assembly industry.
Bevel
Bevel
without bevel (flush cut)
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
1.02 mm
AWG soft
AWG soft
18
Head thickness
Head thickness
6 mm
Length
Length
110 mm
Tip width
Tip width
0.8 mm
Conductivity
Conductivity
conductive
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
brilliant
ESD
ESD
yes
Head shape
Head shape
oval
Head width
Head width
10.0 mm
Jaw length
Jaw length
10.5 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
46 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).
