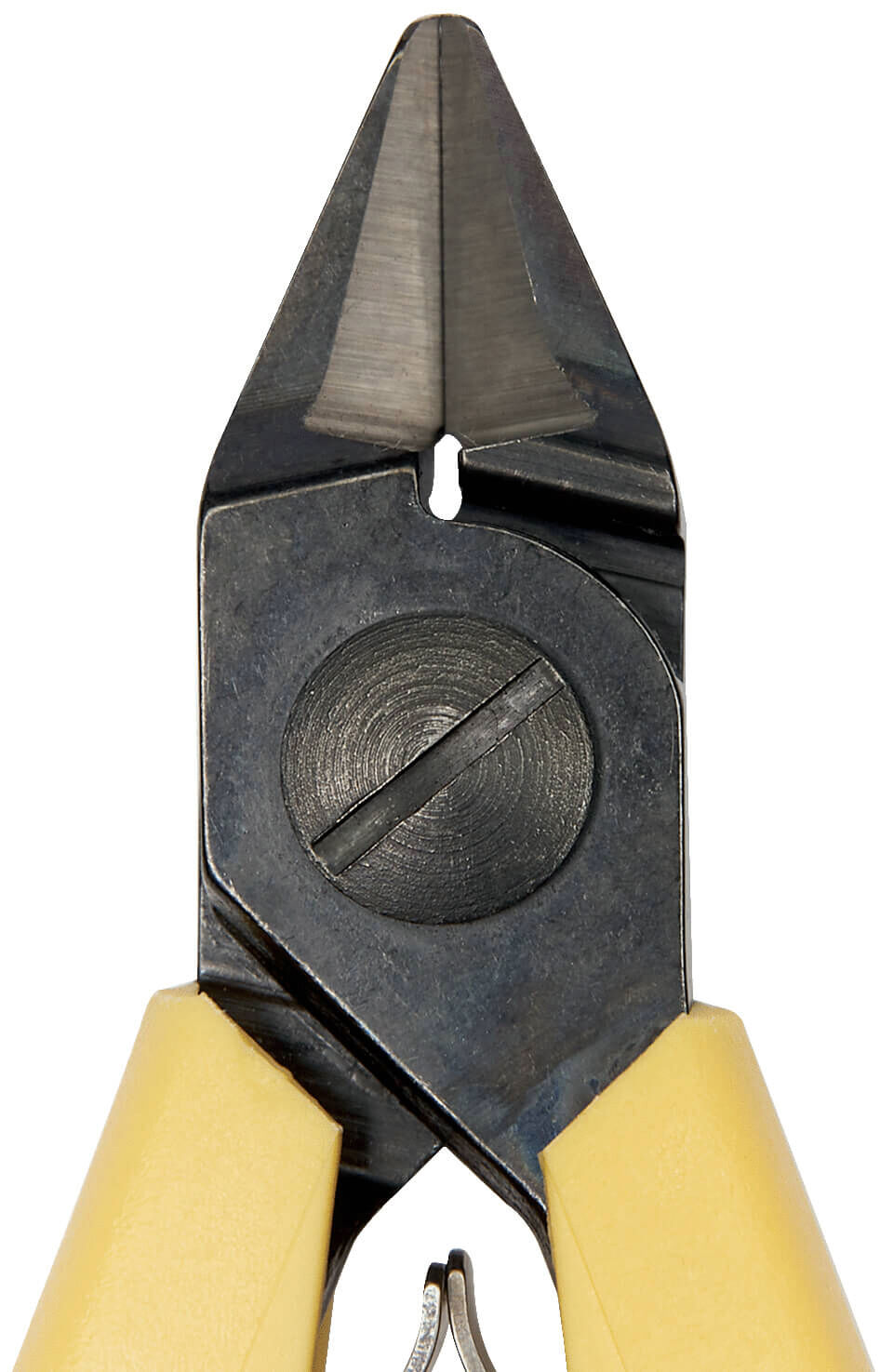

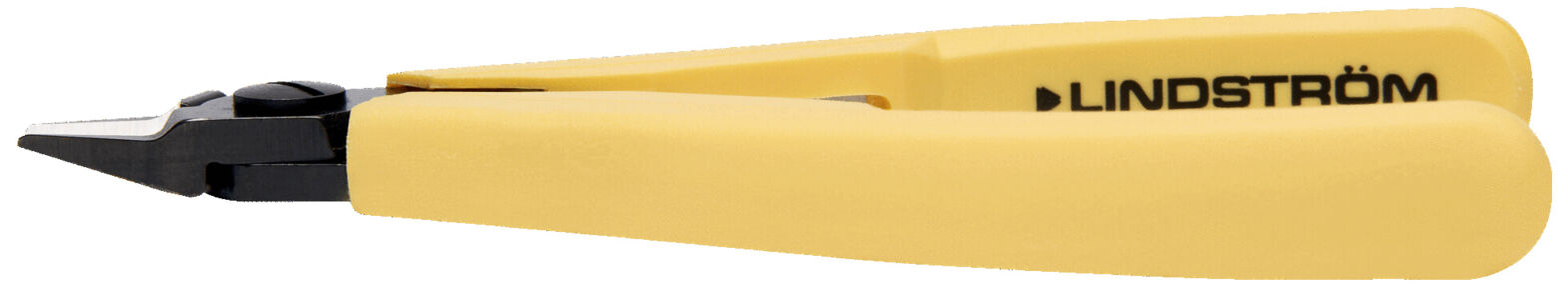

The image shows a yellow pliers with a narrow, pointed cutting edge. It is made of metal and has a non-slip grip. The pliers are marked with the inscription "LINDSTRÖM".

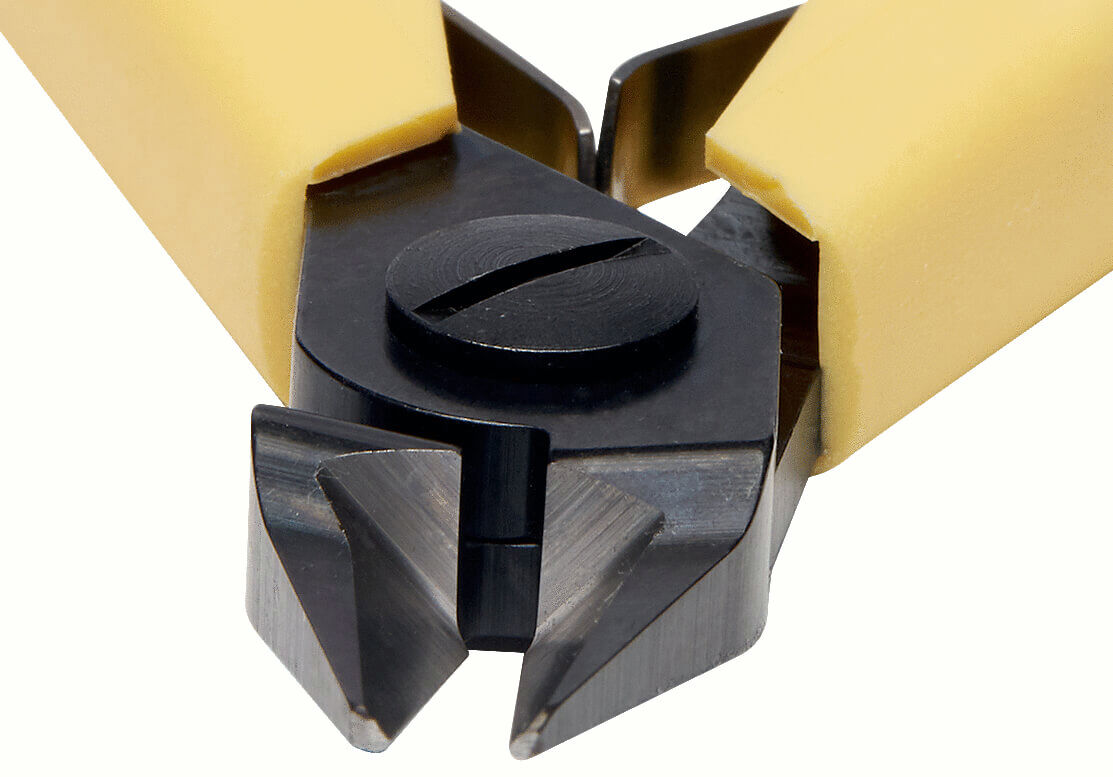

The image shows a pair of pliers with pointed, angled cutting edges. The body is made of shiny metal, the handles are yellow and ergonomically shaped. A small circle with a groove is in the center.
The image shows a pair of pliers with yellow plastic handles. At the tip, there are two cutting jaws that taper to a point and have a circular turning knob in the middle.
Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Preview: The image shows a yellow pliers with a narrow, pointed cutting edge. It is made of metal and has a non-slip grip. The pliers are marked with the inscription "LINDSTRÖM".
Preview: The image shows a pair of pliers with pointed, angled cutting edges. The body is made of shiny metal, the handles are yellow and ergonomically shaped. A small circle with a groove is in the center.
Preview: The image shows a pair of pliers with yellow plastic handles. At the tip, there are two cutting jaws that taper to a point and have a circular turning knob in the middle.
ESD Diagonal cutting pliers 8148 CO
(Product No.: 8148-CO)
The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
The image shows a yellow pliers with a narrow, pointed cutting edge. It is made of metal and has a non-slip grip. The pliers are marked with the inscription "LINDSTRÖM".
The image shows a pair of pliers with pointed, angled cutting edges. The body is made of shiny metal, the handles are yellow and ergonomically shaped. A small circle with a groove is in the center.
The image shows a pair of pliers with yellow plastic handles. At the tip, there are two cutting jaws that taper to a point and have a circular turning knob in the middle.
Mobile Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Mobile Preview: The image shows a yellow pliers with a narrow, pointed cutting edge. It is made of metal and has a non-slip grip. The pliers are marked with the inscription "LINDSTRÖM".
Mobile Preview: The image shows a pair of pliers with pointed, angled cutting edges. The body is made of shiny metal, the handles are yellow and ergonomically shaped. A small circle with a groove is in the center.
Mobile Preview: The image shows a pair of pliers with yellow plastic handles. At the tip, there are two cutting jaws that taper to a point and have a circular turning knob in the middle.
Notice

ESD Diagonal cutting pliers 8148 CO

ESD Diagonal cutting pliers 8148 CO

dpvlink:
28620
Bevel:
without bevel
Head type/size:
small
Max Ø soft:
0.81 mm
Properties:
Further product information

at short notice at short notice
73,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Diagonal cutting pliers 8148 CO

Discover the ESD side cutter from Lindström, a high-quality plier from the 80s series, known for its precision and durability. This model features a tapered, flattened head without bevel and is ideal for precise cutting work in hard-to-reach areas or for rework. The ESD-safe handles made of synthetic material are equipped with an opening spring, which increases comfort and safety during handling.

The cutting capacity of this plier is specifically designed for copper wires. Made from a high-performance steel alloy and phosphated, the side cutter offers precision-ground cutting edges that guarantee an exceptionally long life and a clean cut. The induction-hardened edges have a hardness level of 63-65 HRC and are equipped with a friction-reducing screw connection that enables smooth cuts.

Technical specifications include a head length of 10 mm, a maximum wire thickness of 0.81 mm, and a weight of 45 g. The overall length of the plier is 110 mm, and the tip width is 0.8 mm.
Bevel
Bevel
without bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
0.81 mm
AWG soft
AWG soft
20
Head thickness
Head thickness
6 mm
Length
Length
110 mm
Tip width
Tip width
0.8 mm
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
phosphated
ESD
ESD
yes
Head shape
Head shape
tapered / snipe nose
Head width
Head width
10 mm
Jaw length
Jaw length
10 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
45 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!
