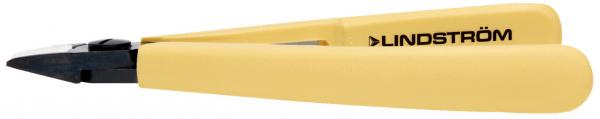

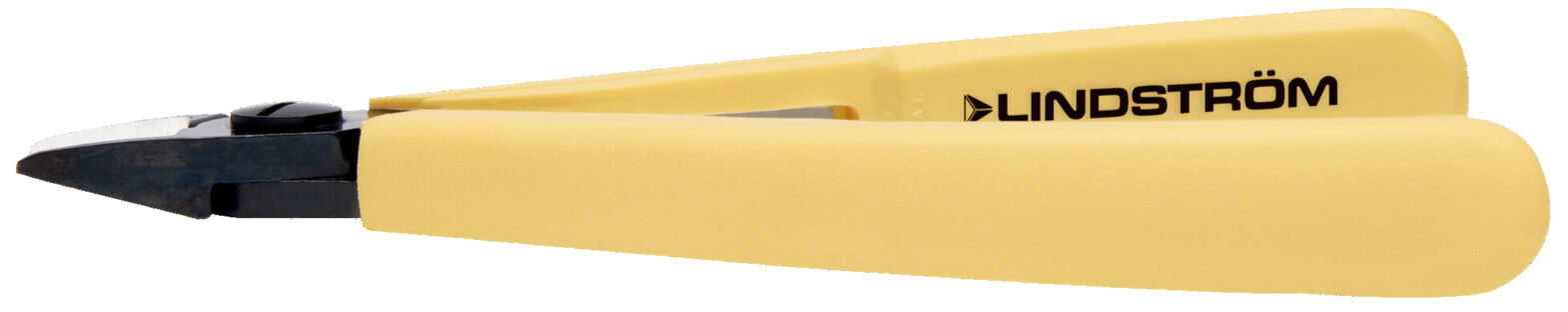

The image shows a yellow pliers with a black cutting edge. The handle is curved and marked with the inscription "LINDSTRÖM". The pliers are shown in the closed position.

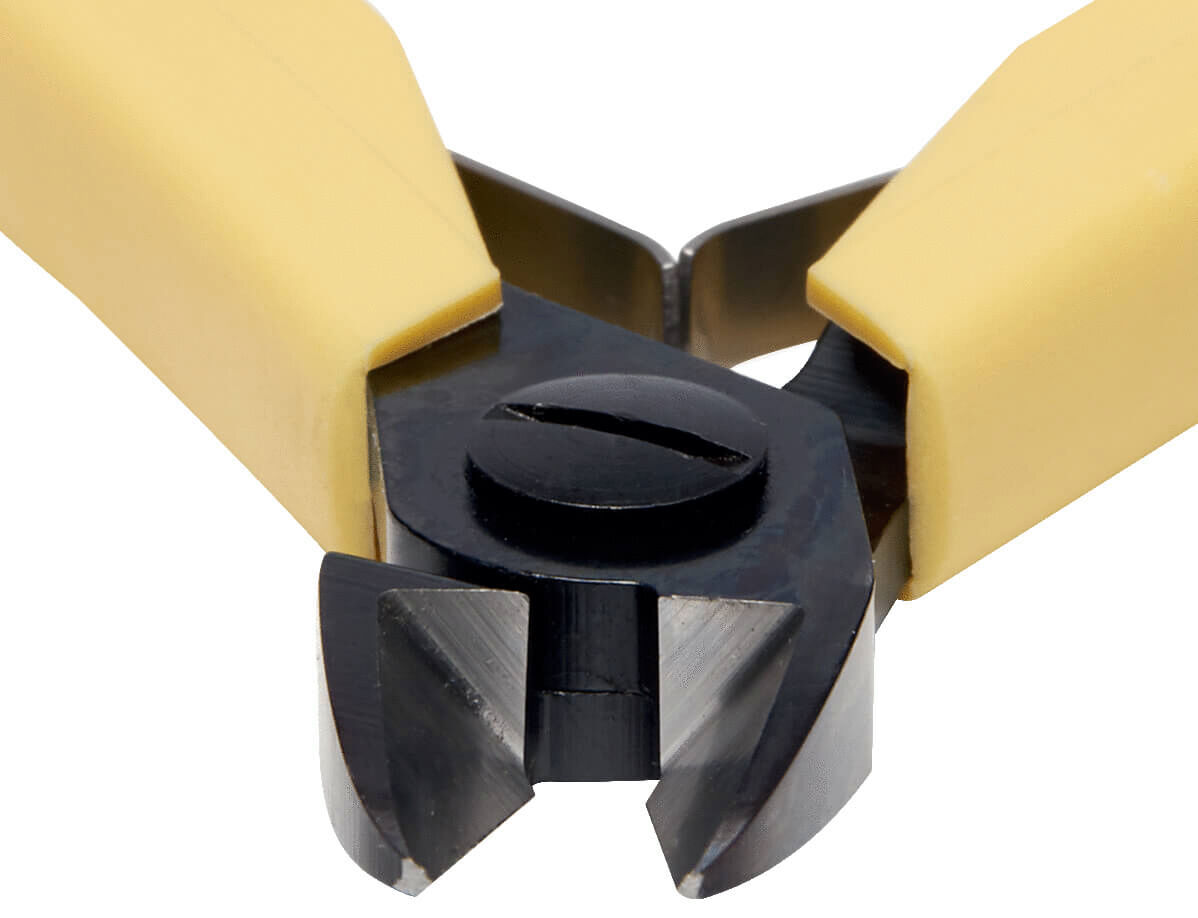

The image shows a pair of pliers with a pointed head and wide, yellow handles. The cutting surfaces are dark and sharp, with a small opening in the middle.

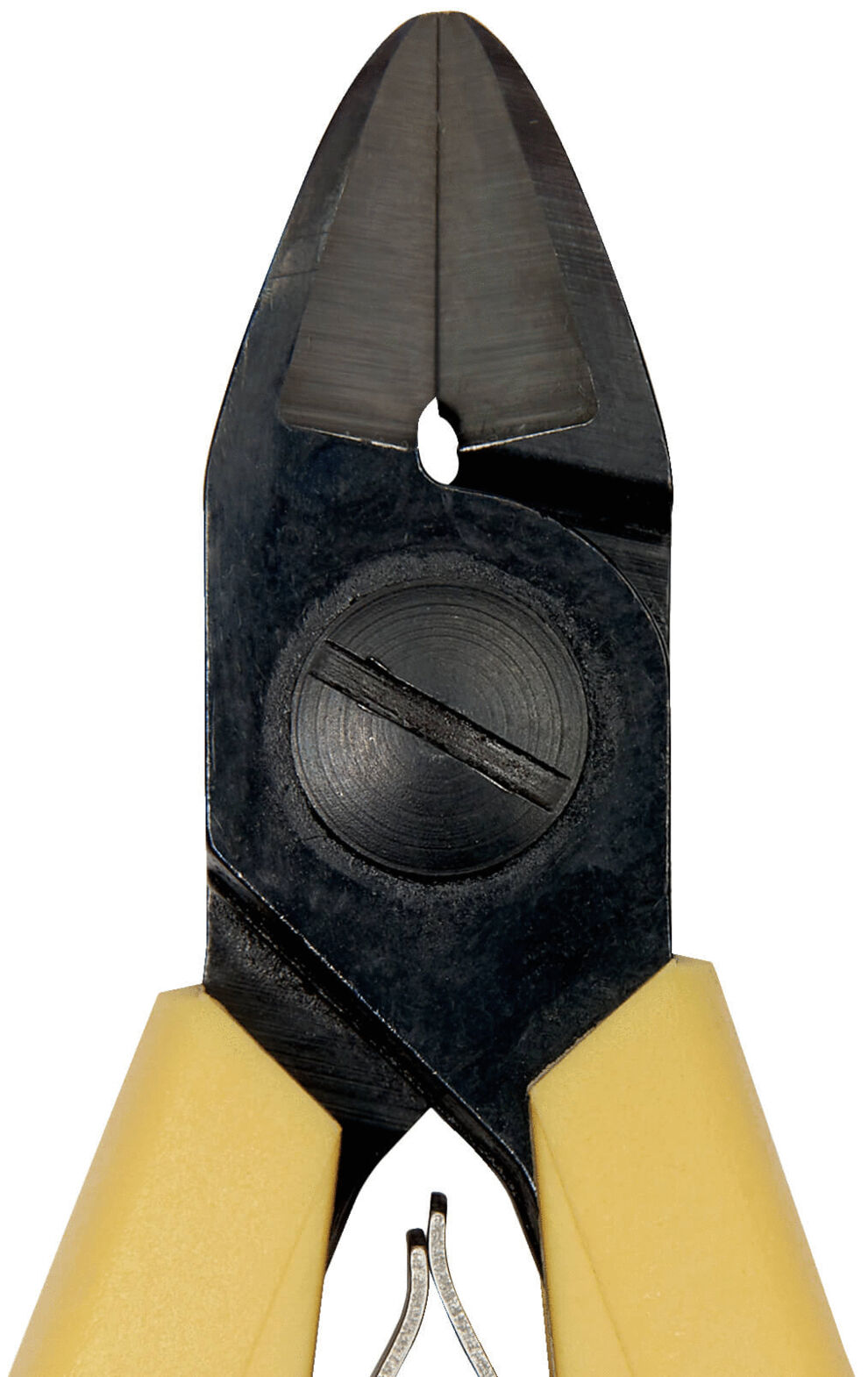

The image shows a diagonal cutting pliers. The handles are yellow and ergonomically shaped. The cutting edges are flat and sharp, ideal for cutting wire or small objects.
Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Preview: The image shows a yellow pliers with a black cutting edge. The handle is curved and marked with the inscription "LINDSTRÖM". The pliers are shown in the closed position.
Preview: The image shows a pair of pliers with a pointed head and wide, yellow handles. The cutting surfaces are dark and sharp, with a small opening in the middle.
Preview: The image shows a diagonal cutting pliers. The handles are yellow and ergonomically shaped. The cutting edges are flat and sharp, ideal for cutting wire or small objects.
ESD Diagonal cutting pliers 8150 CO
(Product No.: 8150-CO)
The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
The image shows a yellow pliers with a black cutting edge. The handle is curved and marked with the inscription "LINDSTRÖM". The pliers are shown in the closed position.
The image shows a pair of pliers with a pointed head and wide, yellow handles. The cutting surfaces are dark and sharp, with a small opening in the middle.
The image shows a diagonal cutting pliers. The handles are yellow and ergonomically shaped. The cutting edges are flat and sharp, ideal for cutting wire or small objects.
Mobile Preview: The image shows a yellow-colored pliers with two handles. The pliers have a pointed, angled cutting edge at one end, suitable for cutting thin wires or materials.
Mobile Preview: The image shows a yellow pliers with a black cutting edge. The handle is curved and marked with the inscription "LINDSTRÖM". The pliers are shown in the closed position.
Mobile Preview: The image shows a pair of pliers with a pointed head and wide, yellow handles. The cutting surfaces are dark and sharp, with a small opening in the middle.
Mobile Preview: The image shows a diagonal cutting pliers. The handles are yellow and ergonomically shaped. The cutting edges are flat and sharp, ideal for cutting wire or small objects.
Notice

ESD Diagonal cutting pliers 8150 CO

ESD Diagonal cutting pliers 8150 CO

dpvlink:
28620
Bevel:
with bevel
Head type/size:
regular
Max Ø soft:
1,63 mm
Properties:
Further product information

at short notice at short notice
61,40 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Diagonal cutting pliers 8150 CO

Discover the high-quality ESD diagonal cutters with bevel from Lindström, equipped with oval jaws and a length of 112.5 mm. These precisely crafted pliers are ideal for cutting copper wire up to a diameter of 1.6 mm and are characterized by their ESD-safe handles made of synthetic material. The handles offer additional comfort through an integrated opening spring and are available in the "CO" version with antistatic, conductive grip sleeves, making them particularly safe.
The diagonal cutters are made from a high-performance steel alloy and have a burnished surface, which, together with the numerically controlled machine grinding technology, ensures high cutting angle accuracy and contact. The induction-hardened cutting edges with a hardness of 63-65 HrC and a special friction-reducing screw connection increase the tool's load capacity and durability. Weighing only 50 g and with a head width of 12.5 mm, these pliers are particularly suitable for precise work on wiring harnesses and circuit boards.
Bevel
Bevel
with bevel
Head type/size
Head type/size
regular
Max Ø soft
Max Ø soft
1,63 mm
AWG soft
AWG soft
14
Head thickness
Head thickness
6 mm
Length
Length
112.5 mm
Tip width
Tip width
1.2 mm
Conductivity
Conductivity
conductive
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
brilliant
ESD
ESD
yes
Head shape
Head shape
oval
Head width
Head width
12.5 mm
Jaw length
Jaw length
13 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
50 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
