ESD Diagonal cutting pliers Slim 5250

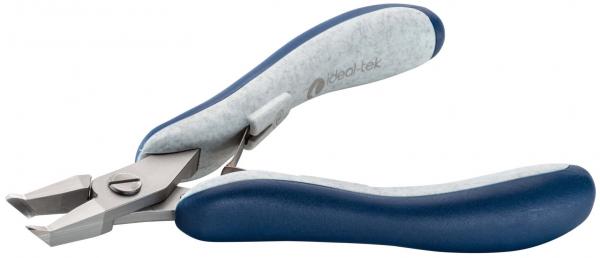

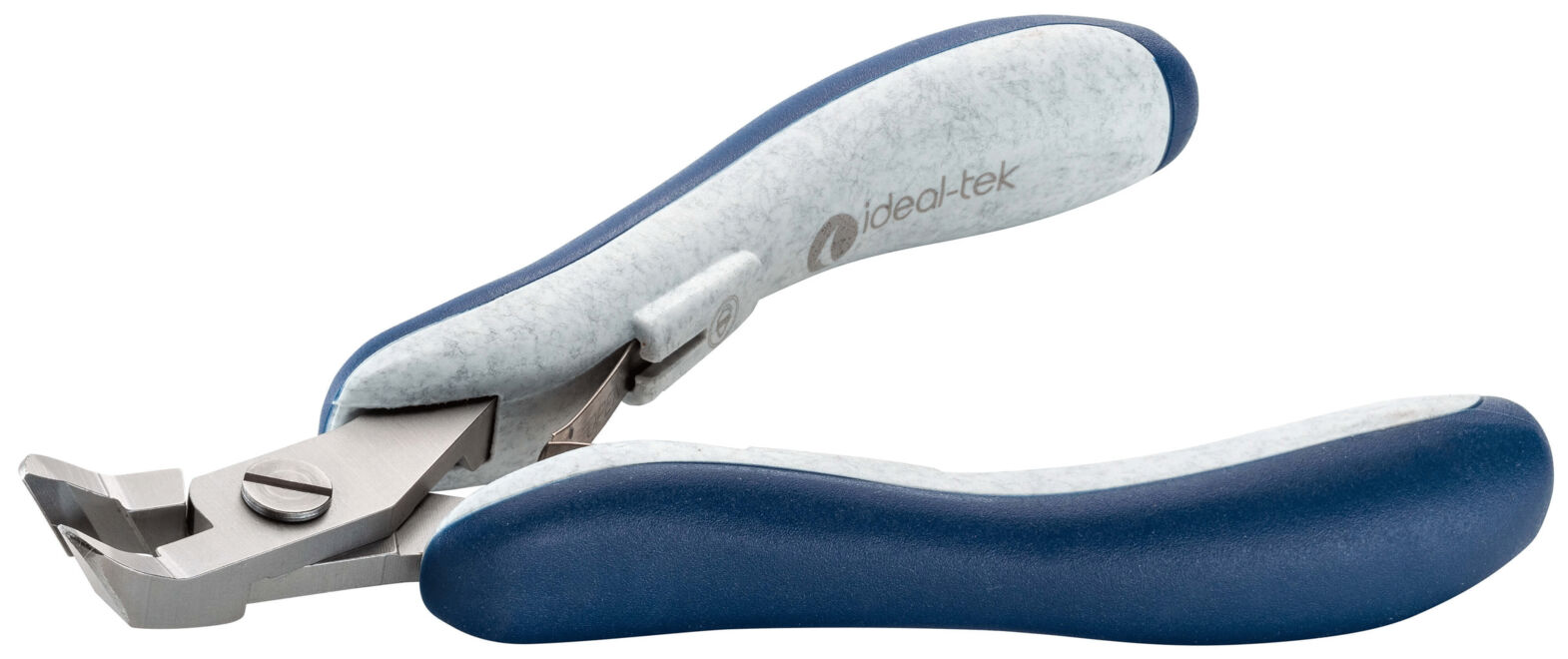

The ESD side cutter Slim 5250 by ideal-tek is a high-precision tool from the category of diagonal cutters, specially designed for cutting wires, cables, and thin metal pieces. The distinctive feature of this model is its ergonomic, angled head shape which supports the operator during work and allows for fatigue-free operation. The cutting jaws are designed flush and enable very clean cuts on smaller materials.The blades of this cutter are made of steel, sandblasted, and hardened to a hardness of 67HRC, ensuring high durability and cutting precision. The ergonomic handle made of PP and TPE offers excellent grip and is specifically designed for use in ESD-sensitive environments.

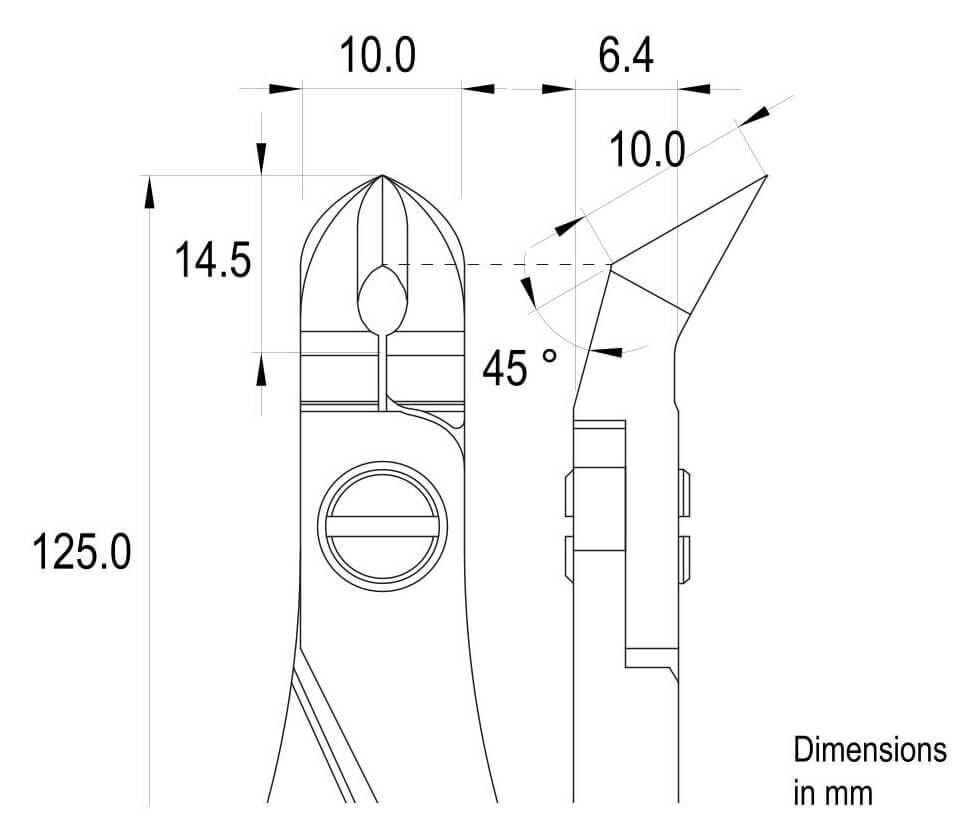

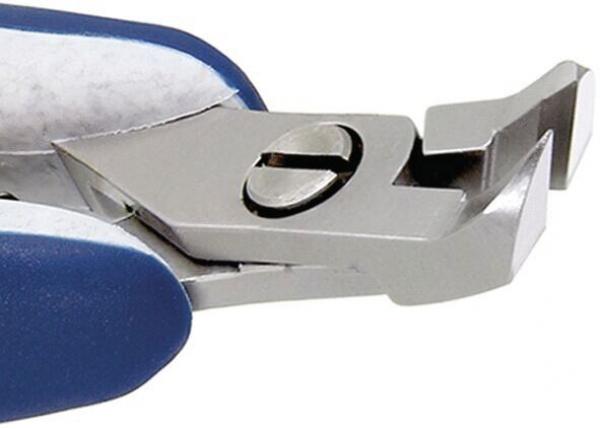

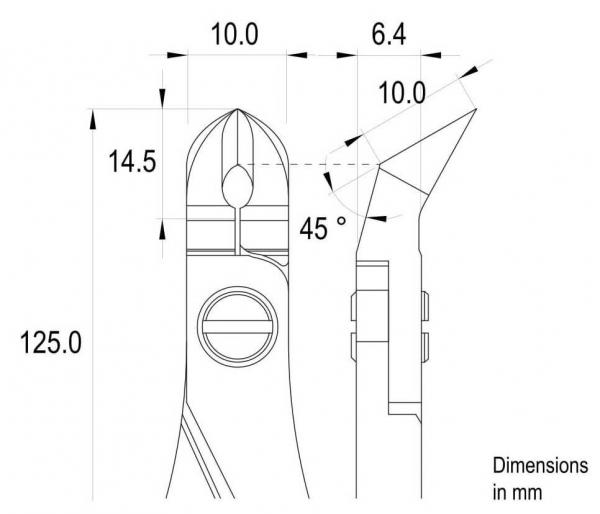

The tool measures 125 mm in length and weighs 83 g. It can cut wires up to a diameter of 1.15 mm in both soft and medium hardness. The head thickness is 6.4 mm, the jaw length is 14.5 mm, and the head width is 10 mm. The head's bending angle is set at 45°, which additionally contributes to precise handling.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- AWG medium AWG medium
- 32-17
- AWG soft AWG soft
- 32-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length [mm]
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 14.5 mm
- Type of pliers Type of pliers
- end cutting pliers
- Version Version
- with safety spring
- Degree of bending Degree of bending
- 45 °
- Weight Weight
- 83 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
