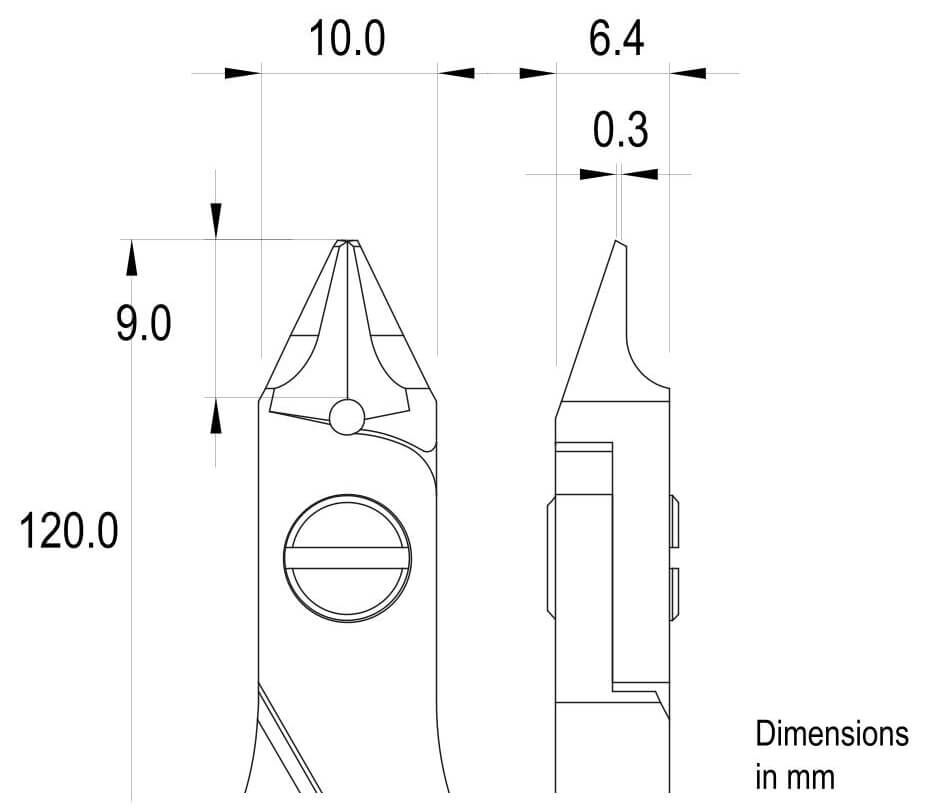

The image shows a technical drawing of a tool, likely a pair of pliers. Dimensions are provided: height 120 mm, tip 10 mm, width 6.4 mm, with various details and proportions.
Preview: This is a nail clipper with ergonomically shaped, blue handles. The cutting blades are precise and sharp, ensuring safe nail trimming.
Preview: The image shows a nail clipper with an ergonomic handle. The blades are sharp and pointed, ideal for cutting nails. The handle is blue and white.
Preview: The image shows a technical drawing of a tool, likely a pair of pliers. Dimensions are provided: height 120 mm, tip 10 mm, width 6.4 mm, with various details and proportions.
ESD Diagonal cutting pliers Slim 5542
(Product No.: I-ES5542.ESD)
This is a nail clipper with ergonomically shaped, blue handles. The cutting blades are precise and sharp, ensuring safe nail trimming.
The image shows a nail clipper with an ergonomic handle. The blades are sharp and pointed, ideal for cutting nails. The handle is blue and white.
The image shows a technical drawing of a tool, likely a pair of pliers. Dimensions are provided: height 120 mm, tip 10 mm, width 6.4 mm, with various details and proportions.
Mobile Preview: This is a nail clipper with ergonomically shaped, blue handles. The cutting blades are precise and sharp, ensuring safe nail trimming.
Mobile Preview: The image shows a nail clipper with an ergonomic handle. The blades are sharp and pointed, ideal for cutting nails. The handle is blue and white.
Mobile Preview: The image shows a technical drawing of a tool, likely a pair of pliers. Dimensions are provided: height 120 mm, tip 10 mm, width 6.4 mm, with various details and proportions.
Notice / Inquire

ESD Diagonal cutting pliers Slim 5542

ESD Diagonal cutting pliers Slim 5542

dpvlink:
26758
Bevel:
without bevel (flush cut)
Head type/size:
extra small
Head shape:
tapered
Max Ø soft:
0.81 mm
Max Ø medium:
0.4 mm
Properties:
Further product information

at short notice at short notice
52,55 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Diagonal cutting pliers Slim 5542

The ESD Side Cutter Slim 5542 from ideal-tek is a precise cutting tool specifically designed for accessing small areas and performing very clean cuts on small materials. This model is part of the 554x series and is characterized by its beveled, relieved geometry with an extra small head, which is conically shaped and has a flush cutting edge.
The side cutter is equipped with an ESD Ergo-Tek Slim handle, made from PP and TPE, which not only provides an excellent grip but is also electrostatically dissipative, ideal for environments sensitive to electrostatic discharges.
The blades of the 5542 are made from sandblasted steel and hardened to a hardness of 67 HRC, ensuring high durability and precision. With a total length of 120 mm and a weight of 81 g, the cutter offers efficient handling. The head dimensions include a thickness of 6.4 mm, a width of 10 mm, and a jaw length of 9 mm. The cutter can cut materials up to a diameter of 0.81 mm (soft) and 0.4 mm (medium) and supports wire sizes from AWG 38-20 (soft) to AWG 38-26 (medium).
Bevel
Bevel
without bevel (flush cut)
Head type/size
Head type/size
extra small
Head shape
Head shape
tapered
Max Ø soft
Max Ø soft
0.81 mm
Max Ø medium
Max Ø medium
0.4 mm
AWG medium
AWG medium
38-26
AWG soft
AWG soft
38-20
Head thickness
Head thickness
6.4 mm
Length
Length
120 mm
Material
Material
steel
Stick material
Stick material
PP / TPE
Surface
Surface
sandblastered
ESD
ESD
yes
Head width
Head width
10 mm
Jaw length
Jaw length
9 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
81 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 451
Complete Catalog 2023 - 2024

Product Family

ESD Diagonal cutting pliers Slim 5540/41/42

The 554x series comprises high-precision small cutting pliers from the oval cutting pliers family with oval jaws. They offer excellent durability and allow access to confined areas thanks to their compact head dimensions. All models are equipped with ESD Ergo-Tek Slim handles, which are electrostatically dissipative and provide a secure grip (blue/grey).

The 5542 is equipped with a flush cutting edge, which is ideal for very clean cuts on small material. The 5541 has a flush cutting edge that provides clean cuts with some tolerances, while the 5540 is designed with a semi-flush cutting edge for more robust cuts. All models have blades with a hardness of 67 HRC, ensuring high durability and precision.


Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Price
Compare
I-ES5540.ESD - ESD Diagonal cutting pliers Slim 5540
I-ES5540.ESD
ESD Diagonal cutting pliers Slim 5540
mini bevel
extra small
tapered
1.15 mm
1.02 mm
52,55 EUR
I-ES5541.ESD - ESD Diagonal cutting pliers Slim 5541
I-ES5541.ESD
ESD Diagonal cutting pliers Slim 5541
with bevel
extra small
tapered
1.15 mm
0.4 mm
52,55 EUR
I-ES5542.ESD - ESD Diagonal cutting pliers Slim 5542
I-ES5542.ESD
ESD Diagonal cutting pliers Slim 5542
without bevel (flush cut)
extra small
tapered
0.81 mm
0.4 mm
52,55 EUR
