ESD Mini diagonal cutting pliers EUROline
ESD Mini diagonal cutting pliers EUROline

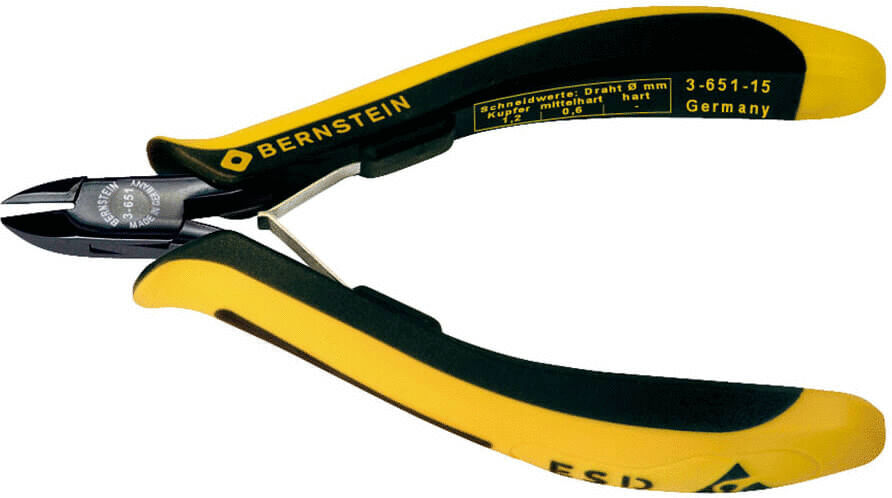

The ESD Mini Side Cutter EUROline by Bernstein is specifically designed for high-precision and delicate cuts in electronics and fine mechanics. With its particularly fine tip and a cutting length of 9.5 mm, this tool enables extremely accurate cuts, even with very fine materials such as soft wire up to a diameter of 1.5 mm and medium-hard material up to 0.8 mm.The compact head width of only 10 mm and the rounded head shape facilitate working in hard-to-reach places. Made from high-quality steel (HRC 56-58) and finished with a high-gloss burnished surface, the side cutter offers both high stability and durability, and protection. The ergonomically shaped 2-component ESD plastic handle, which has a conductive property between 10⁶ and 10⁹ Ohm, ensures safe handling of sensitive electronic components.
With a total length of 120 mm and a weight of only 65 g, this tool is not only lightweight and handy, but also an indispensable helper for demanding precise cutting tasks.
Details
- Type of pliers Type of pliers
- Mini diagonal cutting pliers
- Bevel Bevel
- mini bevel
- Head shape Head shape
- rounded
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 0.81 mm
- Length [mm] Length [mm]
- 120 mm
- Material Material
- Quality steel
- Surface Surface
- burnished brilliant
- ESD ESD
- yes
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9.5 mm
- Version Version
- with safety spring
- Weight Weight
- 65 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
Article image
Article description
Type of pliers
Bevel
Head shape
Head type/size
Max Ø soft
Max Ø medium
Max Ø hard
Price
Compare
Mini diagonal cutting pliers
mini bevel
rounded
small
1.45 mm
0.81 mm
Mini diagonal cutting pliers
mini bevel
snipe nose / narrow
small
1.45 mm
0.81 mm
Mini diagonal cutting pliers
mini bevel
snipe nose
small
1.45 mm
0.81 mm
Diagonal cutting pliers
with bevel
rounded
regular
1.45 mm
1.02 mm
0.4 mm
Diagonal cutting pliers
mini bevel
rounded
regular
1.45 mm
1.02 mm
Diagonal cutting pliers
with bevel
snipe nose / narrow
regular
1.45 mm
1.02 mm
0.3 mm
Diagonal cutting pliers
mini bevel
snipe nose / narrow
regular
1.45 mm
1.02 mm
Diagonal cutting pliers
mini bevel
angled
regular
0.81 mm
0.64 mm
Oblique end cutting pliers
mini bevel
oblique
small
1.15 mm
1.02 mm
0.4 mm
