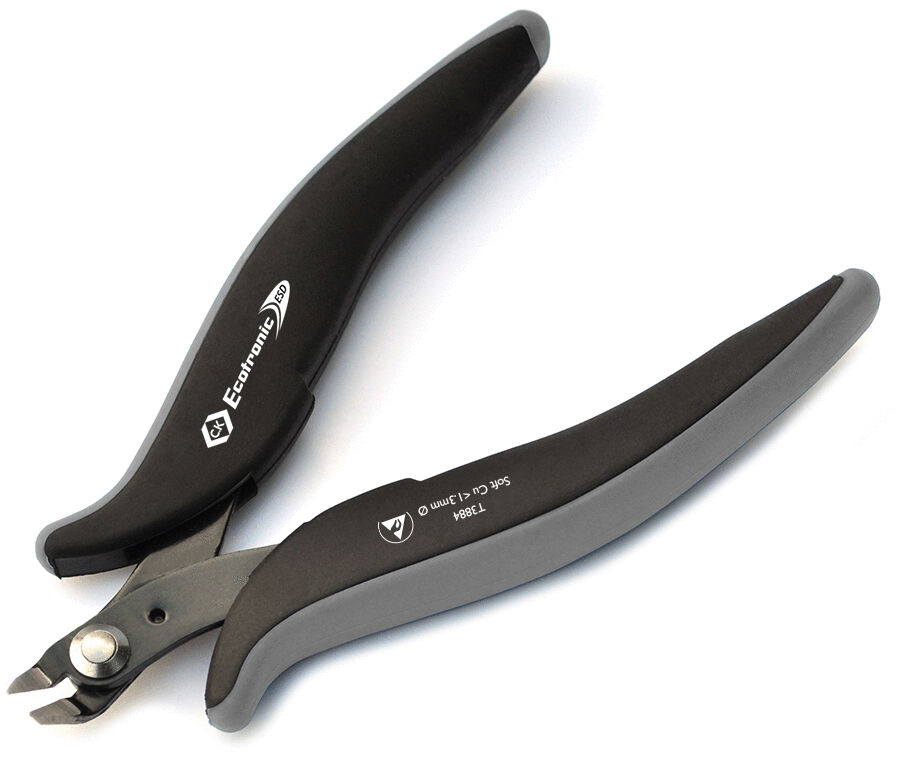

ESD diagonal cutting pliers 3884
ESD Side Cutter 3884
The CK Ecotronic side cutter is a precisely manufactured tool, specifically designed for fine cutting tasks in microelectronics and precision mechanics. This model combines the functionalities of an ESD side cutter with advanced features for improved performance and comfort. The blade, made of hardened special tool steel, and the sharp, precision-ground cutting edges allow for a flush cut, ideal for cutting soft copper wires up to a diameter of 1.3mm or 16AWG. Special cutting blades with reverse motion facilitate precise cutting of DIP pins on integrated circuits. The micro-conical head of the side cutter enables access even in very tight spaces. The electrostatically discharging, contoured two-component handles provide additional comfort and safety. A black oxidized surface ensures corrosion resistance and reduces glare. A gently acting return spring facilitates repeated cutting operations. The robust connection through a stainless steel rivet promises durability.

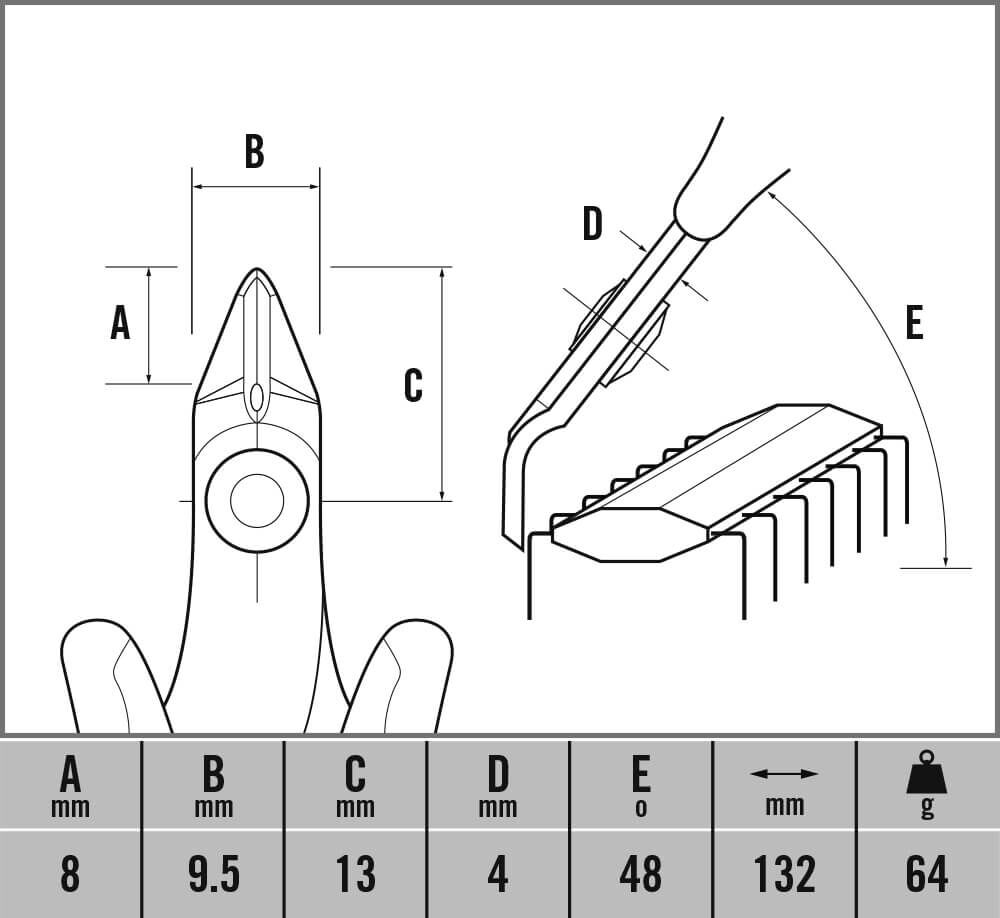

Technical Specifications:
- Total length: 132 mm
- Blade length: 8 mm
- Cutting angle: 48°
- Head height: 13 mm
- Head width: 9.5 mm
- Steel thickness: 2 mm
- Cutting capacity (copper only): 1.3 mm / 16 AWG
Item number: 3884.ESD
The CK Ecotronic side cutter is a precisely manufactured tool, specifically designed for fine cutting tasks in microelectronics and precision mechanics. This model combines the functionalities of an ESD side cutter with advanced features for improved performance and comfort. The blade, made of hardened special tool steel, and the sharp, precision-ground cutting edges allow for a flush cut, ideal for cutting soft copper wires up to a diameter of 1.3mm or 16AWG. Special cutting blades with reverse motion facilitate precise cutting of DIP pins on integrated circuits. The micro-conical head of the side cutter enables access even in very tight spaces. The electrostatically discharging, contoured two-component handles provide additional comfort and safety. A black oxidized surface ensures corrosion resistance and reduces glare. A gently acting return spring facilitates repeated cutting operations. The robust connection through a stainless steel rivet promises durability.
Technical Specifications:
- Total length: 132 mm
- Blade length: 8 mm
- Cutting angle: 48°
- Head height: 13 mm
- Head width: 9.5 mm
- Steel thickness: 2 mm
- Cutting capacity (copper only): 1.3 mm / 16 AWG
Item number: 3884.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel
- Length [mm] Length [mm]
- 132 mm
- AWG soft AWG soft
- 16
- Max Ø soft Max Ø soft
- 1.3 mm
- Head thickness Head thickness
- 4.0 mm
- Blade length Blade length
- 8
- Material Material
- steel
- Surface Surface
- oxidised
- ESD ESD
- yes
- Head shape Head shape
- oblique / 48 degree
- Head width Head width
- 9.5 mm
- Jaw length Jaw length
- 13 mm
Concave bevel
Specially shaped cutting edge that is curved inwards, i.e. has a concave shape. Flush cut. Only for soft materials such as fine wires.
