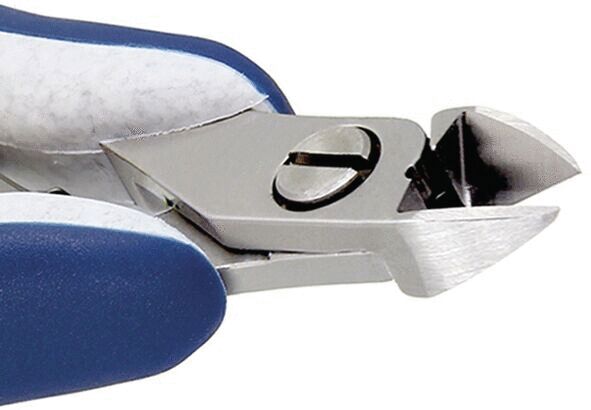

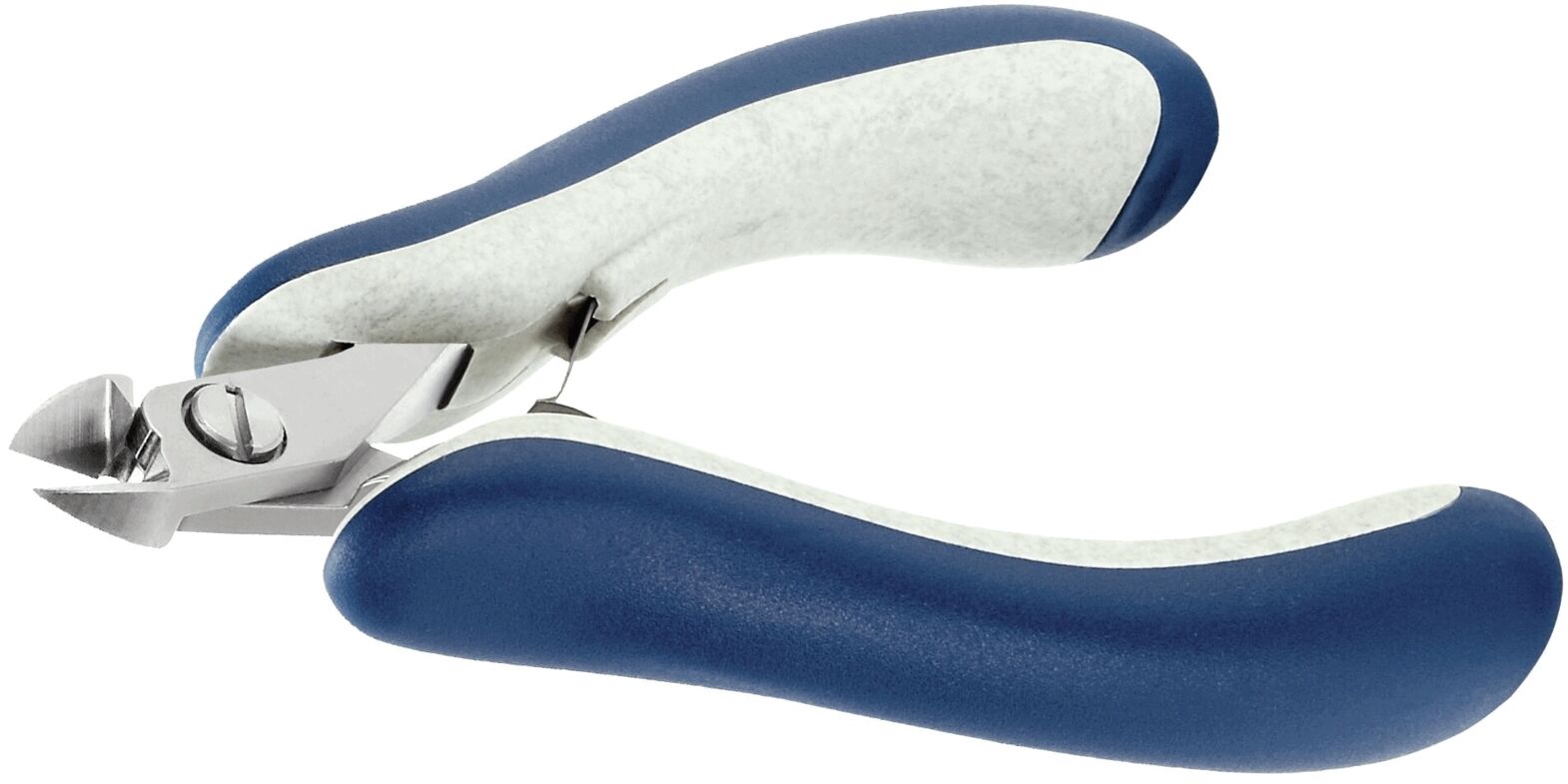

The ESD Side Cutter 5142 from ideal-tek is specifically designed for precise and clean cuts in electronics and precision mechanics. This model is characterized by its oval head shape, which offers excellent resistance and facilitates access to tight areas. The full-edge cutting edge is ideal for precise cuts on small material. Equipped with an ergonomically shaped ESD Ergo-tek handle, the side cutter ensures a secure grip and is particularly suitable for environments susceptible to electrostatic discharges. The blades are hardened to a hardness of 67HRC and are made of high-grade chrome-vanadium ball bearing steel. Additionally, a low-friction double spring ensures smooth and even opening of the tool. Technical Specifications: - Type of pliers: Side cutter without bevel, flush cut - Length: 125 mm - Head width: 10 mm - Head thickness: 6.4 mm - Jaw length: 9 mm - Head shape: oval - Handle material: PP / TPE - Material: Steel, sandblasted - Cu wire [mm]: 0.1-1.0 - Width: 60 mm - Height: 21 mm - Weight: 82 g - ESD: yes - AWG medium: 38-20 - AWG soft: 38-18 - Max Ø medium: 0.8 mm - Max Ø soft: 1.0 mm
Item number: I-E5142.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel, flush cut
- A [mm] A [mm]
- 125
- C [mm] C [mm]
- 10
- B [mm] B [mm]
- 9
- D [mm] D [mm]
- 6.4
- Cu wire [mm] Cu wire [mm]
- 0.1 -1.0
- AWG medium AWG medium
- 38-20
- AWG soft AWG soft
- 38-18
- Max Ø medium Max Ø medium
- 0.8 mm
- Max Ø soft Max Ø soft
- 1.0 mm
- Head thickness Head thickness
- 6.4 mm
- Height [mm] Height [mm]
- 21
- Width [mm] Width [mm]
- 60
- F [mm] F [mm]
- 0.25
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head type/size Head type/size
- small
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Weight Weight
- 82 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
