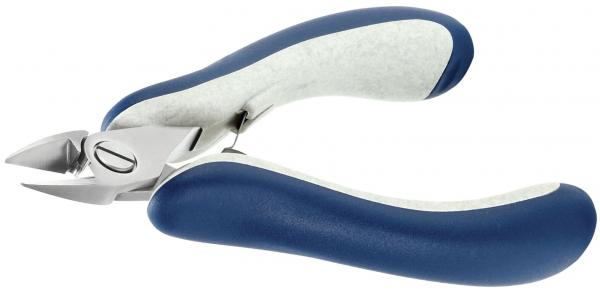

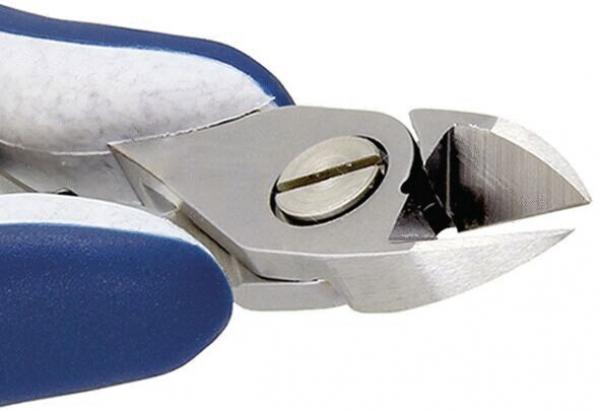

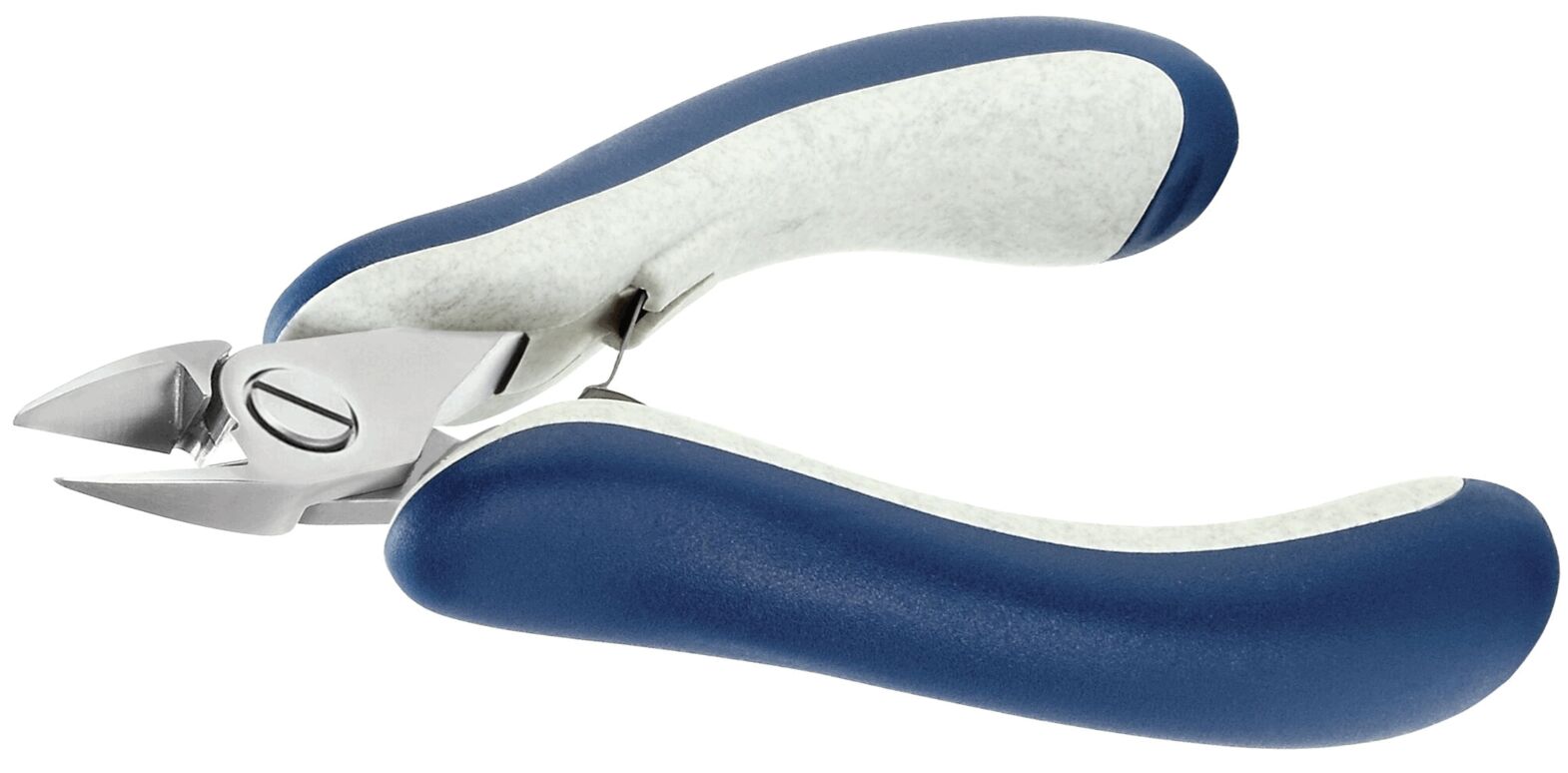

The ESD Side Cutter 5160L from the ERGO-TEK series by ideal-tek is designed for the highest precision requirements. This model features extra large, oval jaws and a semi-flush cutting edge, which allows for robust cuts. Made from chrome-vanadium ball bearing steel, these side cutters offer excellent resistance and cutting performance, specifically optimized for use in electronics and precision mechanics. The blades are hardened to a hardness of 67HRC, ensuring durability and precise cuts. The ergonomically shaped ESD Ergo-tek handle ensures a secure grip and is ideal for environments susceptible to electrostatic discharges.
Technical Specifications:
- Pliers Type: Side Cutter
- Edge: Small Bevel
- Total Length: 130 mm
- Head Width: 16 mm
- Jaw Length: 13 mm
- Head Thickness: 6.4 mm
- Wire Capacities: Cu 0.4-2.0 mm
- Width: 60 mm
- Height: 21 mm
- ESD Safe: Yes
- Weight: 88 g
- Handle Material: PP / TPE
- Material: Steel, sandblasted
- Head Shape: Oval, extra large, rounded
- AWG hard: 42-17, medium: 26-10, soft: 24-9
- Maximum Diameter hard: 1.1 mm, medium: 2.5 mm, soft: 3.0 mm
Ideal for technical professionals in ESD-sensitive environments.
Item number: I-E5160.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- small bevel
- A [mm] A [mm]
- 130
- C [mm] C [mm]
- 16
- B [mm] B [mm]
- 13
- D [mm] D [mm]
- 6.4
- Cu wire [mm] Cu wire [mm]
- 0.4 -2.0
- AWG hard AWG hard
- 42-17
- AWG medium AWG medium
- 26-10
- AWG soft AWG soft
- 24-9
- Max Ø hard Max Ø hard
- 1.1 mm
- Max Ø medium Max Ø medium
- 2.5 mm
- Max Ø soft Max Ø soft
- 3.0 mm
- Head thickness Head thickness
- 6.4 mm
- Height [mm] Height [mm]
- 21
- Width [mm] Width [mm]
- 60
- F [mm] F [mm]
- 1.2
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head type/size Head type/size
- extra large, rounded
- Head width Head width
- 16 mm
- Jaw length Jaw length
- 13 mm
- Weight Weight
- 88 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
