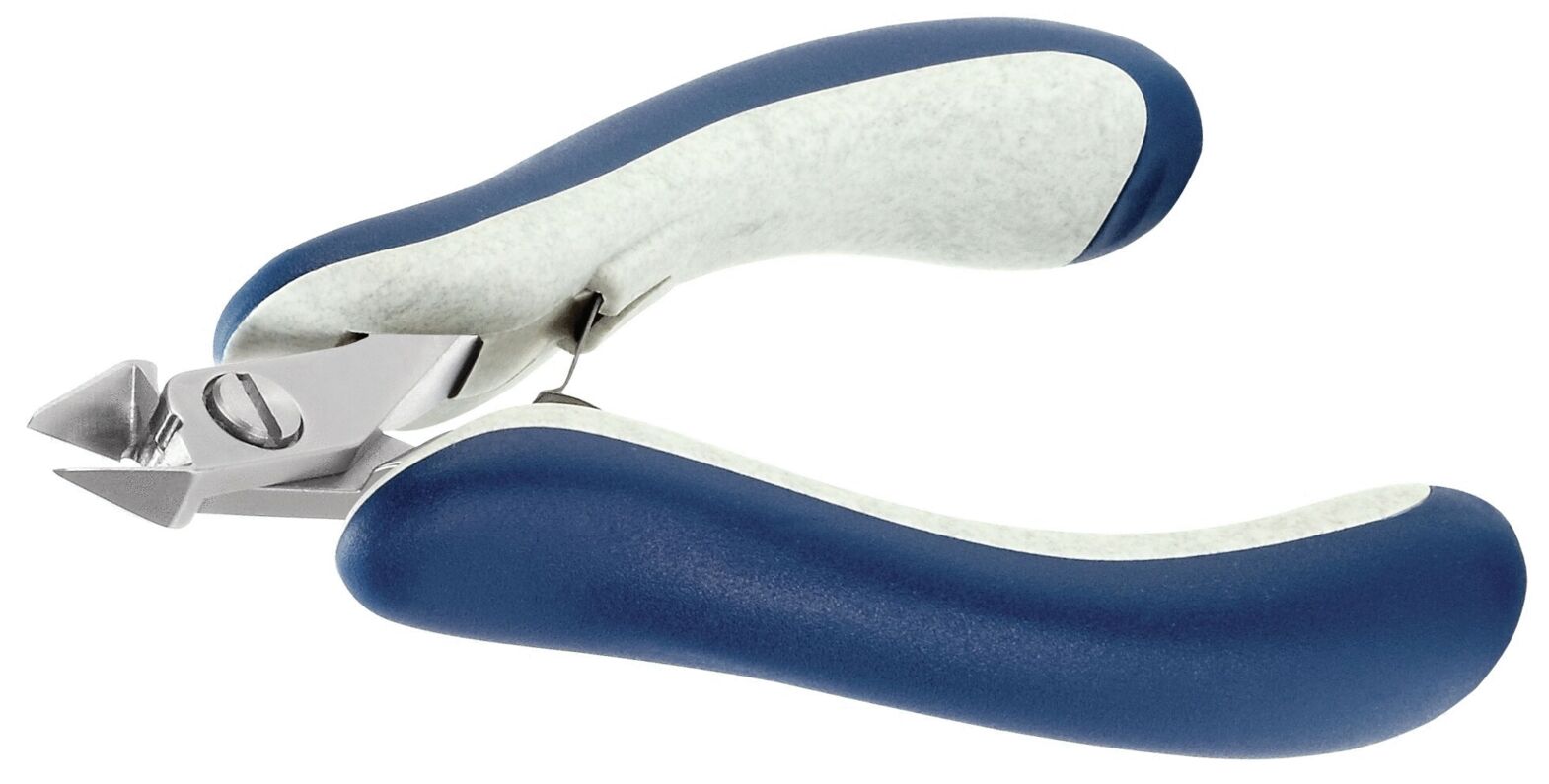

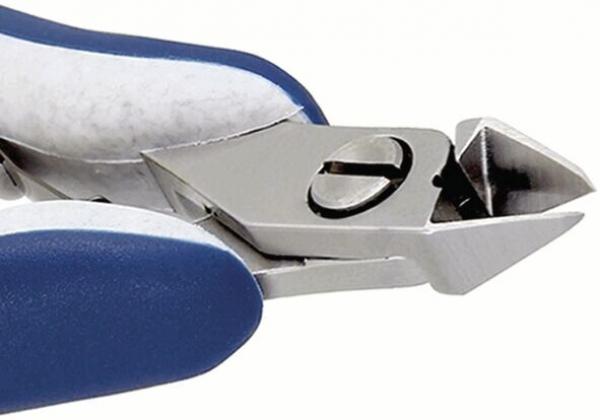

The Ideal-Tek ERGO-TEK ESD Side Cutter 5341 represents a combination of precision, ergonomics, and safety for electrostatically sensitive environments. This model features small, pointed, and tapered jaws that are ideal for precise cuts in hard-to-reach areas. The cutting edges are flush for clean cuts with minimal tolerances and hardened to a hardness of 67HRC. The ergonomically shaped ERGO-TEK handle provides optimal grip and comfort. The low-friction double spring allows for smooth and even opening of the tool. Made from high-quality chrome-vanadium ball bearing steel, the side cutter is robust and durable. Moreover, all versions are electrically conductive (ESD), qualifying them for use in ESD-sensitive areas. Technical Data: - Type: Side Cutter - Edge: Large Edge - Overall Length (A): 125 mm - Head Width (C): 10 mm - Jaw Length (B): 9 mm - Head Thickness (D): 6.4 mm - Cutting Capacity Cu Wire: 0.1 - 1.2 mm - Handle Material: PP / TPE - Material: Steel, sandblasted - Weight: 81 g
Item Number: I-E5341.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- large bevel
- A [mm] A [mm]
- 125
- C [mm] C [mm]
- 10
- B [mm] B [mm]
- 9
- D [mm] D [mm]
- 6.4
- Cu wire [mm] Cu wire [mm]
- 0.1 -1.2
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 38-17
- Max Ø medium Max Ø medium
- 0.10-1.00
- Max Ø soft Max Ø soft
- 0.10-1.20 mm
- Head thickness Head thickness
- 6.4 mm
- Head width Head width
- 10 mm
- Height [mm] Height [mm]
- 21
- Width [mm] Width [mm]
- 60
- F [mm] F [mm]
- 0.2
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head type/size Head type/size
- small
- Jaw length Jaw length
- 9 mm
- Weight Weight
- 81 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Type of pliers | Bevel | A [mm] | C [mm] | B [mm] | D [mm] | Cu wire [mm] | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
I-E5342.ESD ESD diagonal cutting pliers 5342 | Diagonal cutting pliers | without bevel, flush cut | 125 | 10 | 9 | 6.4 | 0.1 -1.0 | 52,55 EUR | |
|
I-E5340.ESD ESD diagonal cutting pliers 5340 | Diagonal cutting pliers | small bevel | 125 | 10 | 9 | 6.4 | 0.2 -1.2 | 52,55 EUR | |
|
I-E5341.ESD ESD diagonal cutting pliers 5341 | Diagonal cutting pliers | large bevel | 125 | 10 | 9 | 6.4 | 0.1 -1.2 | 52,55 EUR | |
| Show Compare List (0) | ||||||||||
