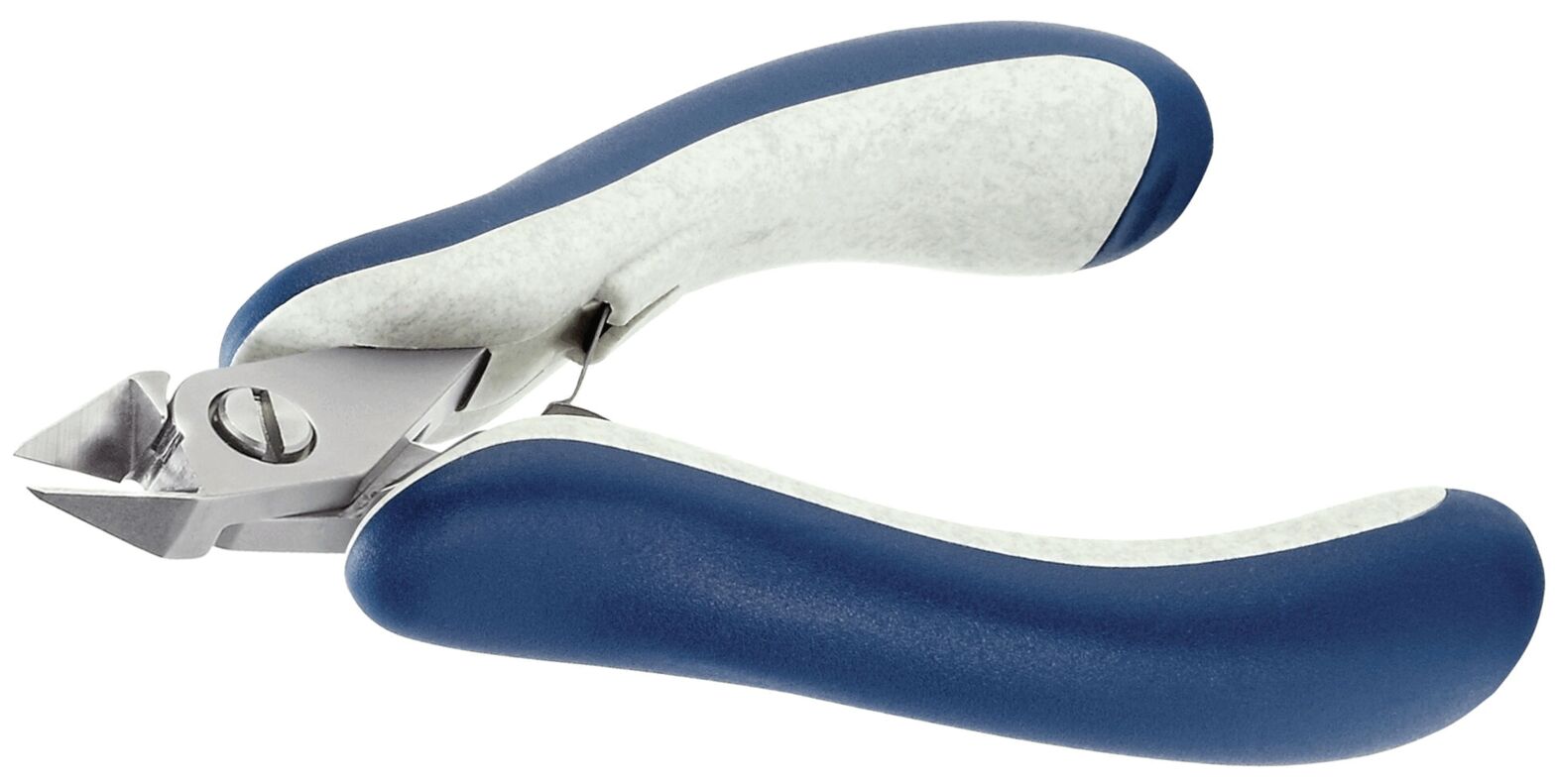

ESD diagonal cutting pliers 5350

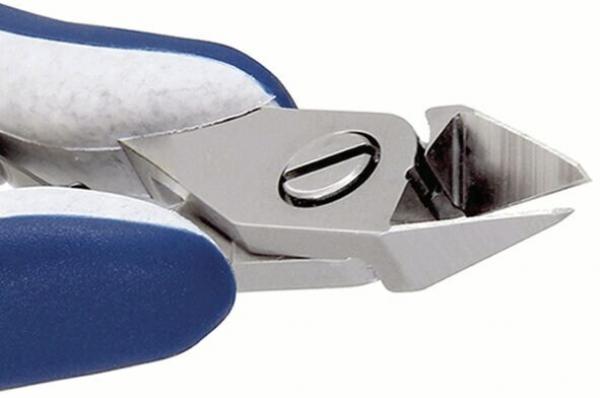

The ESD side cutter 5350 by ideal-tek is a high-precision tool specifically designed for demanding cutting tasks. This model is part of the family of large conical pliers and is characterized by its robust semi-flush cutting edge, which is ideal for precise cuts in sensitive environments. The cutter is equipped with an ergonomic ESD Ergo-Tek handle, which provides a secure grip and is particularly advantageous in areas exposed to electrostatic discharges.The blades of the side cutter are hardened to a hardness of 67 HRC, ensuring exceptional durability and precision. With a length of 125 mm and a weight of 85 g, the tool offers excellent handling. The head size of the cutter is normal, with a head thickness of 6.4 mm, a jaw length of 12 mm, and a head width of also 12 mm. The surface is sandblasted, which adds additional robustness.
The maximum cutting capacity of the tool includes soft materials up to a diameter of 1.63 mm, medium-hard materials up to 1.15 mm, and hard materials up to 0.7 mm. The side cutter is also ESD-safe and made of high-quality steel, with handles made of PP/TPE for improved comfort and control during use.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- Max Ø hard Max Ø hard
- 0.72 mm
- AWG hard AWG hard
- 48-21
- AWG medium AWG medium
- 38-17
- AWG soft AWG soft
- 29-14
- Head thickness Head thickness
- 6.4 mm
- Length Length
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with opening spring
- Weight Weight
- 85 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
