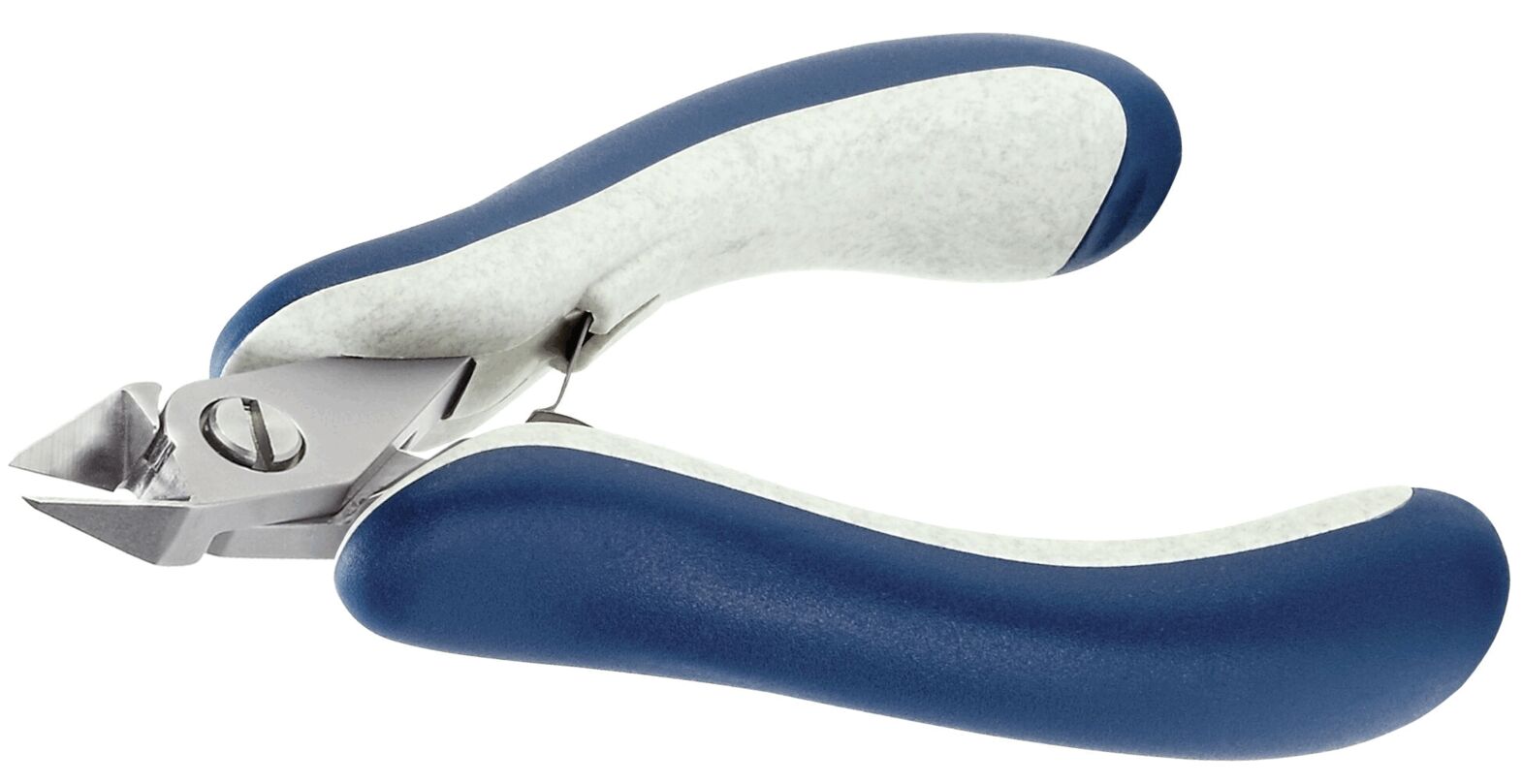

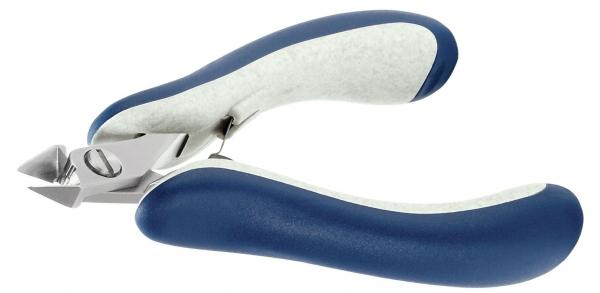

ESD diagonal cutting pliers 5351
The ESD side cutter 5351 from ideal-tek is a high-precision cutting tool specifically designed for demanding cutting tasks in environments exposed to electrostatic discharges. This model belongs to the family of large conical pliers and is distinguished by its excellent geometry and head dimensions, which allow for precise handling.The flush cutting edge of the 5351 is ideal for clean cuts with minimal tolerances, while the ESD Ergo-Tek handle provides a secure and comfortable grip. The blades of this side cutter are hardened to a hardness of 67 HRC, ensuring exceptional durability and cutting performance.
Technical details include a head thickness of 6.4 mm, a jaw length of 12 mm, and a head width of also 12 mm. The overall length is 125 mm and it weighs 85 g. The side cutter can cut soft materials up to a diameter of 1.63 mm and medium-hard materials up to 1.02 mm. The handle material is made from a combination of PP and TPE, while the body is made of robust, sandblasted steel.
The ESD side cutter 5351 is thus an ideal choice for precise and reliable cutting work in technically demanding environments.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-14
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:

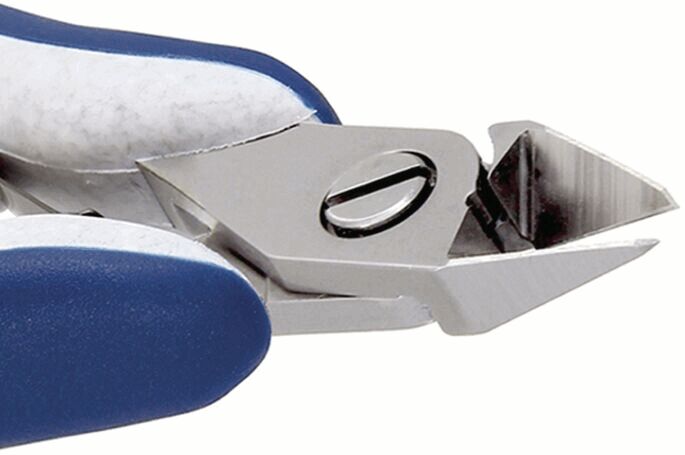

With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
