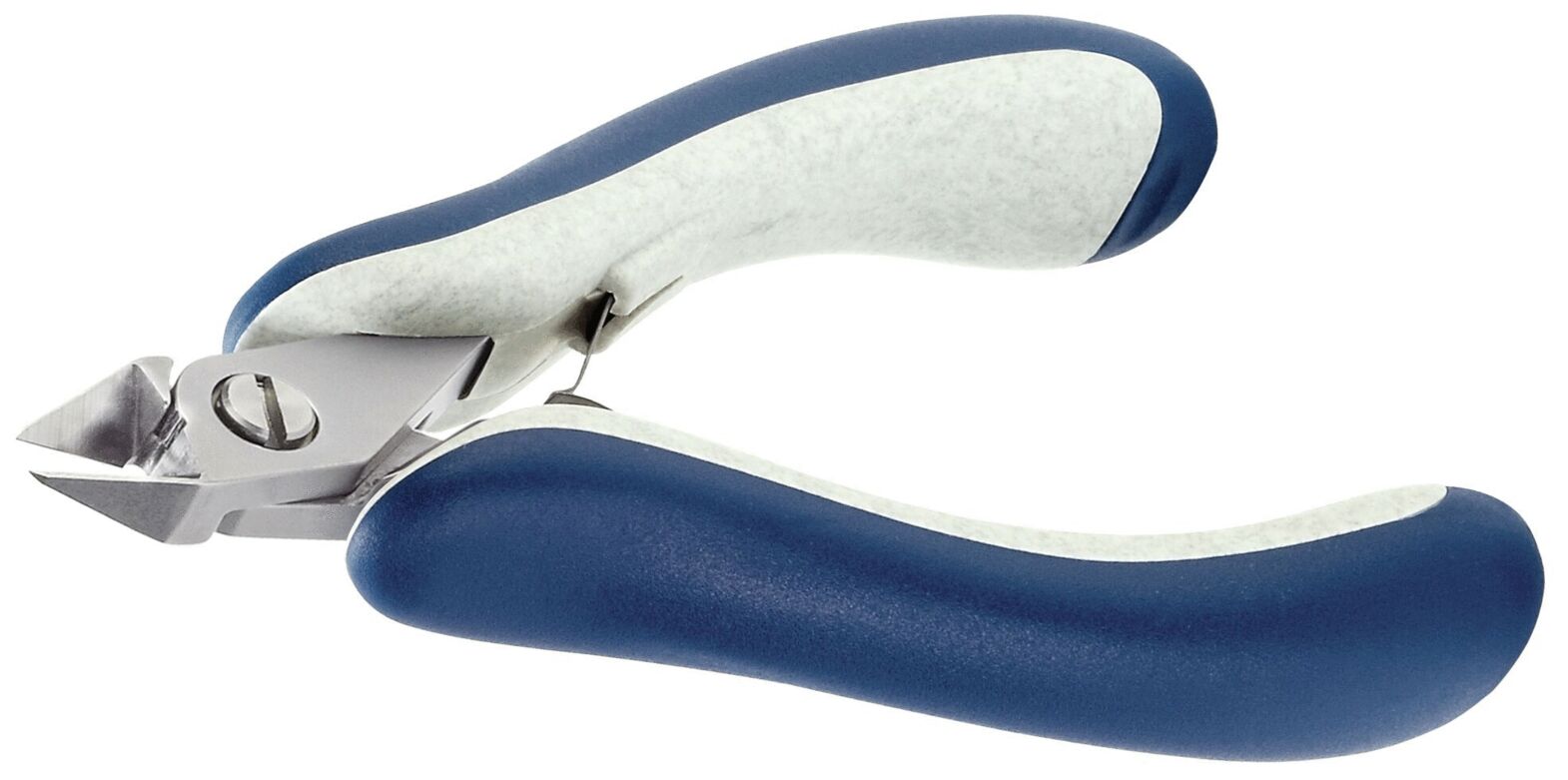

ESD diagonal cutting pliers 5352
The ESD side cutter 5352 from Ideal-Tek is a high-precision tool from the series of large conical cutting tools, specifically designed for demanding and precise cutting tasks. With a completely flush cutting edge, this cutter enables very clean cuts in small material, ideal for fine and precise applications.The robust construction of the side cutter includes a blade hardness of 67 HRC, which ensures exceptional durability and cutting accuracy. The ESD Ergo-Tek Slim handle provides a secure and comfortable grip, especially in environments susceptible to electrostatic discharges.

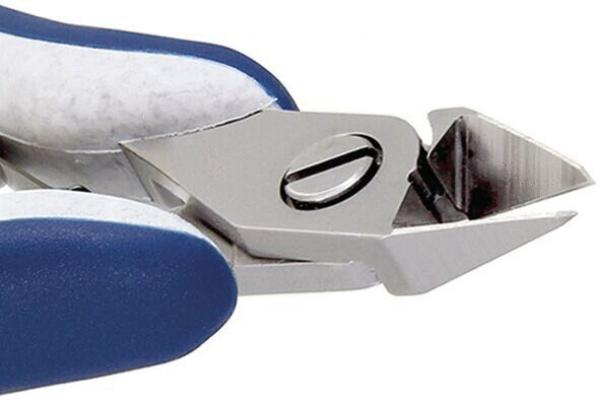

Technical specifications of the product include a length of 125 mm and a weight of 85 g. The head size is normal with a head width and thickness of 12 mm and 6.4 mm respectively. The cutter can cut soft material up to a diameter of 1.15 mm and medium-hard material up to 1.02 mm. The pliers are made from sandblasted steel, which promises additional robustness and durability. The conical head and the flush cutting edge without a burr complete the high-quality profile of this tool.
This makes the ESD side cutter 5352 an ideal choice for professionals working in sensitive electronic or precision mechanical work environments.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
