ESD diagonal cutting pliers 5540
(Product No.: I-E5540.ESD)
The image shows a nail clipper with ergonomic handles. The handles are blue and have a non-slip surface. The cutting blade is made of metal and slightly curved, suitable for trimming nails.
The image shows a nail clipper with a metallic cutting head that is slightly curved. The handles are ergonomically shaped and have a blue rubber coating.
Mobile Preview: The image shows a nail clipper with ergonomic handles. The handles are blue and have a non-slip surface. The cutting blade is made of metal and slightly curved, suitable for trimming nails.
Mobile Preview: The image shows a nail clipper with a metallic cutting head that is slightly curved. The handles are ergonomically shaped and have a blue rubber coating.
Notice / Inquire

ESD diagonal cutting pliers 5540

ESD diagonal cutting pliers 5540

dpvlink:
13251
Bevel:
mini bevel
Head type/size:
extra small
Max Ø soft:
1.15 mm
Max Ø medium:
1.02 mm
Properties:
Further product information

available available
52,55 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD diagonal cutting pliers 5540

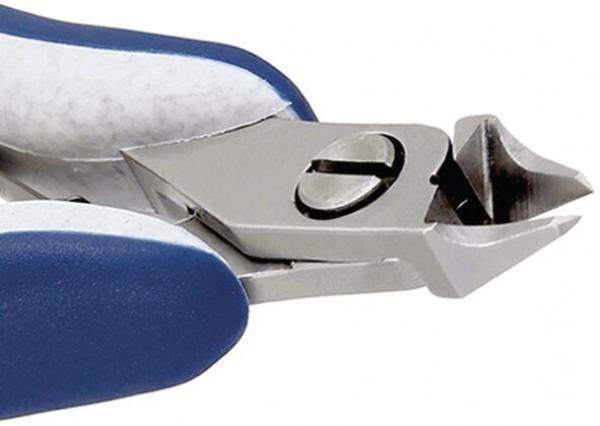

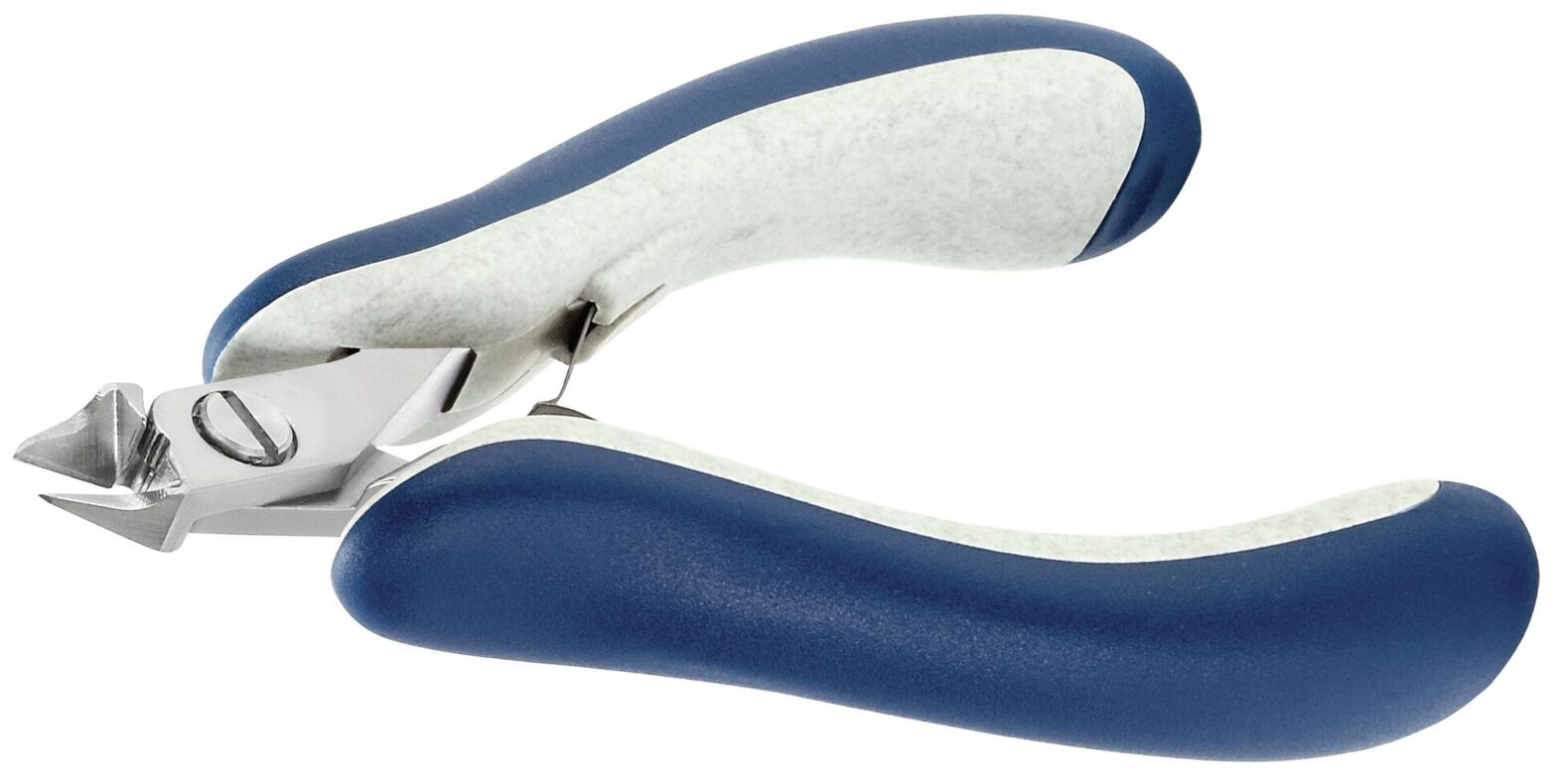

The ESD side cutter 5540 from ideal-tek is a precise cutting tool specifically designed for use in electrostatically sensitive environments. Featuring a semi-flush cutting edge and a hardness of 67 HRC, this model is excellent for robust cuts in demanding applications. The cutter has a mini-bevel and an extra small, conically shaped head that allows for precise handling in tight areas.
The total length is 125 mm with a weight of 81 g, making the cutter lightweight and easy to handle. The head thickness is 6.4 mm, the jaw length is 9 mm, and the head width is 10 mm. The maximum cutting capacity for soft material is 1.15 mm (AWG 32-17) and for medium-hard material 1.02 mm (AWG 38-18).
The ergonomically designed handle made from PP/TPE offers a secure grip and minimizes the risk of electrostatic discharge. The sandblasted surface of the steel-made tool gives it a robust and durable quality. Ideal for precise cutting tasks in technically demanding environments.
Bevel
Bevel
mini bevel
Head type/size
Head type/size
extra small
Max Ø soft
Max Ø soft
1.15 mm
Max Ø medium
Max Ø medium
1.02 mm
AWG medium
AWG medium
38-18
AWG soft
AWG soft
32-17
Head thickness
Head thickness
6.4 mm
Length
Length
125 mm
Material
Material
steel
Stick material
Stick material
PP / TPE
Surface
Surface
sandblastered
ESD
ESD
yes
Head shape
Head shape
tapered
Head width
Head width
10 mm
Jaw length
Jaw length
9 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
81 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 453
Complete Catalog 2023 - 2024

Product Family

Ideal-tek ESD diagonal cutting pliers 5540/41/42

The 554x series comprises high-precision ESD cutting tools from the family of small, beveled and recessed cutting tools. Thanks to their special geometry and head dimensions, these pliers offer the advantage of reaching small areas optimally and enable precise handling in tight applications. All models are equipped with ESD Ergo-Tek Slim handles, which are electrostatically dissipative and provide a secure grip.

  • Small, robust and slim - The pliers offer an optimum balance between durability and accessibility.
  • Double stainless steel leaf springs - Overlapping connection with screw for high strength and precision. Hardened alloy steel nuts withstand high cutting loads.
  • Perfect symmetry - The pliers are ergonomically designed for comfort and protection against repetitive motion injuries.

Ergo-tek: Ideal-tek sets new standards in ergonomics, quality and ESD safety standards with the introduction of the Ergo-tek series. This series offers ergonomic, ESD-safe and technical advantages and is designed for users who want to adapt high-precision tools to their personal preferences and applications..


Article image
Article description
Bevel
Head type/size
Max Ø soft
Max Ø medium
Price
Compare
I-E5540.ESD - ESD diagonal cutting pliers 5540
I-E5540.ESD
ESD diagonal cutting pliers 5540
mini bevel
extra small
1.15 mm
1.02 mm
52,55 EUR
I-E5541.ESD - ESD diagonal cutting pliers 5541
I-E5541.ESD
ESD diagonal cutting pliers 5541
with bevel
extra small
1.15 mm
0.4 mm
47,05 EUR
I-E5542.ESD - ESD diagonal cutting pliers 5542
I-E5542.ESD
ESD diagonal cutting pliers 5542
without bevel (flush cut)
extra small
0.81 mm
0.4 mm
52,55 EUR
