ESD diagonal cutting pliers E351TX

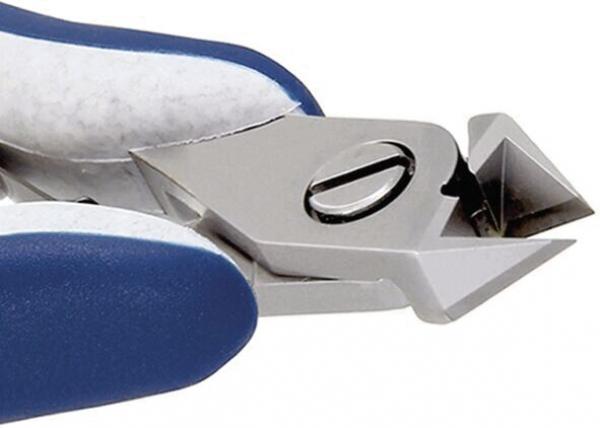

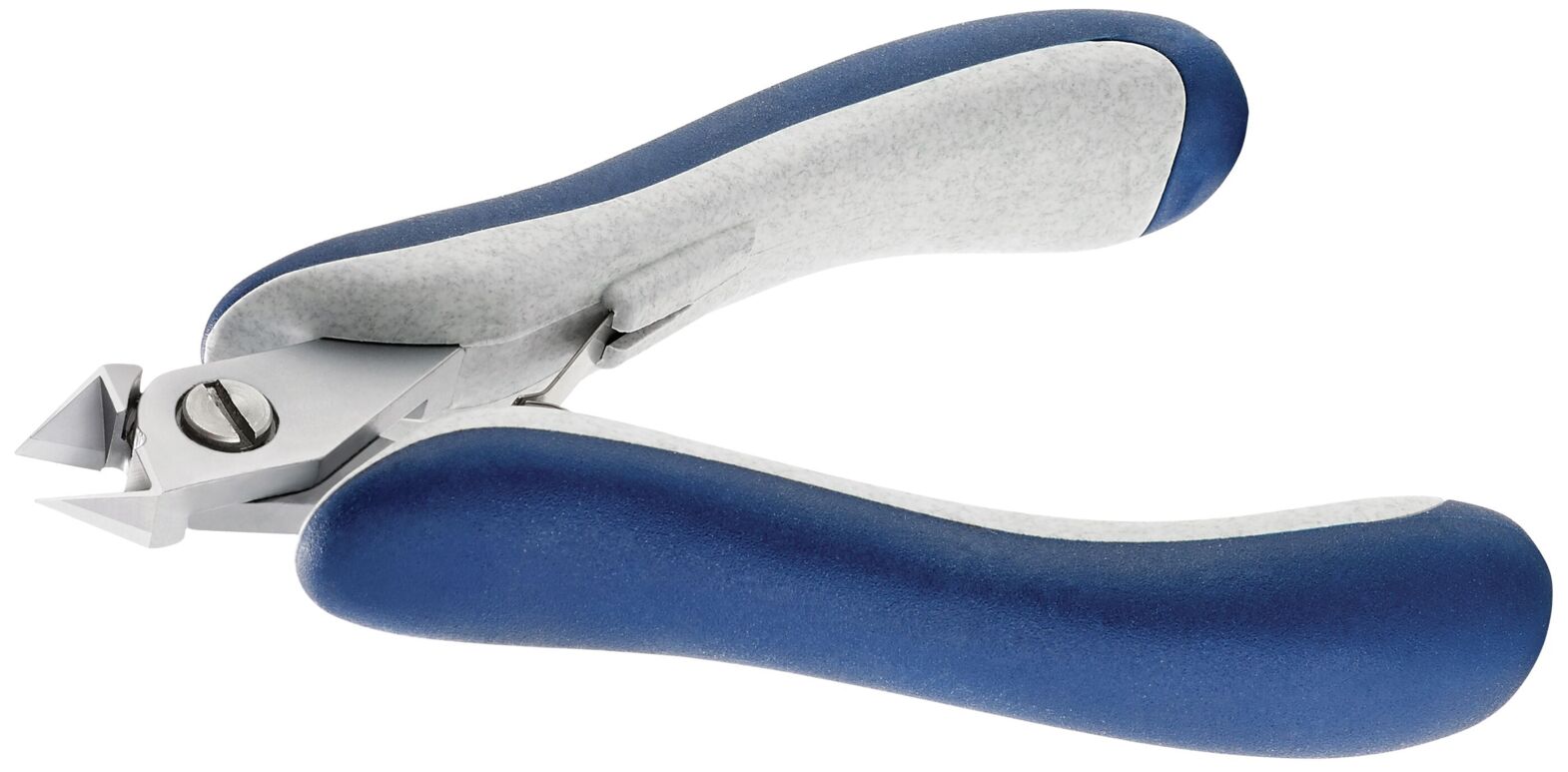

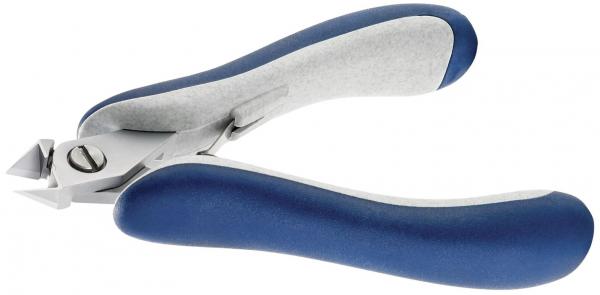

The ESD diagonal cutter E351TX from ideal-tek is distinguished by its high-precision manufacturing and the use of robust carbide. This model features a tapered head shape that facilitates access to hard-to-reach areas, and sharp jaws that enable precise work. The short blade length of the cutter ensures optimal transmission of cutting force, while the flush cutting edge is particularly suited for cutting through the hardest wires.The cutting edges are made from tungsten carbide and achieve a hardness of 82HRC, which guarantees long-lasting sharpness. The ergonomically shaped ESD Ergo-tek handle made from PP and TPE not only provides high comfort but also protects against electrostatic discharges, making the cutter especially suitable for sensitive work environments.
The side cutter has a total length of 123 mm, a weight of 83 g, and is equipped with a sandblasted surface that promises additional durability. With a maximum cutting capacity of 0.64 mm for soft materials up to 0.03 mm for hard materials, this tool combines precision with versatility and safety.
Details
- Bevel Bevel
- with bevel
- Head shape Head shape
- tapered
- Max Ø soft Max Ø soft
- 0.64 mm
- Max Ø medium Max Ø medium
- 0.57 mm
- Max Ø hard Max Ø hard
- 0.03 mm
- AWG hard AWG hard
- 48
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 123 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head type/size Head type/size
- extra small
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 7.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 83 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
