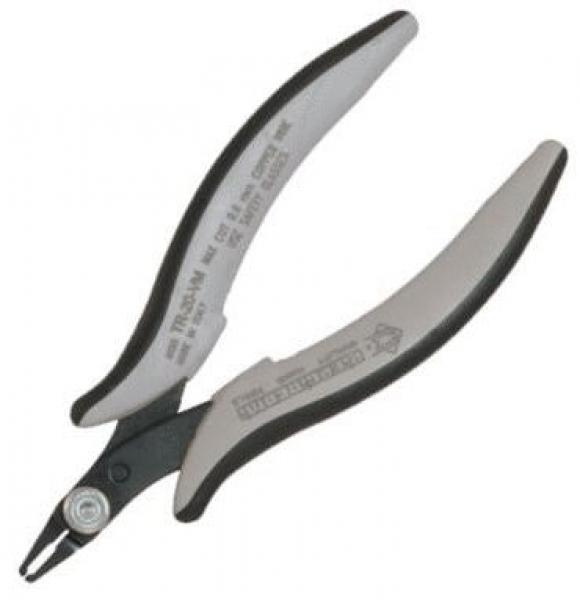

The image shows a pair of pliers with ergonomic handles. The handles are gray with black rubber inserts. The plier jaws are narrow and have a sharp cutting edge, suitable for cutting.

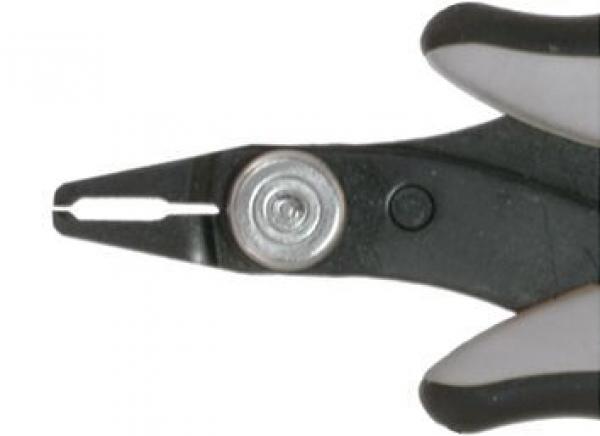

The image shows a pair of pliers with black and gray handles. At the tip, the cutting edges are visible, which are used for gripping and cutting wires or similar materials.

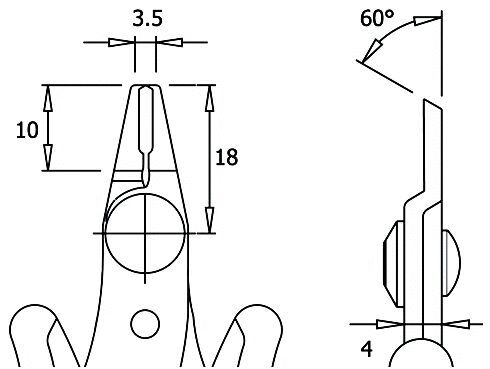

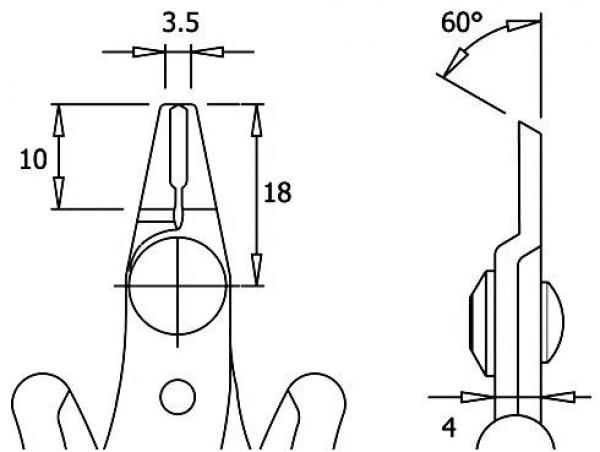

The image displays technical drawings of a part. On the left is the front view, on the right the side view. Dimensions are provided: width 3.5 mm, height 18 mm, and a 60° angle.
Preview: The image shows a pair of pliers with ergonomic handles. The handles are gray with black rubber inserts. The plier jaws are narrow and have a sharp cutting edge, suitable for cutting.
Preview: The image shows a pair of pliers with black and gray handles. At the tip, the cutting edges are visible, which are used for gripping and cutting wires or similar materials.
Preview: The image displays technical drawings of a part. On the left is the front view, on the right the side view. Dimensions are provided: width 3.5 mm, height 18 mm, and a 60° angle.
End cutting pliers TR-20-VM.D
(Product No.: TR-20-VM.D)
The image shows a pair of pliers with ergonomic handles. The handles are gray with black rubber inserts. The plier jaws are narrow and have a sharp cutting edge, suitable for cutting.
The image shows a pair of pliers with black and gray handles. At the tip, the cutting edges are visible, which are used for gripping and cutting wires or similar materials.
The image displays technical drawings of a part. On the left is the front view, on the right the side view. Dimensions are provided: width 3.5 mm, height 18 mm, and a 60° angle.
Mobile Preview: The image shows a pair of pliers with ergonomic handles. The handles are gray with black rubber inserts. The plier jaws are narrow and have a sharp cutting edge, suitable for cutting.
Mobile Preview: The image shows a pair of pliers with black and gray handles. At the tip, the cutting edges are visible, which are used for gripping and cutting wires or similar materials.
Mobile Preview: The image displays technical drawings of a part. On the left is the front view, on the right the side view. Dimensions are provided: width 3.5 mm, height 18 mm, and a 60° angle.
Notice

End cutting pliers TR-20-VM.D

End cutting pliers TR-20-VM.D

dpvlink:
2100
Type of pliers:
Oblique end cutting pliers
Length :
132 mm
Bevel:
small bevel
Head shape:
straight
Max Ø soft:
0.64 mm
Properties:
Further product information

available available
12,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

End cutting pliers TR-20-VM.D

The Piergiacomi TR-20-VM.D diagonal cutter is a highly specialized micro cutting plier designed for precise cutting tasks in hard-to-reach areas. With a 60° angled cutting edge and a length of 132 mm, this tool enables the cutting of materials such as wire and thin metal rods up to a maximum diameter of 0.64 mm (AWG 22).
The robust steel construction and the reinforced, straight head shape with a head width of 9.5 mm and a head thickness of 4 mm ensure durability and reliability. The cutting force is 2 kg, making the diagonal cutter particularly effective. Additionally, the tool is ESD-safe, making it ideal for use in electronics manufacturing. With a blade length of 10 mm and a small bevel, the diagonal cutter offers excellent performance for fine and precise cuts. This tool is an indispensable addition for professional applications in crafts and metal processing.
Type of pliers
Type of pliers
Oblique end cutting pliers
Length
Length
132 mm
Bevel
Bevel
small bevel
Head shape
Head shape
straight
Max Ø soft
Max Ø soft
0.64 mm
AWG soft
AWG soft
22
Head thickness
Head thickness
4 mm
Blade length
Blade length
10 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
2 kg
Head type/size
Head type/size
small
Head width
Head width
9.5 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 459
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Type of pliers
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
TR-20-M.D - Diagonal cutting pliers TR-20-M.D
TR-20-M.D
Diagonal cutting pliers TR-20-M.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm

9,95 EUR
TR-20-M-A.D - Diagonal cutting pliers TR-20-M-A.D
TR-20-M-A.D
Diagonal cutting pliers TR-20-M-A.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm
with opening spring
10,50 EUR
TR-25-P-A.D - Diagonal cutting pliers TR-25-P A.D
TR-25-P-A.D
Diagonal cutting pliers TR-25-P A.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
1.02 mm
with opening spring
11,05 EUR
TR-20-SM.D - Diagonal cutting pliers TR-20-SM.D
TR-20-SM.D
Diagonal cutting pliers TR-20-SM.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm

9,95 EUR
TR-20-50-M.D - Diagonal cutting pliers TR-20-50-M.D
TR-20-50-M.D
Diagonal cutting pliers TR-20-50-M.D
Diagonal cutting pliers
131 mm
without bevel
angled
50 °
0.64 mm

9,90 EUR
TR-20-TM.D - Diagonal cutting pliers TR-20-TM.(D)
TR-20-TM.D
Diagonal cutting pliers TR-20-TM.(D)
Diagonal cutting pliers
129 mm
without bevel
angled
50 °
0.64 mm

14,65 EUR
TR-20-VM.D - End cutting pliers TR-20-VM.D
TR-20-VM.D
End cutting pliers TR-20-VM.D
Oblique end cutting pliers
132 mm
small bevel
straight

0.64 mm

12,05 EUR
