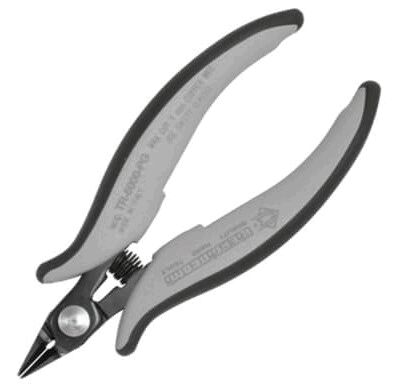

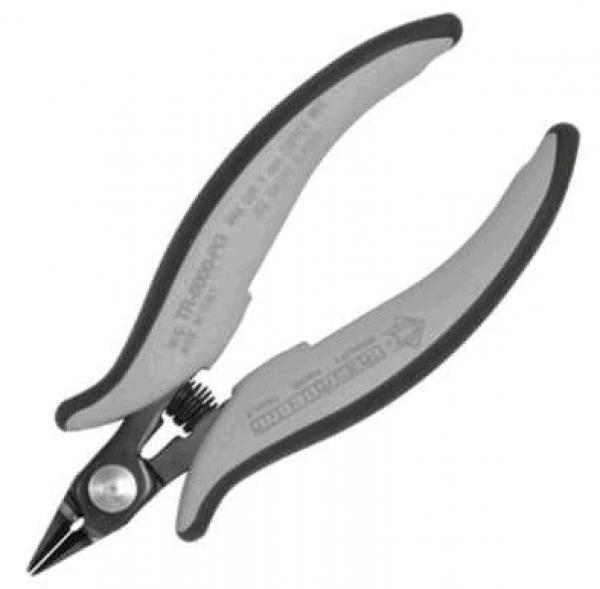

The image shows a narrow pair of pliers with ergonomic handles. The handles are gray and black, while the tips are metallically shiny. It is used for cutting or gripping small objects.

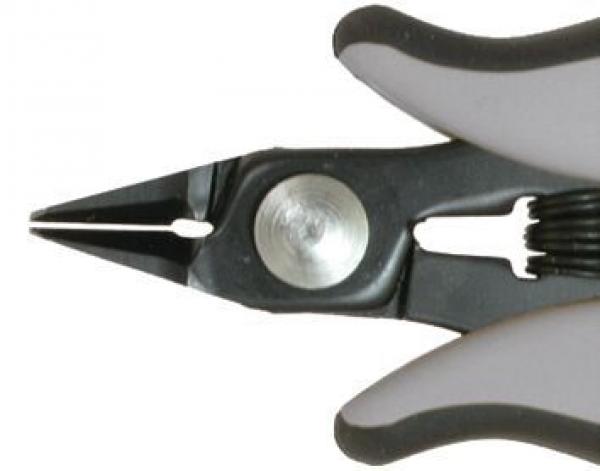

The image shows a pair of metal tongs with pointed tips. The handle is ergonomically shaped and has a gray, rubberized surface for better grip. In the middle, there is a round, metallic plate.

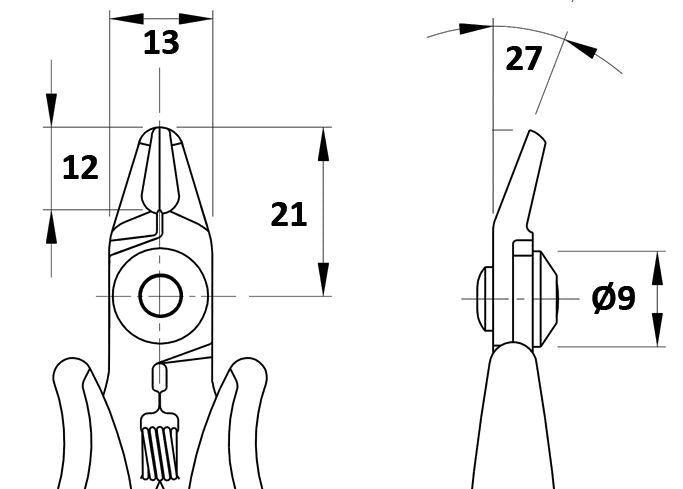

The image shows a technical drawing of a pair of pliers. It has two handles, a pointed working surface, and dimensions for various parts, such as length and Ø.
Preview: The image shows a narrow pair of pliers with ergonomic handles. The handles are gray and black, while the tips are metallically shiny. It is used for cutting or gripping small objects.
Preview: The image shows a pair of metal tongs with pointed tips. The handle is ergonomically shaped and has a gray, rubberized surface for better grip. In the middle, there is a round, metallic plate.
Preview: The image shows a technical drawing of a pair of pliers. It has two handles, a pointed working surface, and dimensions for various parts, such as length and Ø.
High-leverage diagonal cutting pliers TR-5000-PG.D
(Product No.: TR-5000-PG.D)
The image shows a narrow pair of pliers with ergonomic handles. The handles are gray and black, while the tips are metallically shiny. It is used for cutting or gripping small objects.
The image shows a pair of metal tongs with pointed tips. The handle is ergonomically shaped and has a gray, rubberized surface for better grip. In the middle, there is a round, metallic plate.
The image shows a technical drawing of a pair of pliers. It has two handles, a pointed working surface, and dimensions for various parts, such as length and Ø.
Mobile Preview: The image shows a narrow pair of pliers with ergonomic handles. The handles are gray and black, while the tips are metallically shiny. It is used for cutting or gripping small objects.
Mobile Preview: The image shows a pair of metal tongs with pointed tips. The handle is ergonomically shaped and has a gray, rubberized surface for better grip. In the middle, there is a round, metallic plate.
Mobile Preview: The image shows a technical drawing of a pair of pliers. It has two handles, a pointed working surface, and dimensions for various parts, such as length and Ø.
Notice

High-leverage diagonal cutting pliers TR-5000-PG.D

High-leverage diagonal cutting pliers TR-5000-PG.D

dpvlink:
1880
Bevel:
without bevel
Head type/size:
regular
Max Ø soft:
1.02 mm
Head shape:
angled
Degree of bending:
27 °
Properties:
Further product information

available available
16,25 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

High-leverage diagonal cutting pliers TR-5000-PG.D

The TR-5000-PG.D power side cutter from Piergiacomi is specially designed for precise cuts in soft materials such as copper (maximum diameter 1.02 mm) and is excellent for finishing in the plastic sector. With a length of 138 mm and a weight of only 90g, this tool offers excellent handling. The curved surface of the blades ensures that the cut parts have a finished quality, which minimizes subsequent processing steps.
The technical characteristics include a blade length of 12 mm, a head width of 13 mm, and a head thickness of 6 mm. The bending angle of 27° and the angled head shape facilitate working in difficult angles. The side cutter is ESD-safe and made of robust steel, ensuring a long lifespan and high cutting force of 5 kg. Ideal for technical professionals in the electronics and plastics industries who value precision and efficiency.
Bevel
Bevel
without bevel
Head type/size
Head type/size
regular
Max Ø soft
Max Ø soft
1.02 mm
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
AWG soft
AWG soft
18
Head thickness
Head thickness
6 mm
Blade length
Blade length
12 mm
Length
Length
138 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
5 kg
Head width
Head width
13 mm
Type of pliers
Type of pliers
High-leverage diagonal cutting pliers
Weight
Weight
90 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 459
