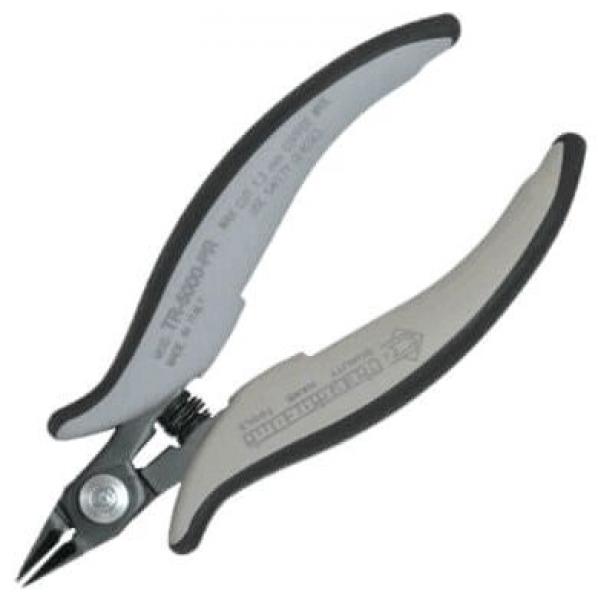

High-leverage diagonal cutting pliers TR-5000-PR-A.D

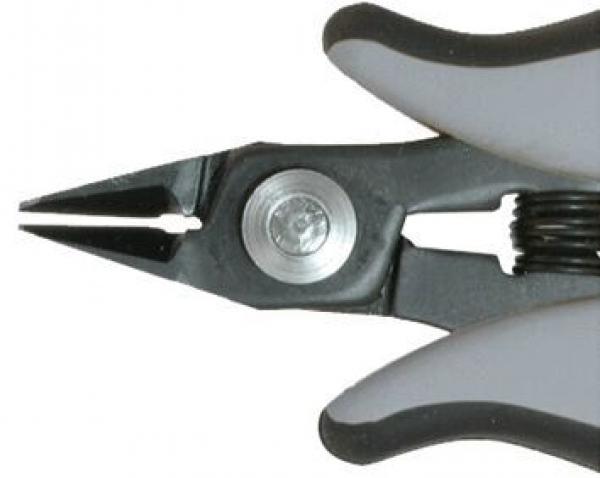

The Piergiacomi TR-5000-PR-A.D side cutter is a precise tool for technical professionals, specifically designed for cutting copper wire up to a diameter of 1.30 mm (AWG 16). With a total length of 138 mm and a head width of 13 mm, this model allows for precise handling. The angled head shape and the small bevel facilitate the separation of material in hard-to-reach areas.
The cutting force of 5 kg and the high-quality steel construction ensure durability and reliability. Equipped with a safety spring, it additionally increases operational safety. Weighing only 90 g and with a head thickness of 5 mm, the side cutter offers an excellent balance between strength and manageability. The ESD safety ensures that the side cutter can also be used in sensitive electronic working environments. The bend angle of 27° and the blade length of 12 mm complete the profile of this high-quality tool.
The cutting force of 5 kg and the high-quality steel construction ensure durability and reliability. Equipped with a safety spring, it additionally increases operational safety. Weighing only 90 g and with a head thickness of 5 mm, the side cutter offers an excellent balance between strength and manageability. The ESD safety ensures that the side cutter can also be used in sensitive electronic working environments. The bend angle of 27° and the blade length of 12 mm complete the profile of this high-quality tool.

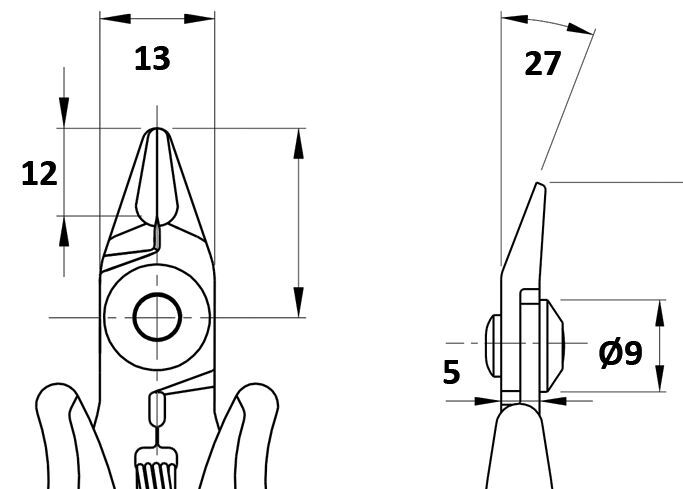

Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.29 mm
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 12 mm
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head shape Head shape
- angled
- Head width Head width
- 13 mm
- Type of pliers Type of pliers
- High-leverage diagonal cutting pliers
- Version Version
- with safety spring
- Degree of bending Degree of bending
- 27 °
- Weight Weight
- 90 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
