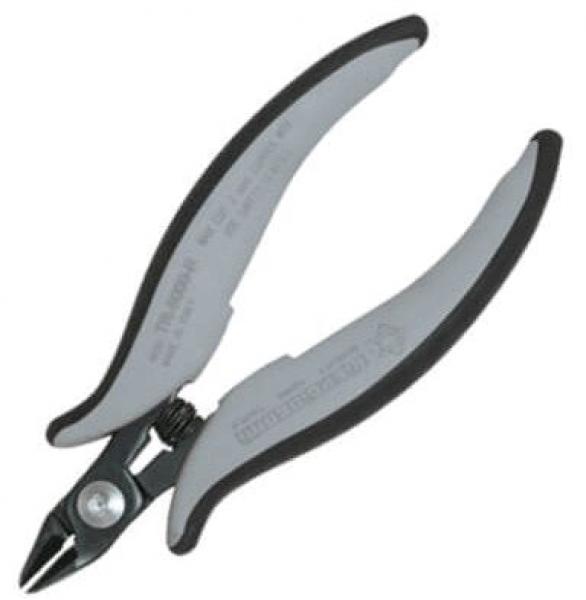

The image shows a pair of pliers with ergonomic, gray handles and a narrow, pointed cutting edge. It features a mechanical spring mechanism for easy gripping and cutting.

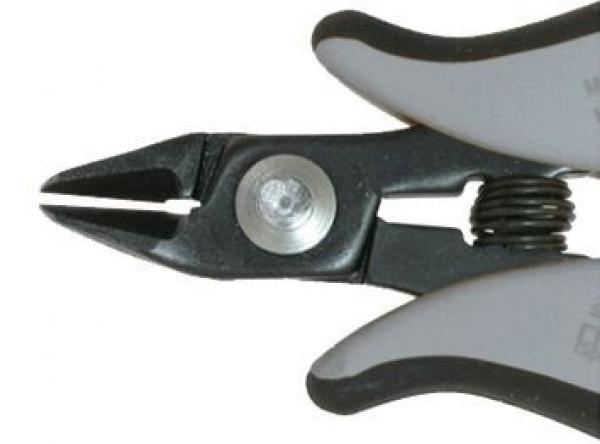

The image shows a pair of pliers with gray and black handles. The long side features a narrow, pointed edge suitable for gripping and cutting. A round, silver button is visible.
Preview: The image shows a pair of pliers with ergonomic, gray handles and a narrow, pointed cutting edge. It features a mechanical spring mechanism for easy gripping and cutting.
Preview: The image shows a pair of pliers with gray and black handles. The long side features a narrow, pointed edge suitable for gripping and cutting. A round, silver button is visible.
High-leverage diagonal cutting pliers TR-5000-R-A.D
(Product No.: TR-5000-R-A.D)
The image shows a pair of pliers with ergonomic, gray handles and a narrow, pointed cutting edge. It features a mechanical spring mechanism for easy gripping and cutting.
The image shows a pair of pliers with gray and black handles. The long side features a narrow, pointed edge suitable for gripping and cutting. A round, silver button is visible.
Mobile Preview: The image shows a pair of pliers with ergonomic, gray handles and a narrow, pointed cutting edge. It features a mechanical spring mechanism for easy gripping and cutting.
Mobile Preview: The image shows a pair of pliers with gray and black handles. The long side features a narrow, pointed edge suitable for gripping and cutting. A round, silver button is visible.
Notice

High-leverage diagonal cutting pliers TR-5000-R-A.D

High-leverage diagonal cutting pliers TR-5000-R-A.D

dpvlink:
1880
Bevel:
without bevel
Head type/size:
small
Max Ø soft:
2.05 mm
Head shape:
angled
Degree of bending:
27 °
Properties:
Further product information

available available
15,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

High-leverage diagonal cutting pliers TR-5000-R-A.D

The TR-5000-R-A.D heavy-duty side cutter from Piergiacomi stands out with its compact length of 138 mm and high-quality steel construction. This model is specifically designed for cutting copper wire up to a diameter of 2.00 mm (equivalent to AWG 12) and offers precise cuts thanks to its small cutting edge. The angled head shape and a head width of 13 mm also allow for good maneuverability in tight work areas.
The pliers have a cutting force of 8 kg and a head thickness of 5 mm, making them particularly robust. The integrated safety spring supports controlled and safe operation. Weighing 92 g and with a blade length of 10 mm, this tool provides excellent handling. The 27° bending angle and ESD safety complete the profile of the heavy-duty side cutter, making it ideal for precise and demanding cutting tasks.
Bevel
Bevel
without bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
2.05 mm
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
AWG soft
AWG soft
12
Head thickness
Head thickness
5 mm
Blade length
Blade length
10 mm
Length
Length
138 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
8 kg
Head width
Head width
13 mm
Type of pliers
Type of pliers
High-leverage diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
92 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 458
Complete Catalog 2023 - 2024
