High-leverage diagonal cutting pliers TRR-58-A.D
High-leverage diagonal cutting pliers TRR-58-A.D

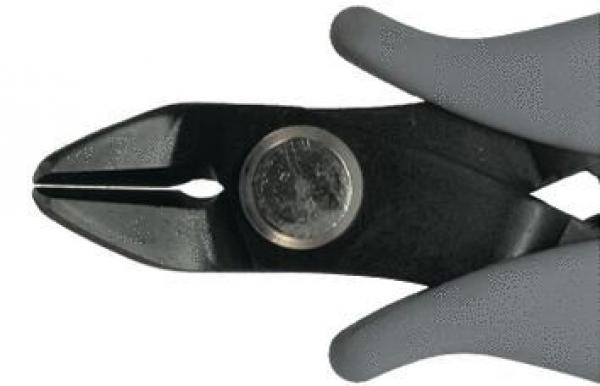

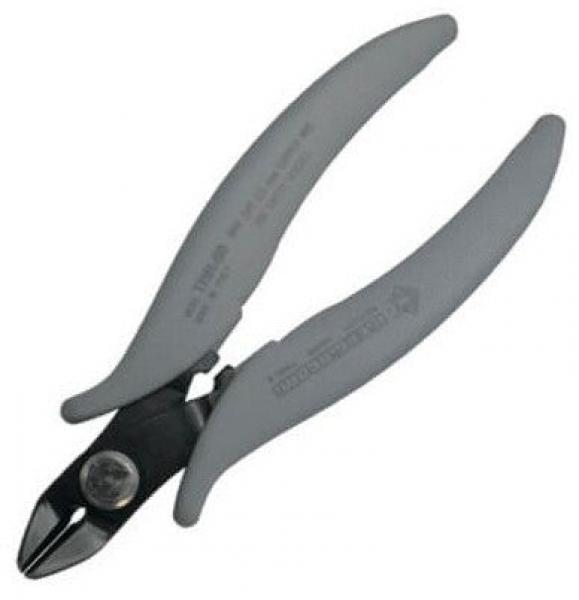

The side cutter TRR-58-A.D from Piergiacomi combines robustness and precision in a compact tool. With a length of 160 mm and a head width of 16 mm, this side cutter is ideal for precise cuts, even with the hardest materials. The blades are specially hardened, which allows for a maximum cutting force of 15 kg and facilitates the cutting process with a maximum diameter of 2.59 mm for soft materials.The Mini-Wate blade shape, combined with a head shape that is angled, enables an efficient cutting angle of 27°. The large head type and the head thickness of 6 mm further support the tool's durability and robustness. The design with a safety spring and ESD safety makes the side cutter a secure tool in any professional environment.
The steel material guarantees high resistance to wear. This high-quality tool is therefore an excellent choice for technical professionals who value efficiency and precision.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- large
- Max Ø soft Max Ø soft
- 2.59 mm
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- AWG soft AWG soft
- 10
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 14 mm
- Length Length
- 160 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 15 kg
- Head width Head width
- 16 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with opening spring
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
High-leverage diagonal cutting pliers series Evolution
Article image
Article description
Bevel
Head type/size
Max Ø soft
Head shape
Degree of bending
Price
Compare
mini bevel
small
2.05 mm
angled
27 °
without bevel
small
2.05 mm
angled
27 °
mini bevel
regular
1.29 mm
angled
27 °
without bevel
regular
1.29 mm
angled
27 °
without bevel
regular
1.02 mm
angled
27 °
mini bevel
small
2.59 mm
angled
27 °
without bevel
large
2.59 mm
angled
27 °
mini bevel
large
2.59 mm
angled
27 °
mini bevel
large
2.59 mm
angled
27 °
without bevel
large
2.05 mm
angled
27 °
