High-leverage diagonal cutting pliers TRR-58-B
High-leverage diagonal cutting pliers TRR-58-B

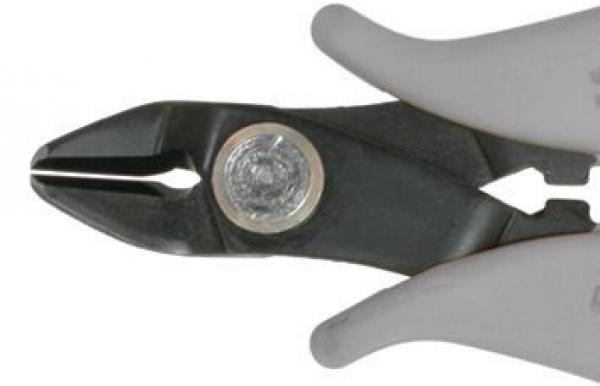

The side cutter TRR-58-B.D from Piergiacomi is distinguished by its precise workmanship and high-quality material selection. With a total length of 160 mm and a blade length of 14 mm, this tool enables precise cuts. The special feature of this model lies in the curved surface of the blades, which ensures that cut materials have a processed quality, reducing the need for further finishing.The head of the side cutter is angled and large, with a width of 16 mm and a thickness of 6 mm, allowing for optimal handling. The maximum diameter for soft materials is 2.05 mm. The cutting force of 15 kg and the bending degree of 27° support efficient work even under demanding conditions. Additionally, the tool is ESD-safe and made from robust steel, promising a long lifespan. Ideal for technical applications where precision and reliability are required.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- large
- Max Ø soft Max Ø soft
- 2.05 mm
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- AWG soft AWG soft
- 12
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 14 mm
- Length Length
- 160 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 15 kg
- Head width Head width
- 16 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
High-leverage diagonal cutting pliers series Evolution
Article image
Article description
Bevel
Head type/size
Max Ø soft
Head shape
Degree of bending
Price
Compare
mini bevel
small
2.05 mm
angled
27 °
without bevel
small
2.05 mm
angled
27 °
mini bevel
regular
1.29 mm
angled
27 °
without bevel
regular
1.29 mm
angled
27 °
without bevel
regular
1.02 mm
angled
27 °
mini bevel
small
2.59 mm
angled
27 °
without bevel
large
2.59 mm
angled
27 °
mini bevel
large
2.59 mm
angled
27 °
mini bevel
large
2.59 mm
angled
27 °
without bevel
large
2.05 mm
angled
27 °
