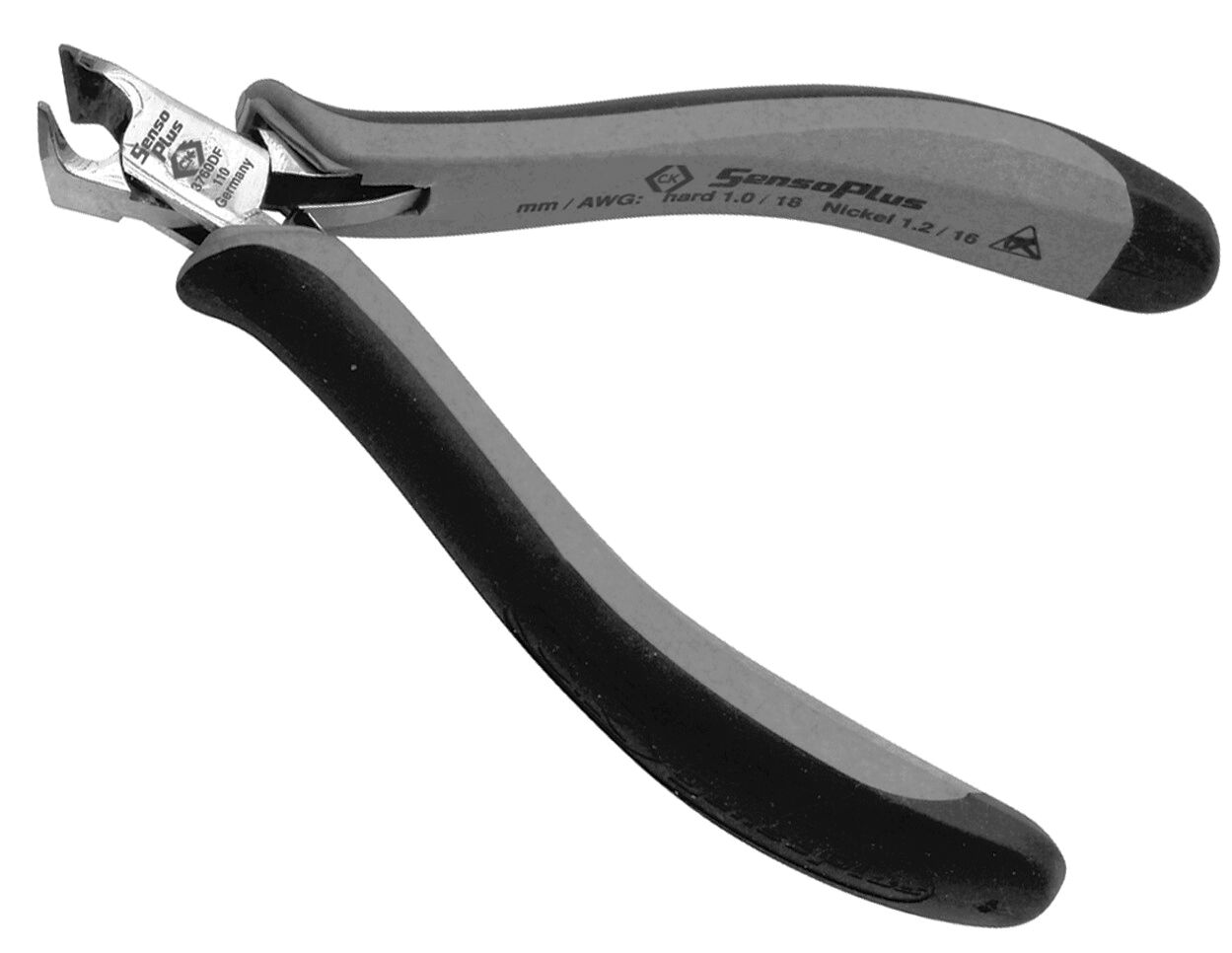

Oblique cutting pliers 3760 DF
Oblique cutting pliers 3760 DF
The CK diagonal cutter is a high-quality tool specifically designed for precision and durability. Made from special alloyed steel, drop-forged and hardened, this diagonal cutter offers exceptional strength and durability. The induction-hardened jaws and the precisely articulated joint construction ensure a permanent, adjustment-free jaw alignment and excellent long-term performance.The ergonomically shaped two-component handles increase comfort and provide excellent control during work. The high-gloss polished surface protects against corrosion and prevents chrome flaking, making maintenance easier. Additionally, the tool is fully ESD compliant according to IEC 61340-5.1 and 5.1, ensuring safe use on sensitive electronic components.
The diagonal cutter is suitable for various types of wire, with a maximum cutting capacity of 2.0 mm for soft wires, 1.02 mm for hard wires, and 0.6 mm for piano wires. With a length of 120 mm and a beveled head shape, this tool enables precise cuts in hard-to-reach areas, ideal for applications in electronics and precision mechanics.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- regular
- Head shape Head shape
- oblique
- Max Ø soft Max Ø soft
- 2.05 mm
- Max Ø hard Max Ø hard
- 1.02 mm
- Max Ø Piano Max Ø Piano
- 0.64 mm
- AWG hard AWG hard
- 18
- AWG Piano AWG Piano
- 22
- AWG soft AWG soft
- 12
- Length Length
- 120 mm
- Material Material
- steel
- Surface Surface
- polished
- ESD ESD
- yes
- Type of pliers Type of pliers
- oblique cutting pliers
- Version Version
- with opening spring
The current composition of shape and technology, completely convincing.
A flowing line adapted to the natural form of the hand in the right proportions.
The guarantee for a fatigue-free, controlled, safe and fast working in a level of quality that has been unknown up to now.
Ergonomics in an optimum design.
- Two-component handle with flush, soft thermoplastic material, slip-resistant and comfortable.
- Slip protection for a controlled and concentrated work.
- Captive, welded double leaf spring: guarantees an optimal function for the whole service life.
- Precise box joint: accurate guiding of the jaws without readjustment in case of a long service life.
- Mirror polish: optimal protection against corrosion without chrome, easy to clean.
- Inductive hardening of cutting edges: high hardness for a long durability.
The shapes of cutting edges and cutting performance
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Made in Germany
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
