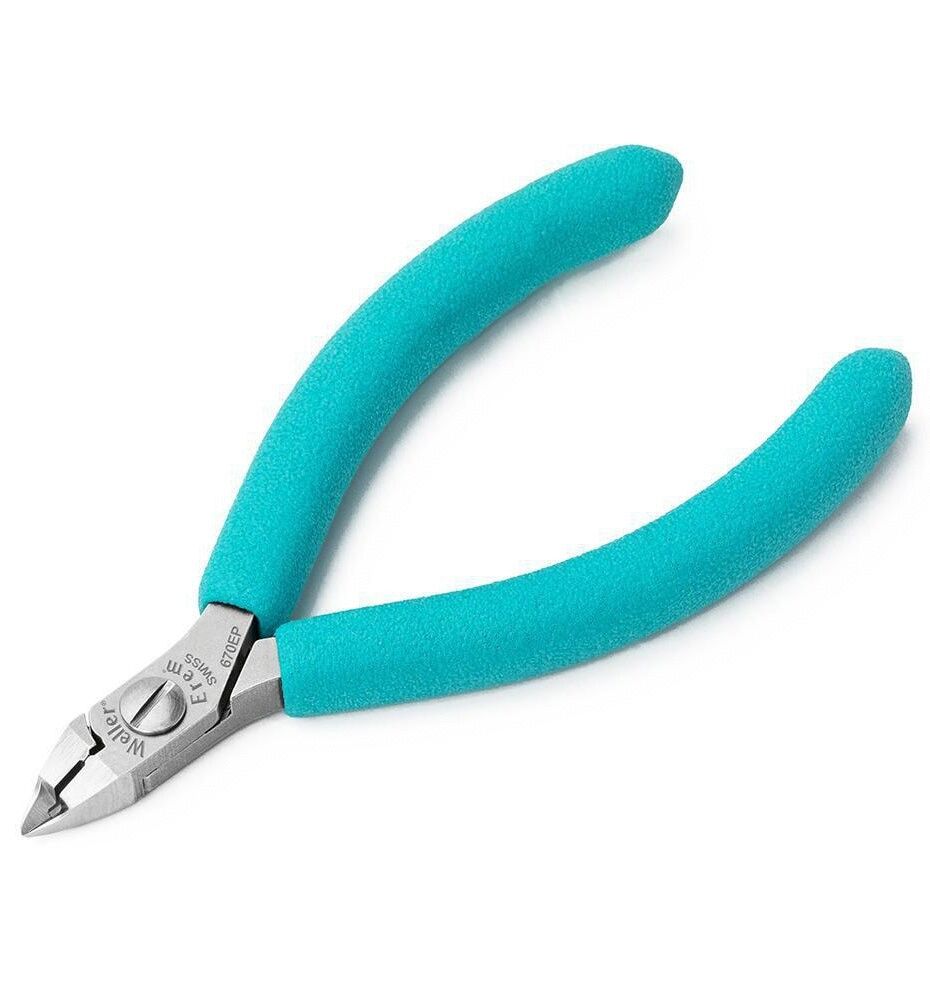

The image shows a pair of pliers with two long, wide handles in turquoise. The tips of the pliers are narrow and flat, perfect for gripping or cutting fine objects.

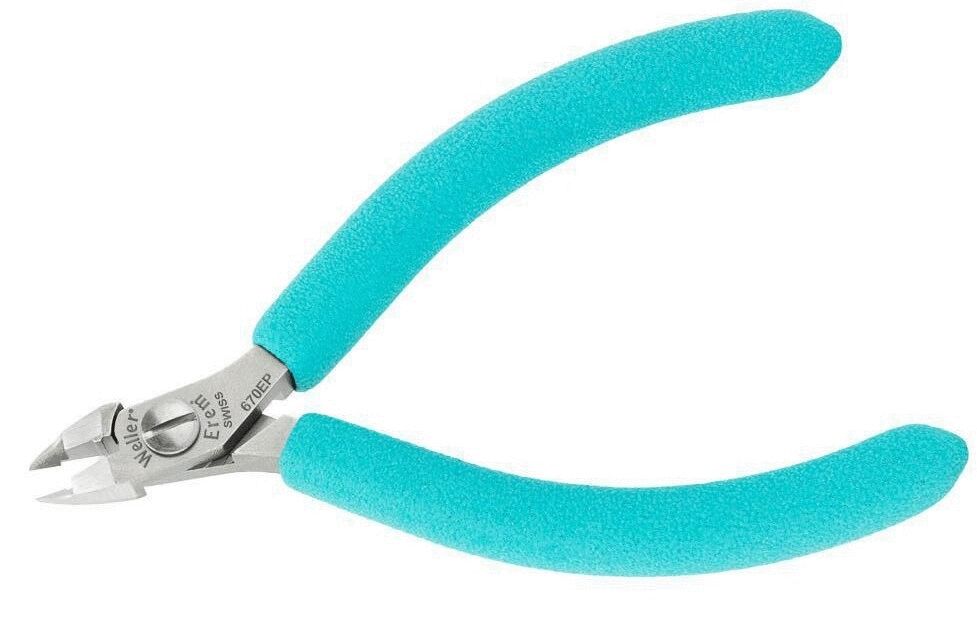

The image shows a side cutter with ergonomic, turquoise handles and a sharp, pointed metal cutting edge. It is handy and suitable for cutting wire or small objects.

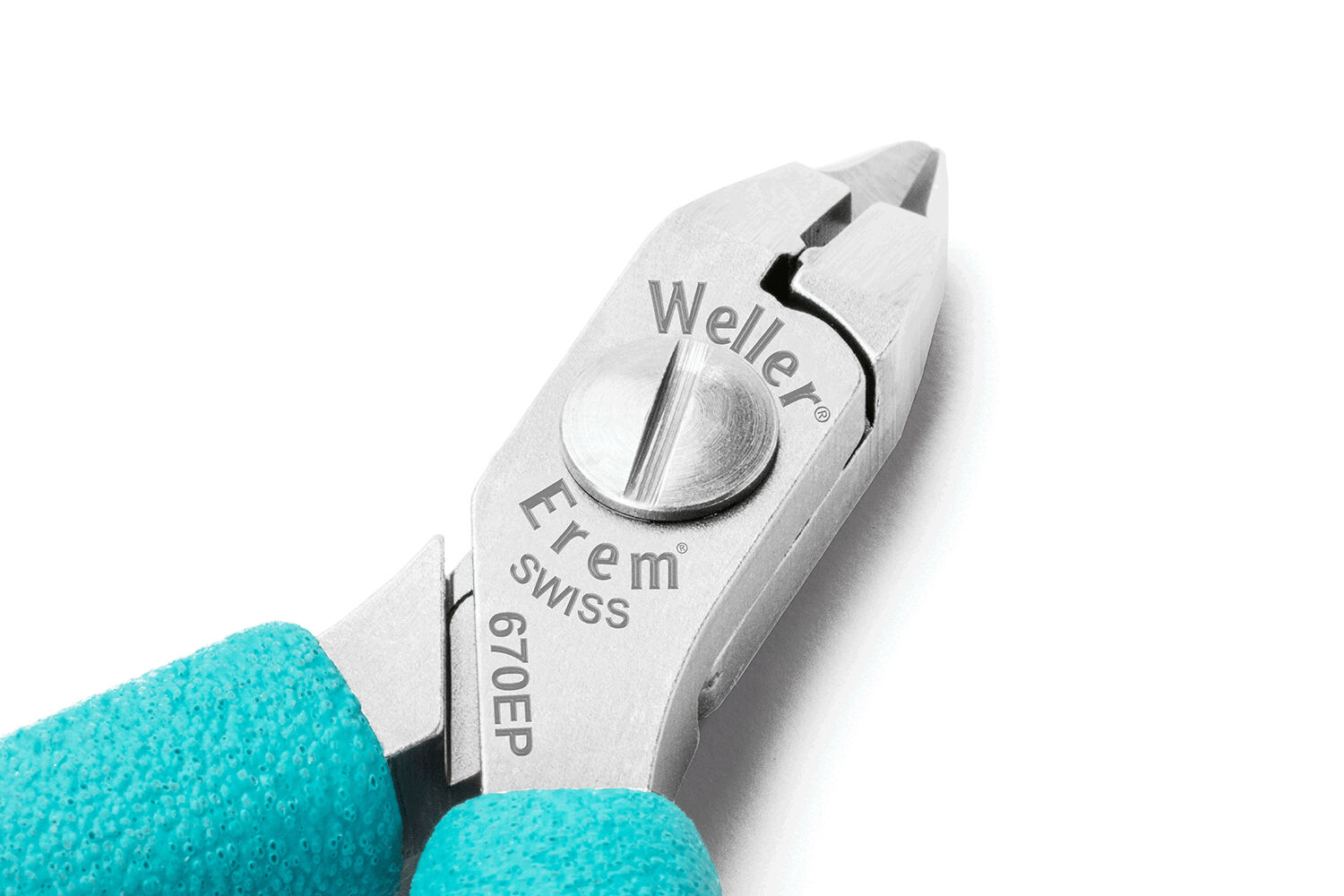

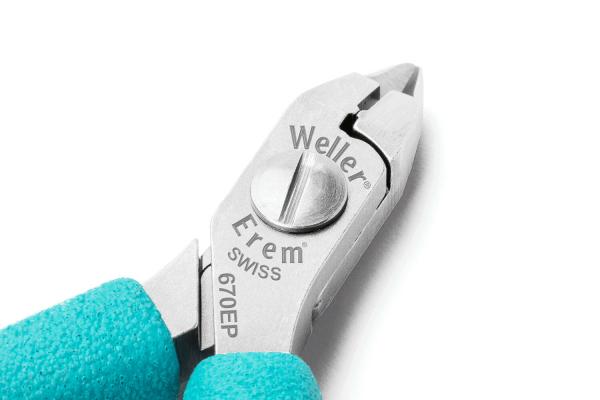

The image shows a small pair of pliers with pointed, sharp edges made of shiny silver metal. The handle is in a light turquoise blue. There are markings for the manufacturer on the top of the pliers.

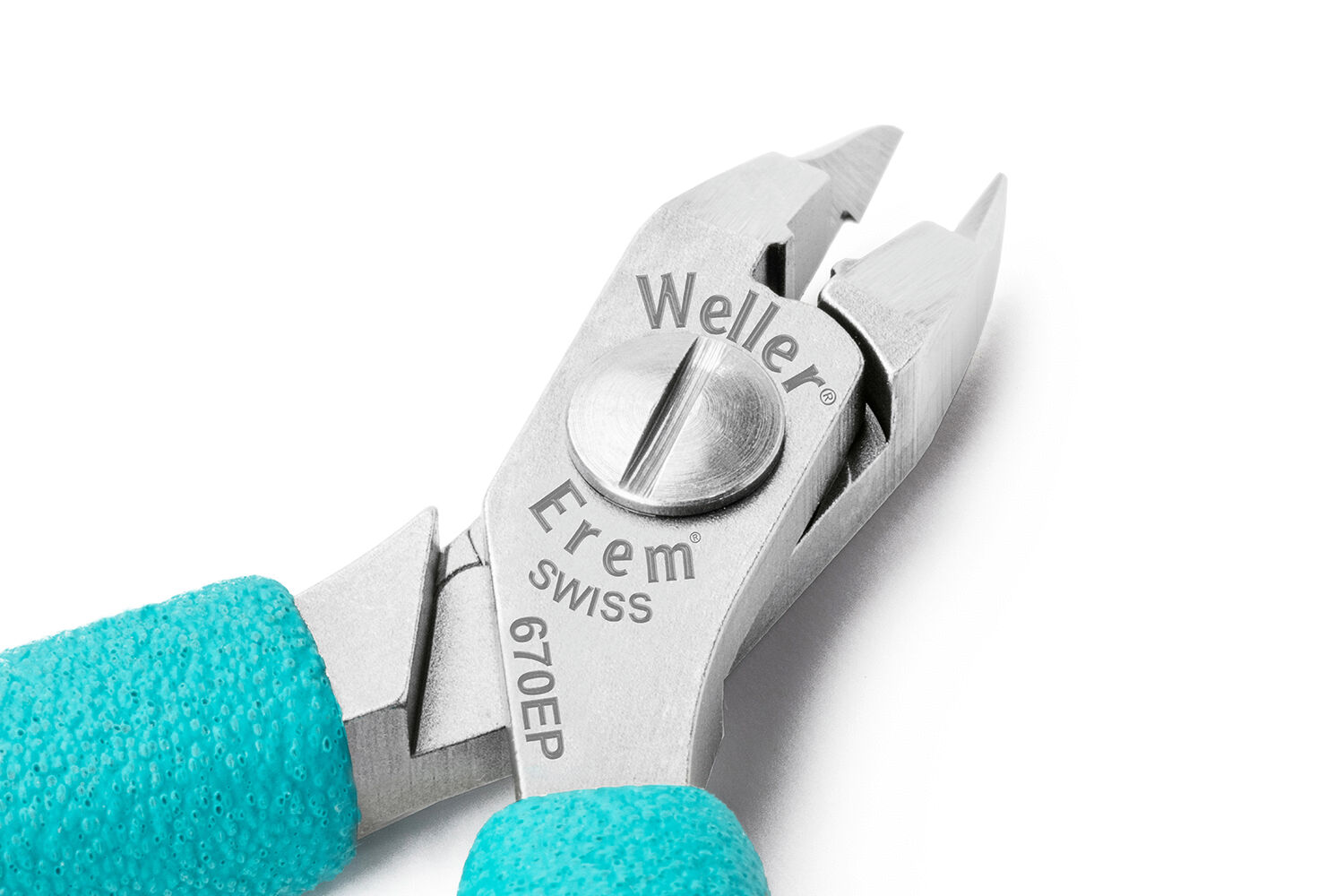

The image shows a small, silver pair of pliers with a round handle made of turquoise rubber. The pliers have a sharp tip and are suitable for precise tasks.

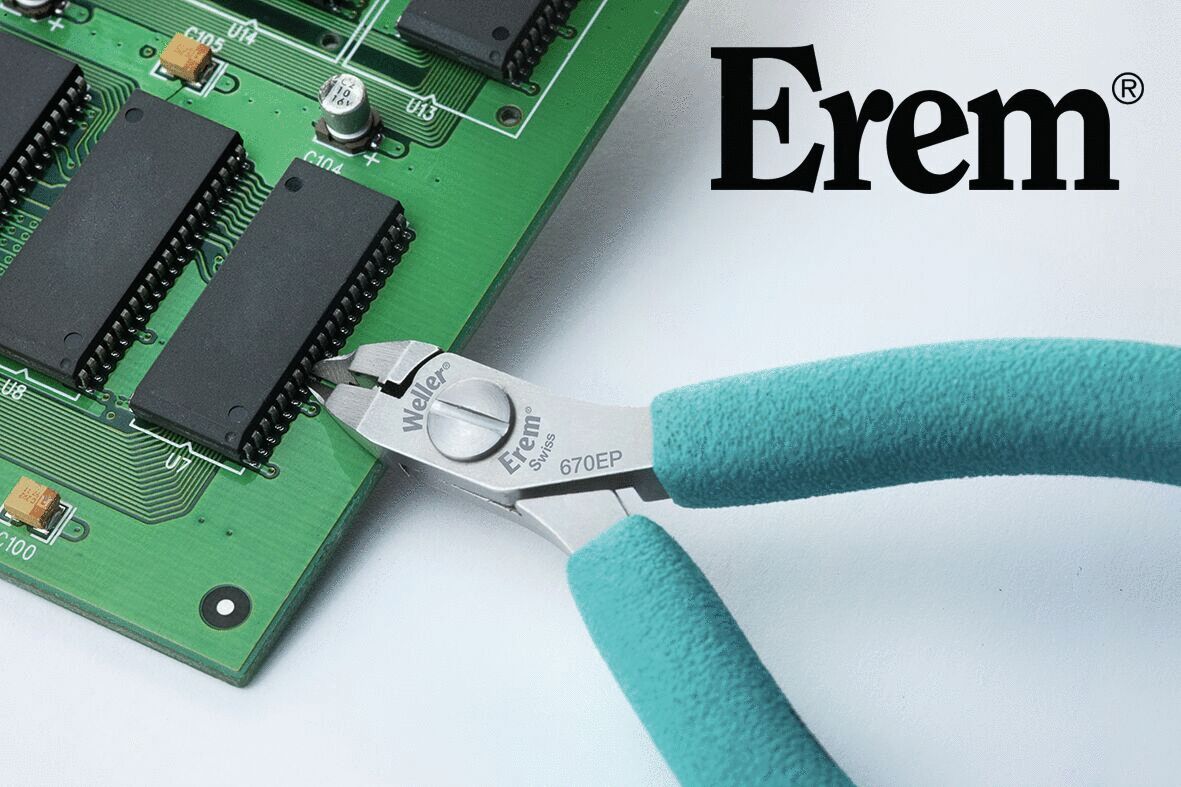

The image shows a green circuit board with black chips. Nearby, there is a pair of pliers with turquoise handles, used for cutting. In the upper right corner, the "Erem" logo is visible.
Preview: The image shows a pair of pliers with two long, wide handles in turquoise. The tips of the pliers are narrow and flat, perfect for gripping or cutting fine objects.
Preview: The image shows a side cutter with ergonomic, turquoise handles and a sharp, pointed metal cutting edge. It is handy and suitable for cutting wire or small objects.
Preview: The image shows a small pair of pliers with pointed, sharp edges made of shiny silver metal. The handle is in a light turquoise blue. There are markings for the manufacturer on the top of the pliers.
Preview: The image shows a small, silver pair of pliers with a round handle made of turquoise rubber. The pliers have a sharp tip and are suitable for precise tasks.
Preview: The image shows a green circuit board with black chips. Nearby, there is a pair of pliers with turquoise handles, used for cutting. In the upper right corner, the "Erem" logo is visible.
Tip cutting pliers 670EP
(Product No.: 670EP)
The image shows a pair of pliers with two long, wide handles in turquoise. The tips of the pliers are narrow and flat, perfect for gripping or cutting fine objects.
The image shows a side cutter with ergonomic, turquoise handles and a sharp, pointed metal cutting edge. It is handy and suitable for cutting wire or small objects.
The image shows a small pair of pliers with pointed, sharp edges made of shiny silver metal. The handle is in a light turquoise blue. There are markings for the manufacturer on the top of the pliers.
The image shows a small, silver pair of pliers with a round handle made of turquoise rubber. The pliers have a sharp tip and are suitable for precise tasks.
The image shows a green circuit board with black chips. Nearby, there is a pair of pliers with turquoise handles, used for cutting. In the upper right corner, the "Erem" logo is visible.
Mobile Preview: The image shows a pair of pliers with two long, wide handles in turquoise. The tips of the pliers are narrow and flat, perfect for gripping or cutting fine objects.
Mobile Preview: The image shows a side cutter with ergonomic, turquoise handles and a sharp, pointed metal cutting edge. It is handy and suitable for cutting wire or small objects.
Mobile Preview: The image shows a small pair of pliers with pointed, sharp edges made of shiny silver metal. The handle is in a light turquoise blue. There are markings for the manufacturer on the top of the pliers.
Mobile Preview: The image shows a small, silver pair of pliers with a round handle made of turquoise rubber. The pliers have a sharp tip and are suitable for precise tasks.
Mobile Preview: The image shows a green circuit board with black chips. Nearby, there is a pair of pliers with turquoise handles, used for cutting. In the upper right corner, the "Erem" logo is visible.
Notice

Tip cutting pliers 670EP

Tip cutting pliers 670EP

dpvlink:
2397
Bevel:
without bevel
Head type/size:
small
Max Ø soft:
0.58 mm
Max Ø medium:
0.48 mm
Head shape:
angled
Properties:
Further product information

available available
91,90 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Tip cutting pliers 670EP

The Weller Erem 670EP precision cutter is distinguished by its high precision and versatility, ideal for use in microelectronics and cutting SMD and micro casing contacts. This model from the 600 Micro series offers various head shapes, specifically designed for access in hard-to-reach areas. The cutter is made of high-quality tool steel and features cutting edges hardened to over 60 HRc, ensuring long life and re-sharpenability.
With a head width of 9 mm and a jaw length of 10 mm, the angled head allows for precise cuts even on very small components. The total length is 110 mm, and the device is ESD safe, with a transition resistance between 10^5 and 10^9 Ohm according to MIL standard, making it safe for electrostatically sensitive parts. A patented opening system integrates the springs invisibly and prevents injury risks. Additionally, the double self-locking screw joint minimizes wear, and the "Stop! Limit system" prevents the blades from crossing.
An optional wire holder is available, which protects against eye injuries and prevents the destruction of assemblies by uncontrolled detached cutting debris. The 670EP precision cutter is thus an excellent choice for professionals who require the highest quality and precision in electronics manufacturing and maintenance.
Bevel
Bevel
without bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
0.58 mm
Max Ø medium
Max Ø medium
0.48 mm
Head shape
Head shape
angled
AWG medium
AWG medium
25
AWG soft
AWG soft
23
Head thickness
Head thickness
6 mm
Length
Length
110 mm
Material
Material
Tool steel
ESD
ESD
yes
Head width
Head width
9 mm
Jaw length
Jaw length
10 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 486
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Bevel
Head type/size
Max Ø soft
Max Ø medium
Max Ø hard
Head shape
Price
Compare
612N - Diagonal cutting pliers Micro 612N
612N
Diagonal cutting pliers Micro 612N
with bevel
small
1.29 mm
0.78 mm
0.48 mm
oval
67,95 EUR
622N - Diagonal cutting pliers Micro 622N
622N
Diagonal cutting pliers Micro 622N
without bevel
small
1.29 mm
0.78 mm

oval
65,10 EUR
622NA - Diagonal cutting pliers Micro 622NA
622NA
Diagonal cutting pliers Micro 622NA
without bevel
small
1.02 mm
0.68 mm

oval
67,00 EUR
622NB - Diagonal cutting pliers Micro 622NB
622NB
Diagonal cutting pliers Micro 622NB
without bevel
small
0.78 mm
0.57 mm

snipe nose
65,10 EUR
632N - Diagonal cutting pliers Micro 632N
632N
Diagonal cutting pliers Micro 632N
without bevel (flush cut)
small
1.29 mm
0.68 mm

oval
70,85 EUR
670EP - Tip cutting pliers 670EP
670EP
Tip cutting pliers 670EP
without bevel
small
0.58 mm
0.48 mm

angled
91,90 EUR
