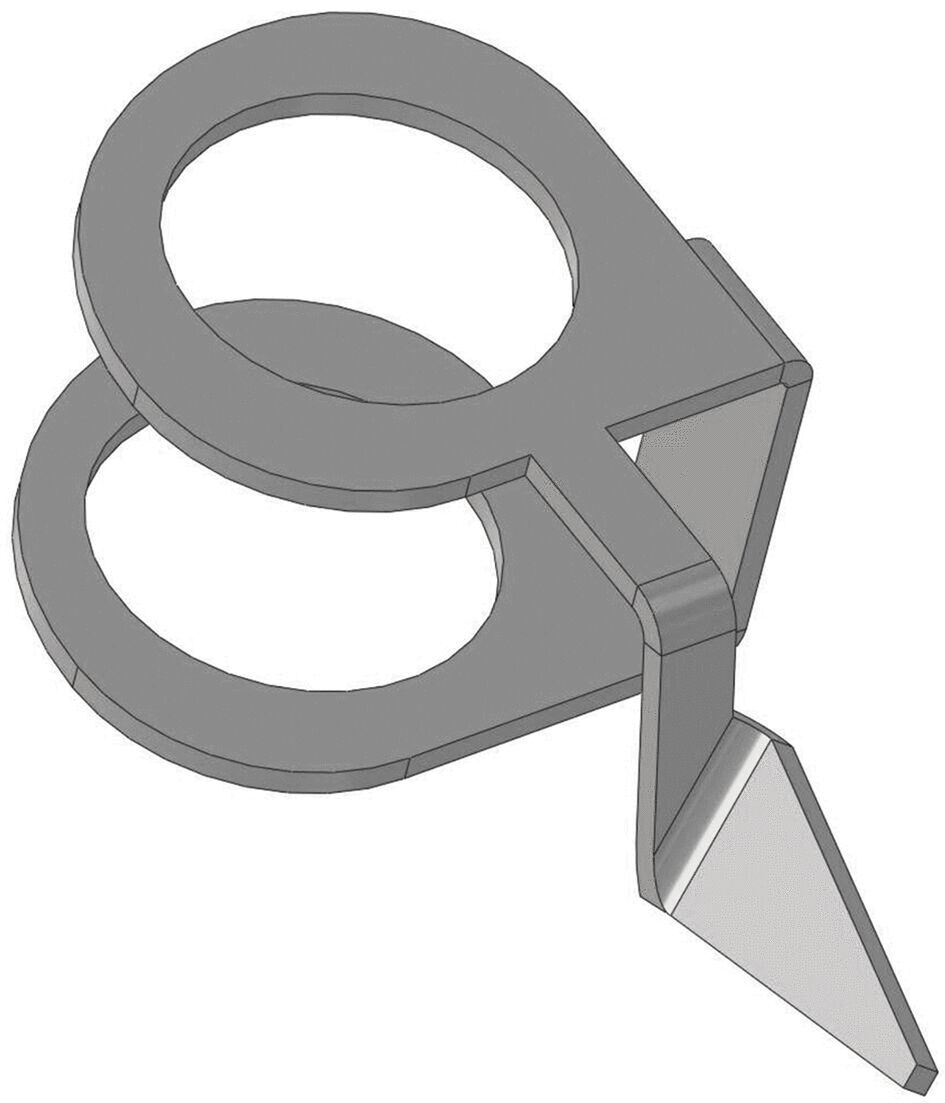

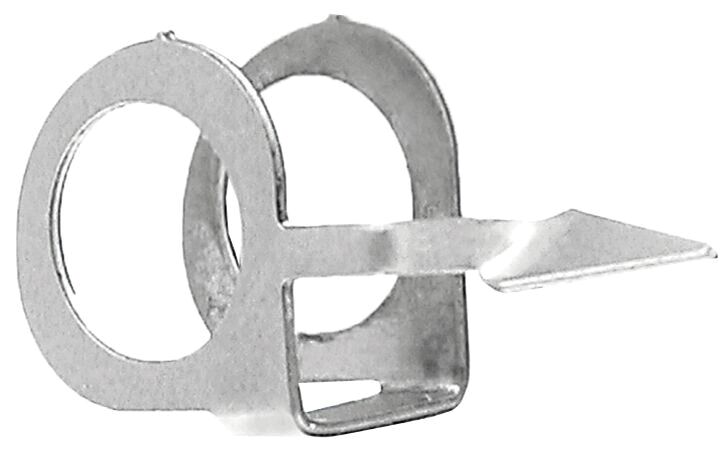

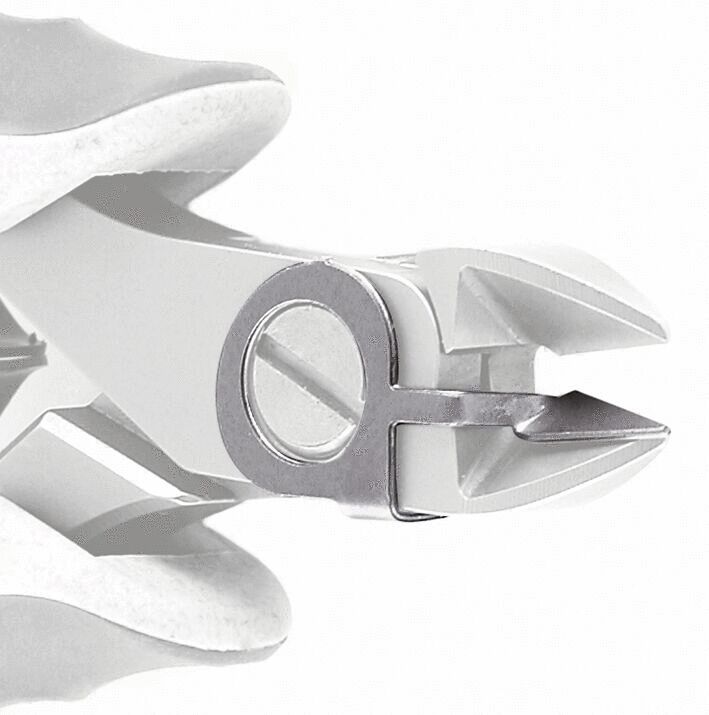

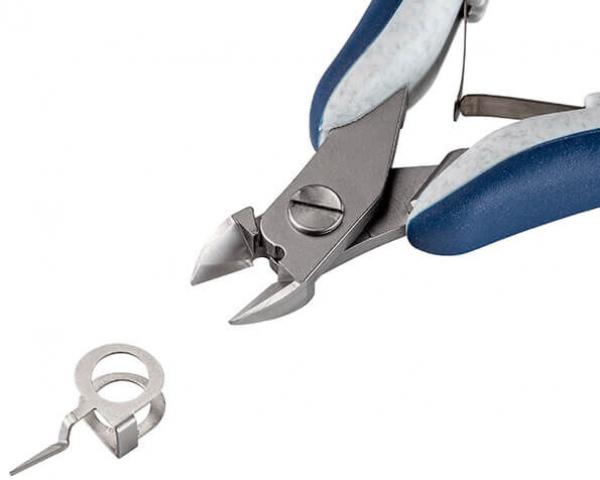

The wire clamp / safety spring WLC100, suitable for side cutter types 5140/5141/5142, 5340/5341/5342, and 5540/5541/5542, is a high-precision accessory for cutting tools. Made from sandblasted stainless steel, this wire clamp provides a sturdy and durable solution for demanding applications. The compact design, with a width of 11 mm and a height of 7.5 mm, ensures easy integration into existing tools.
Technical Specifications:
- Material: Stainless Steel
- Finish: Sandblasted
- Width: 11 mm
- Height: 7.5 mm
- Weight: 1 g
- Dimensions: A = 23 mm, B = 11.0 mm, C = 7.5 mm
- Head Type/Size: Small
- ESD: No
Item Number: I-WLC100
Details
- Height [mm] Height [mm]
- 7.5
- Width [mm] Width [mm]
- 11
- A [mm] A [mm]
- 23
- B [mm] B [mm]
- 11.0
- C [mm] C [mm]
- 7.5
- Material Material
- steel
- Surface Surface
- sandblastered
- ESD ESD
- no
- Head type/size Head type/size
- small
- Weight Weight
- 1 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Height [mm] | Width [mm] | A [mm] | B [mm] | C [mm] | Material | Surface | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
I-WLC125 Wire clamp / safety spring | 7.5 | 12.3 | 24 | 12.3 | 7.5 | steel | sandblastered | 9,05 EUR | |
|
I-WLC100 Wire clamp / safety spring | 7.5 | 11 | 23 | 11.0 | 7.5 | steel | sandblastered | 9,05 EUR | |
