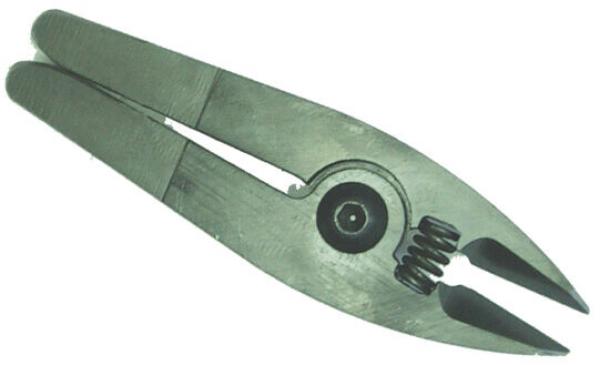

The image shows a pair of pliers with two long, flat, metallic handles. The jaws of the pliers are pointed and cut at an angle, with a spring in the middle for opening.

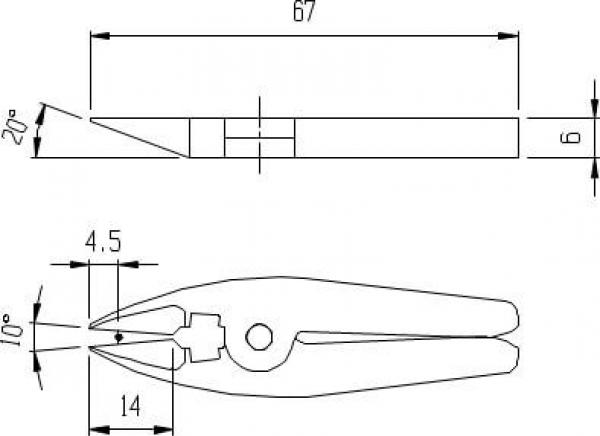

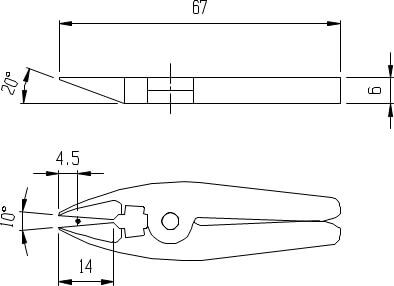

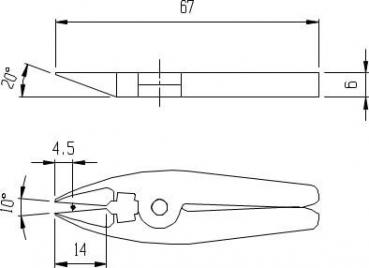

The image displays a technical drawing of a tool, likely a pair of pliers. It features a pointed and a broad side, with specified dimensions and angles.
Preview: The image shows a pair of pliers with two long, flat, metallic handles. The jaws of the pliers are pointed and cut at an angle, with a spring in the middle for opening.
Preview: The image displays a technical drawing of a tool, likely a pair of pliers. It features a pointed and a broad side, with specified dimensions and angles.
Replacement blade for cutting head TR 6000
(Product No.: CL-6000)
The image shows a pair of pliers with two long, flat, metallic handles. The jaws of the pliers are pointed and cut at an angle, with a spring in the middle for opening.
The image displays a technical drawing of a tool, likely a pair of pliers. It features a pointed and a broad side, with specified dimensions and angles.
Mobile Preview: The image shows a pair of pliers with two long, flat, metallic handles. The jaws of the pliers are pointed and cut at an angle, with a spring in the middle for opening.
Mobile Preview: The image displays a technical drawing of a tool, likely a pair of pliers. It features a pointed and a broad side, with specified dimensions and angles.
Notice / Inquire

Replacement blade for cutting head TR 6000

Replacement blade for cutting head TR 6000

dpvlink:
15438
Further product information

Delivery time! Delivery time!
82,90 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Replacement blade for cutting head TR 6000

The replacement cutting blade for the TR 6000 cutting head from Piergiacomi is specifically designed for use in technical and industrial environments. It features a bevel (facet) that allows it to efficiently cut both hard and soft steel wires. The maximum cutting capacity of the blade for soft materials, such as copper wire and cables, is a diameter of 1.6 mm (equivalent to 14 AWG).
Thanks to the precise execution with a bevel, the blade provides a normal cut, which is universally applicable for various types of wire. Additionally, the option without a bevel enables a flush cut, ideal for extremely sharp cuts on soft steel wires. This makes the replacement cutting blade a versatile tool for professional applications in electronics manufacturing and other areas where precise cuts are required.
Max Ø soft
Max Ø soft
1,63 mm
Bevel
Bevel
with bevel
